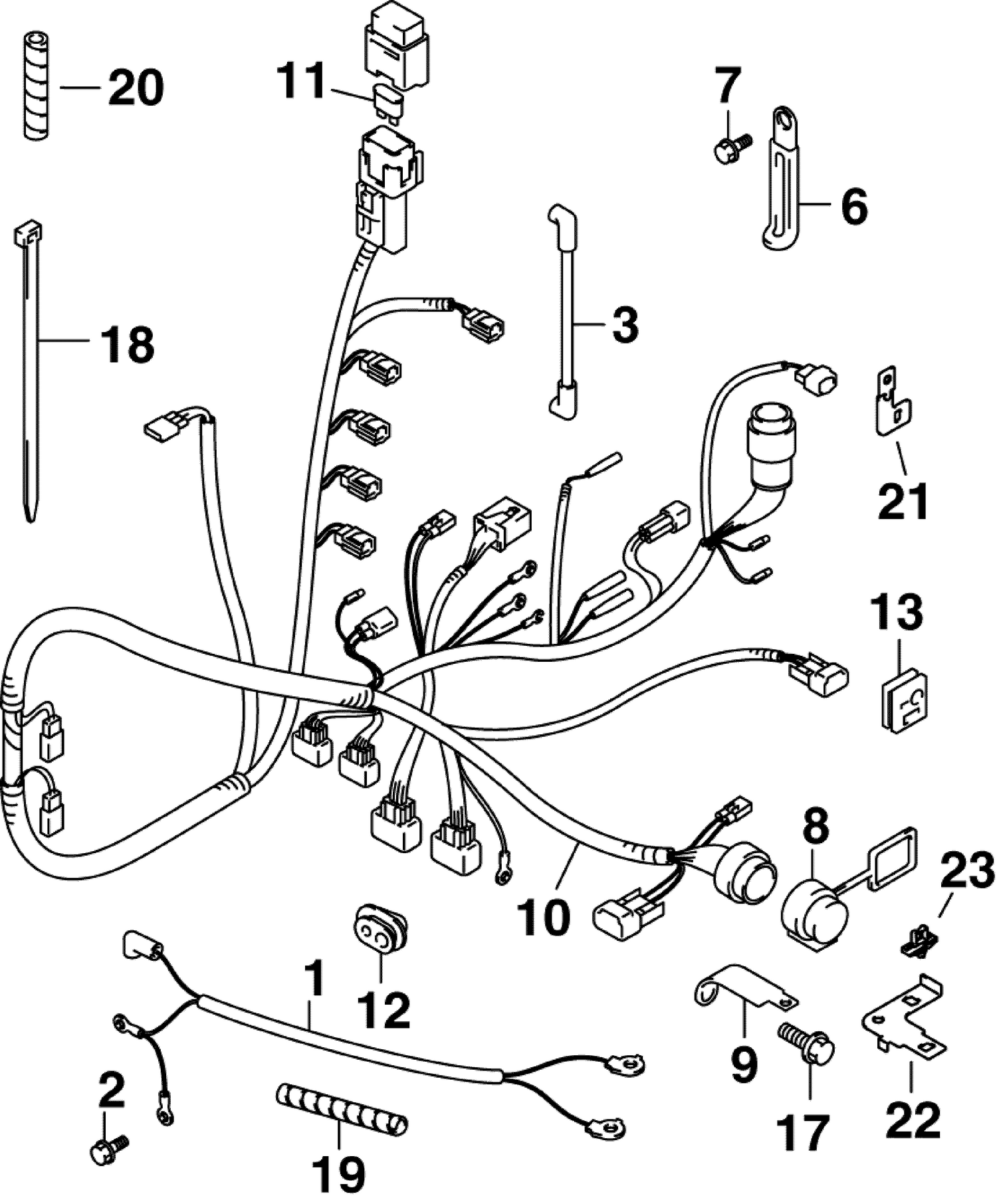

ELECTRICAL HARNESS
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5032451 | CABLE, Battery |
| 3 | 5030807 | CABLE Assy, Terminal to relay |
| 6 | 5030588 | CLAMP |
| 8 | 5030800 | CAP |
| 9 | 5030820 | BRACKET, Connector |
| 10 | 5036724 | HARNESS Assy, Wiring |
| 12 | 5034513 | GROMMET |
| 13 | 5030818 | GROMMET, Battery cable |
| 18 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 5030347. |
| 19 | 5031119 | PROTECTOR |
| 21 | 5034515 | BRACKET |
| 22 | 5036725 | BRACKET, Service connector |
