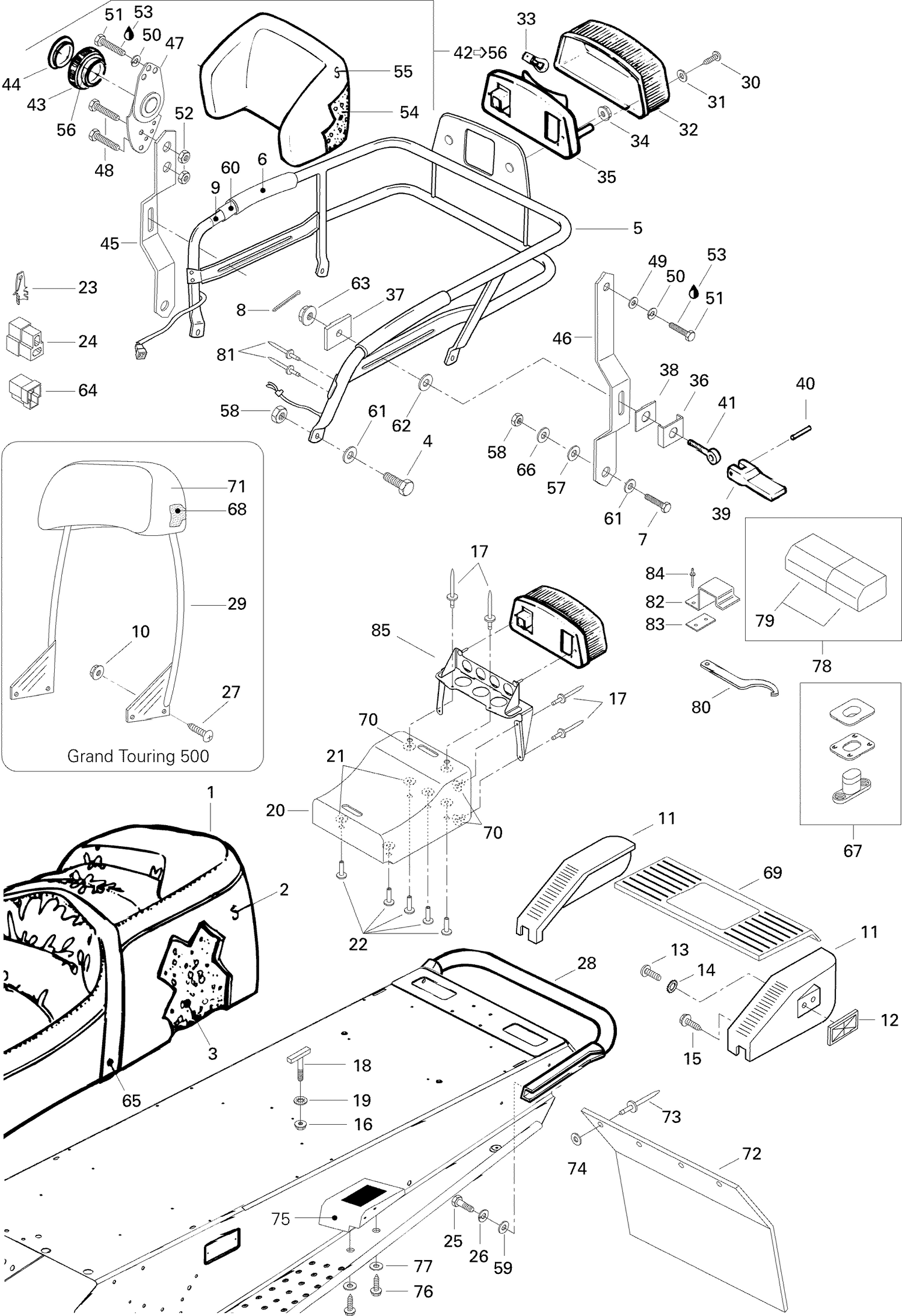

09- Seat 670SE

09- Seat 670SE

Parts (82)

RefPart NumberDescription
1 Not Available As Spare Part - Seat Ass'y, (2 Passengers)
2 414966903 Seat Cover
3 414932902 Foam Seat
4 732601186 Hex. Screw M8 x 20
5 517284200 Rack Ass’y
6 414942700 Grip
7 732601175 Screw M8 x 25
8 414108300 Hair Pin
9 414988700 Reflective Sheet
10 XXX Not Available As Spare Parts
12 414510100 REFLECTOR, RED - Call your local BRP dealership
13 208651041 PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065.
14 224151101 WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
15 365901100 HEX. SCREW 12 X 3/4 - Call your local BRP dealership
16 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045.
17 XXX Not Available As Spare Parts
19 732610072 Push Nut
20 572051200 Rear Trunk
21 517225900 Flat Washer
22 390906800 Pop Rivet 3/16"
23 409210000 MALE TERMINAL - Call your local BRP dealership This part replaces 409206100.
24 409204500 MALE HOUSING - Call your local BRP dealership
25 207182044 Hex. Screw M8 X 20 This part replaces 222082065.
26 234181401 Lock Washer 8 mm This part replaces 224781140.
27 XXX Not Available As Spare Parts
28 517272510 Rear Bumper
29 XXX Not Available As Spare Parts
30 209632540 Phillips Tapping Screw M3.9 X 25 This part replaces 414516300.
31 414516400 Washer - Call your local BRP dealership
32 414513700 Lens
33 520000758 Bulb This part replaces 410504100.
34 233251434 Flange Elastic Nut M5 This part replaces 228751045.
35 414942500 Taillamp Housing
36 517257300 Guide
37 570027400 Rubber Shim
38 517251300 SPACER - Call your local BRP dealership
39 572038200 Lock Lever
40 414821400 Pin
41 517257600 Eye Bolt
43 414820900 TILLER HANDLE - Call your local BRP dealership
44 414821000 Cap
45 517274900 RH Arm
46 517275000 LH Arm
47 414813300 Recliner
48 207182544 Hex. Screw M8 X 25 This part replaces 222082565.
49 224081201 FLAT WASHER - Call your local BRP dealership
50 234181401 Lock Washer 8 mm This part replaces 224781140.
51 207182044 Hex. Screw M8 X 20 This part replaces 222082065.
52 232581414 Hex. Elastic Stop Nut M8 This part replaces 228581045.
53 293800060 Loctite 243, 10 ml This part replaces 413703000.
54 414821200 Backrest Foam
55 414977503 Backrest Cover
56 415015500 STRIP - Call your local BRP dealership
57 414819600 Washer
58 232581414 Hex. Elastic Stop Nut M8 This part replaces 228581045.
59 234081410 Flat Washer 8 mm This part replaces 224081171.
60 515175573 Heating Grip This part replaces 410110000.
61 234281474 Conical Spring Washer M8 This part replaces 732900030.
62 414819500 Washer
63 517250000 Nut
64 409204200 FEMALE HOUSING - Call your local BRP dealership
65 414985400 Holding Strap
66 234082410 Flat Washer 8 mm This part replaces 224080251.
67 414728000 SEAT BUCKLE - Call your local BRP dealership
68 XXX Not Available As Spare Parts
69 XXX Not Available As Spare Parts
70 XXX Not Available As Spare Parts
71 XXX Not Available As Spare Parts
72 572076400 Snow Guard
73 293150100 Pop Rivet 3/16" This part replaces 390908000.
74 517225900 Flat Washer
75 414975300 RH Rear Footrest
75 414975400 LH Rear Footrest
76 365901100 HEX. SCREW 12 X 3/4 - Call your local BRP dealership
77 234061410 Flat Washer 6 mm This part replaces 224061151.
78 529027900 Tool Kit
79 708200043 TOOLS BOX - Call your local BRP dealership This part replaces 572036310.
80 529019000 ADJUSTER WRENCH (REAR SUSPENSION) - Call your local BRP dealership
81 390403600 Pop Rivet 3/16
82 518301100 Retainer Plate
83 518306000 Reinforcement
84 390402200 Pop Rivet 3/16"
