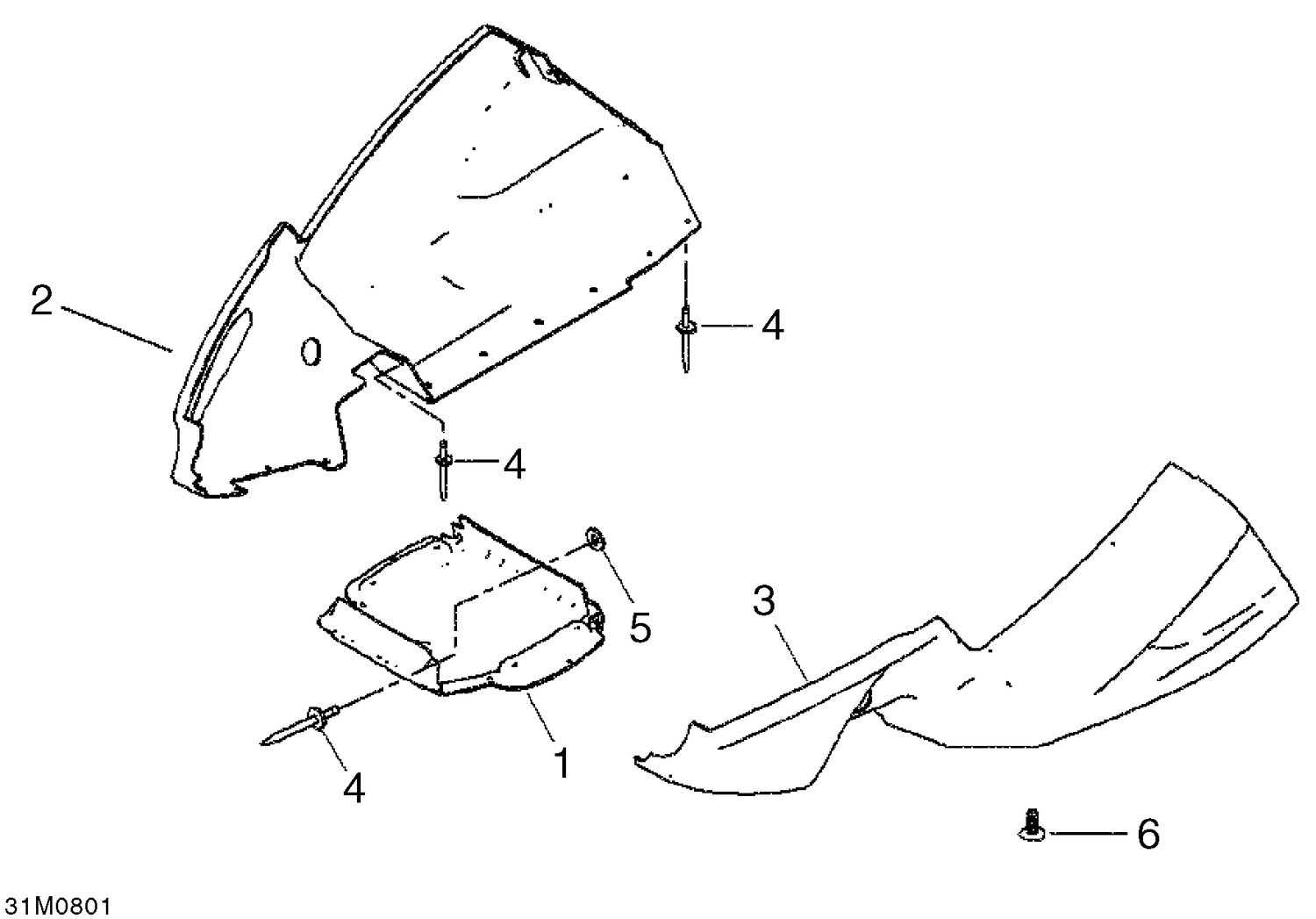

09- Bottom Pan

09- Bottom Pan

Parts (5)

RefPart NumberDescription
1 502006660 Nose (Yellow)
2 502006661 RH Bottom Pan (Yellow)
3 502006662 LH Bottom Pan (Yellow)
4 293150108 Pop Rivet 3/16” This part replaces 293150108.
5 234051410 Flat Washer M5
