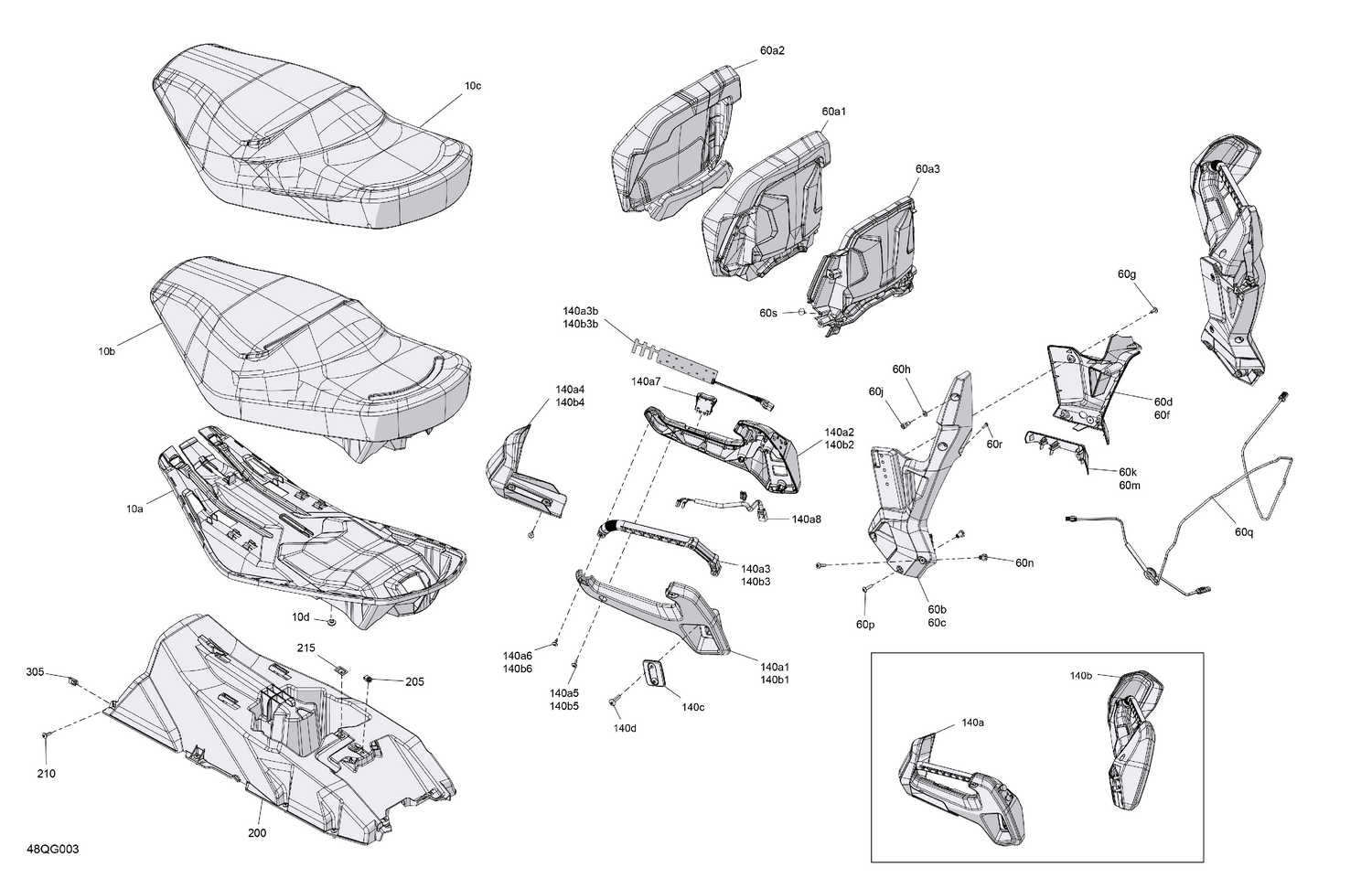

07- Body - Seat
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510008286 | Seat Base |
| 10b | 510008157 | Seat Foam |
| 10d | 605452114 | Plug |
| 60a1 | 510008180 | Backrest Foam |
| 60a2 | 510006905 | Backrest Cover |
| 60a3 | 510006574 | Backrest Support |
| 60b | 510006479 | LH Arm |
| 60c | 510006480 | RH Arm |
| 60d | 510006706 | LH Trim |
| 60f | 510006705 | RH Trim |
| 60g | 250000789 | Torx Truss M6X14 |
| 60h | 234080600 | Flat Washer M8, Stainless |
| 60j | 205081654 | Screw-Socket HD.DIN.912 |
| 60k | 510006169 | LH Base Cover |
| 60m | 510006170 | RH Base Cover |
| 60n | 511000822 | Insert |
| 60p | 250001000 | Torx-Truss M/S M6 X 25 |
| 60q | 515178490 | Seat Wiring Harness |
| 60r | 250000068 | Hex. Tapping Screw #8 X 5/8 |
| 60s | 414644300 | Black, Dart |
| 140a1 | 510006492 | LH Ext. Passenger Hand Hold |
| 140a2 | 510006527 | LH Int. Passenger Hand Hold |
| 140a3b | 515178576 | Heated Element |
| 140a4 | 510006495 | LH Passenger Handle Deflector |
| 140a5 | 250000889 | Screw M4 X 16 |
| 140a6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140a7 | 515178505 | Rocker Switch |
| 140a8 | 515178464 | Heated Grip Wiring Harness |
| 140b1 | 510006486 | RH Ext. Passenger Hand Hold |
| 140b2 | 510006487 | RH Int. Passenger Hand Hold |
| 140b3b | 515178576 | Heated Element |
| 140b4 | 510006489 | RH Passenger Handle Deflector |
| 140b5 | 250000889 | Screw M4 X 16 |
| 140b6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140c | 510006602 | Passenger Handle Trim |
| 140d | 250000753 | Torx Truss M/S M8 x 35 |
| 200 | 510007687 | Seat Anchorage |
| 205 | 250000958 | Panel Nut M5 X 0.8 |
| 210 | 250000984 | Torx Screw M6 X 20 |
| 215 | 517305109 | Plate |
