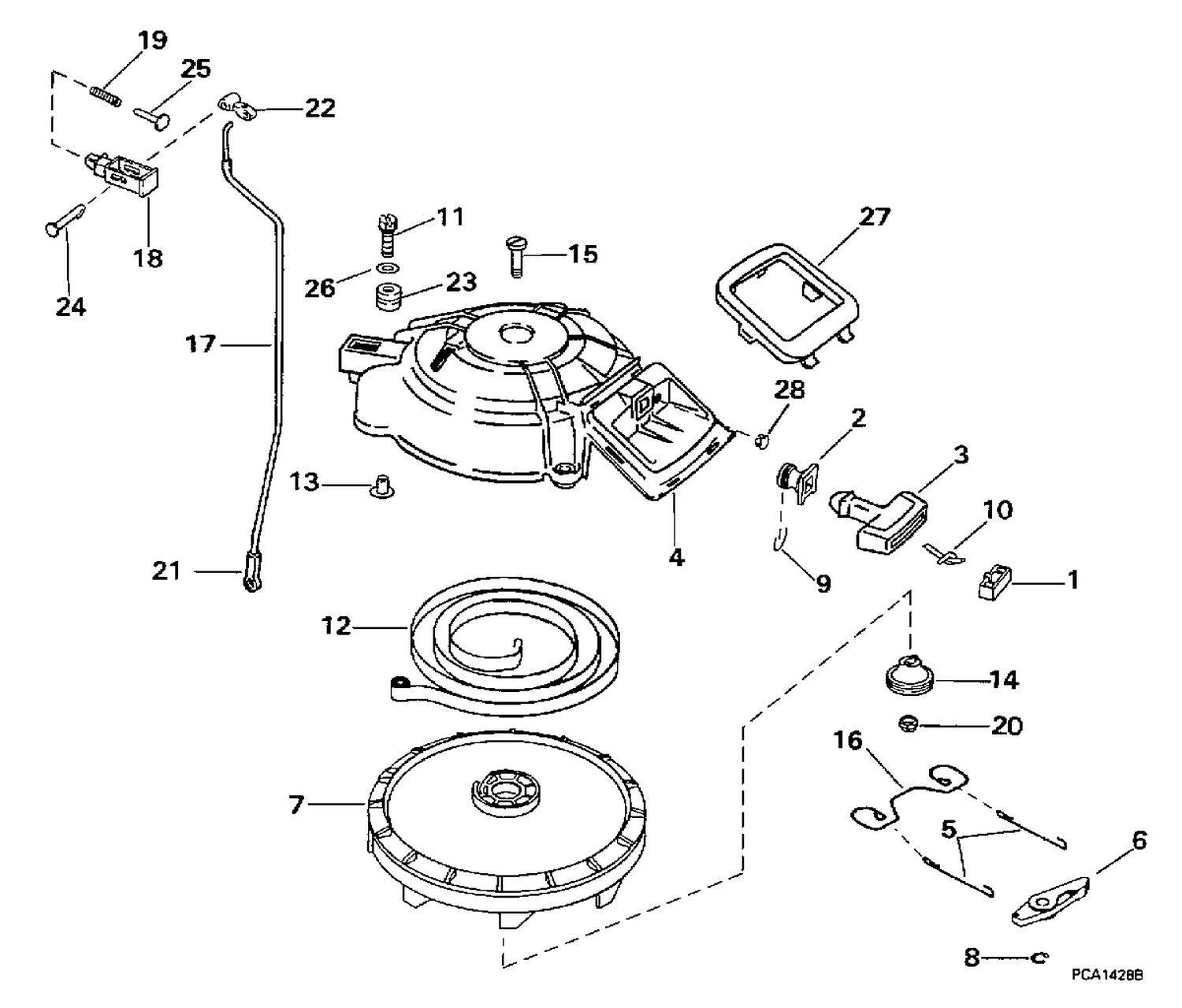

| Ref | Part Number | Description |
|---|
| 1 |
5000510 |
HANDLE ASSY., Starter This part replaces 0338507. |
| 2 |
0336148 |
GUIDE, Rope |
| 3 |
5000510 |
HANDLE ASSY., Starter This part replaces 0342465. |
| 4 |
0339819 |
HOUSING, Starter |
| 6 |
0203698 |
PAWL, Starter |
| 7 |
0436255 |
PULLEY & PIN, Starter |
| 9 |
0336110 |
RING, Retaining, guide |
| 11 |
0341736 |
SCREW, Starter housing, M6 |
| 14 |
0339038 |
SPINDLE |
| 16 |
0331970 |
FRICTION SPRING |
| 17 |
0341460 |
LINK, Lockout |
| 18 |
0338228 |
PLUNGER, Starter lockout |
| 19 |
0338229 |
SPRING, Plunger |
| 22 |
0338225 |
CAM, Starter lockout |
| 24 |
0339188 |
PIN, Cam, lockout |
| 25 |
0338227 |
TAPPET, Starter lockout |
| 27 |
0338240 |
SEAL, Housing to cover |
