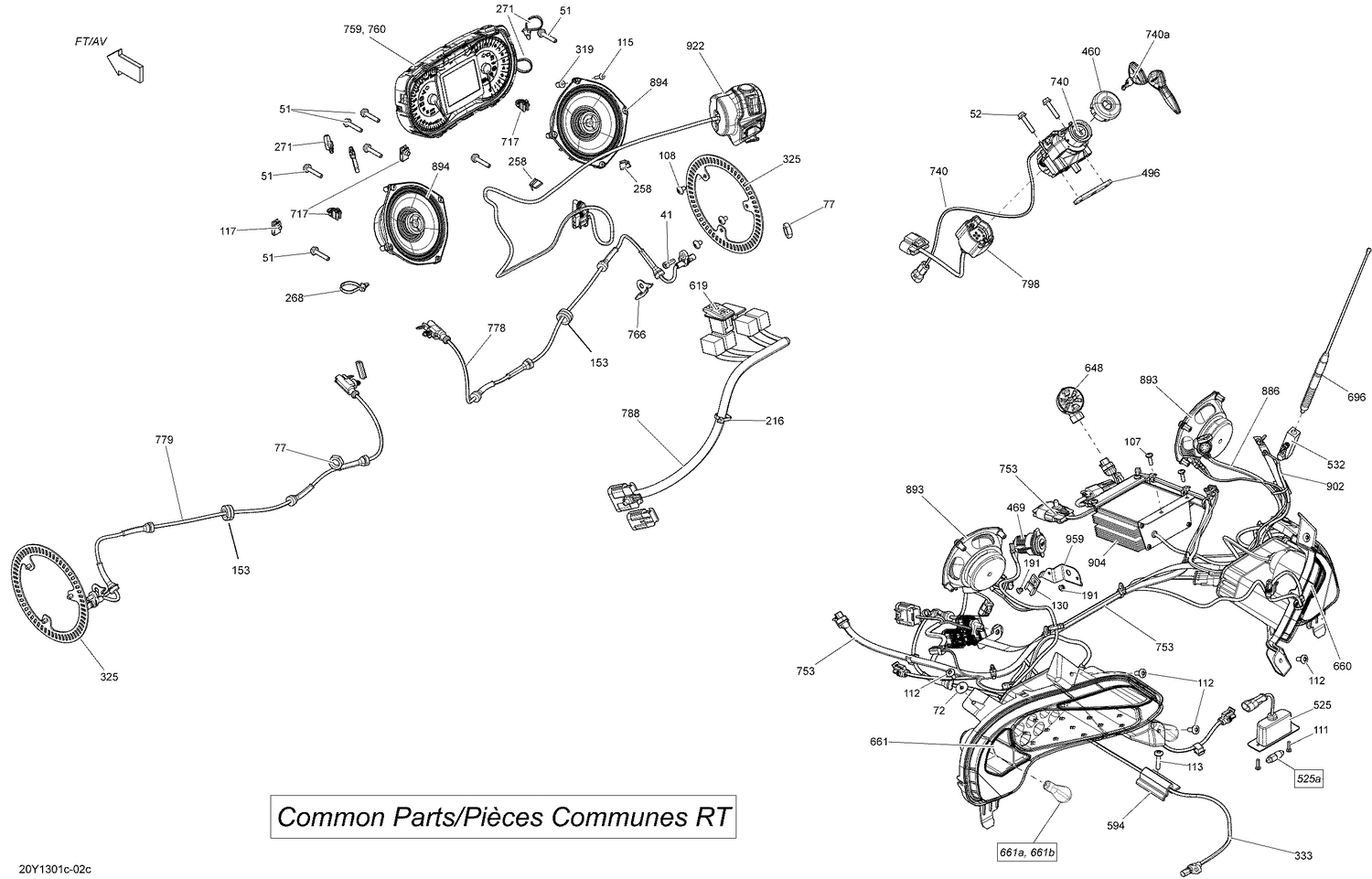

10- Electrical System Common Parts
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 41 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 51 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 52 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 72 | 224060201 | Flat Washer |
| 77 | 232170411 | Hex. Jam Nut M14 |
| 107 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 108 | 250000995 | Torx-truss M/s M6 X 10 This part replaces 250000210. |
| 111 | 250000287 | Flange Torx Screw K40 X 16 |
| 112 | 250000348 | Torx Truss Screw M6 X 16 |
| 113 | 250000842 | Stainless, Torx Screw M6 X 30 This part replaces 250000371. |
| 115 | 250000405 | TORX SCREW M4 X 20 - Call your local BRP dealership |
| 117 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 130 | 270000141 | Clip |
| 153 | 293720095 | Grommet |
| 191 | 390402400 | Pop Rivet 3/16" |
| 216 | 414115200 | Tie-Rap 180 mm |
| 258 | 414227300 | Clip |
| 268 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 271 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 319 | 705003635 | Well Rubber Nut M4 X 0.7 |
| 325 | 705601512 | Front Sensor Wheel This part replaces 705601191. |
| 333 | 706202361 | Speed Sensor This part replaces 706200560. |
| 460 | 710001194 | SWITCH COVER - Call your local BRP dealership |
| 469 | 710001248 | DC Outlet |
| 496 | 710001365 | Switch Support |
| 525 | 710001451 | License Light |
| 525a | 219800128 | Bulb |
| 532 | 710001532 | Antenna Support |
| 594 | 710002145 | Hose Support |
| 619 | 710002354 | Switch, Heat Grip |
| 648 | 710002464 | RH Passenger Switch Housing |
| 660 | 710002501 | RH Rear Tail Light |
| 661 | 710002502 | LH Rear Tail Light |
| 661a | 520000758 | Bulb |
| 661b | 219800122 | Flasher Bulb |
| 696 | 710002740 | Antenna |
| 717 | 710002896 | Tie-Rap Clip |
| 740 | 710002968 | Ignition Module Switch |
| 753 | 710003024 | CARGO HARNESS - Call your local BRP dealership |
| 760 | 415129349 | Lens |
| 766 | 710004861 | RH Support Wire This part replaces 710003090. |
| 778 | 219800456 | Kit Speed Sensor This part replaces 710003091. |
| 779 | 219800456 | Kit Speed Sensor This part replaces 710003091. |
| 788 | 710003110 | SWITCH HARNESS - Call your local BRP dealership |
| 798 | 710003112 | KIC PENTALOCK HARNESS - Call your local BRP dealership |
| 886 | 710003218 | CONNECTOR HARNESS, DIN - Call your local BRP dealership |
| 893 | 710003232 | Rear Speaker |
| 894 | 710003233 | Front Speaker |
| 902 | 710003249 | ANTENNA CABLE ASS'Y - Call your local BRP dealership |
| 904 | 219800399 | REBUILT RADIO MODULE 5V IPOD - Call your local BRP dealership This part replaces 710003552. |
| 922 | 710003921 | Switch Housing This part replaces 710003574. |
| 959 | 710003487 | PRS Bracket |
