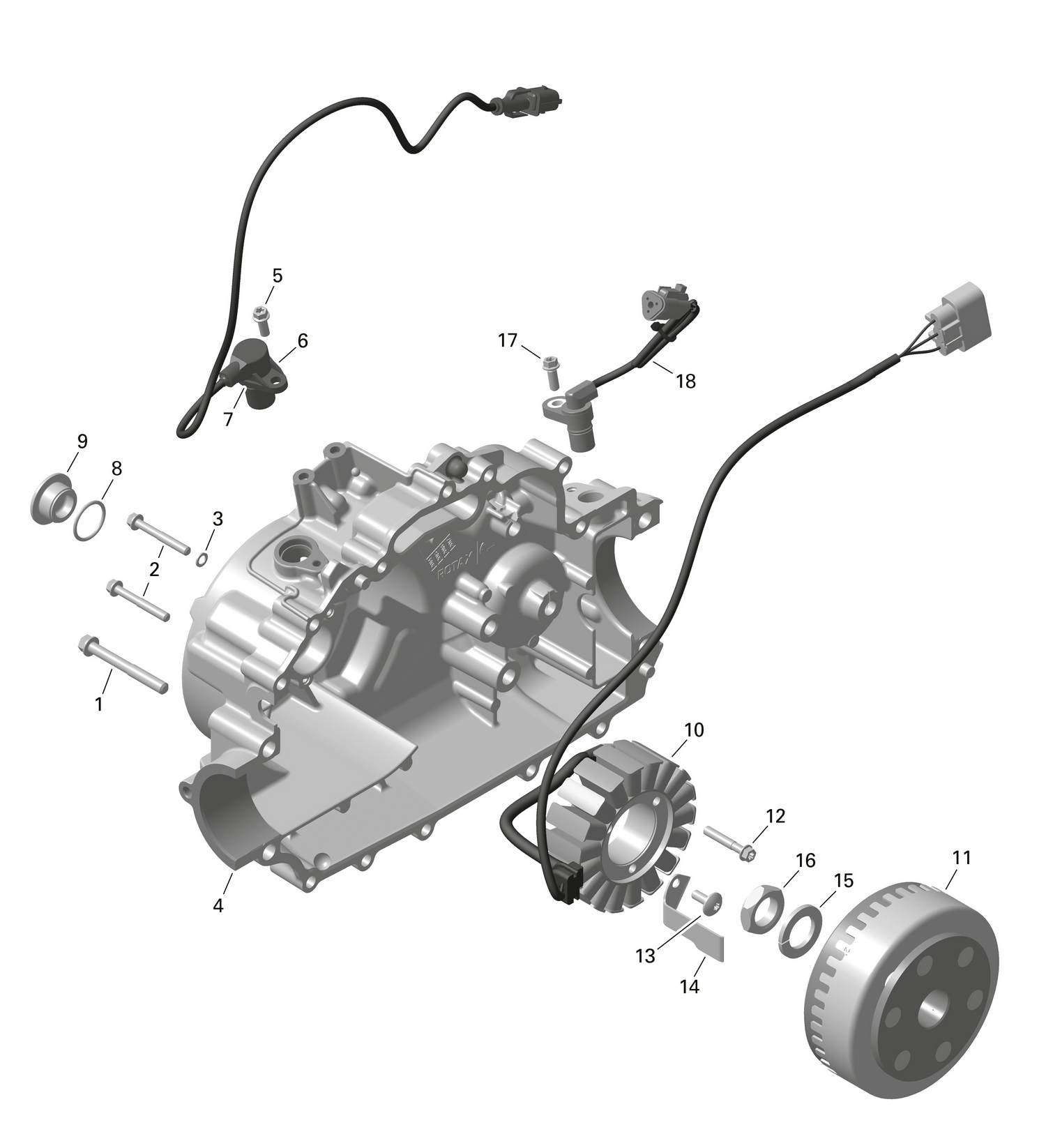

01- ROTAX - Magneto and Electric Starter
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420440402 | Torx Flange Screw M8 X 65 |
| 2 | 420440324 | Torx Flange Screw M6 X 45 |
| 3 | 420230415 | Seal Washer |
| 5 | 420440162 | Torx Flange Screw M6 X 16 |
| 7 | 420431580 | O-Ring |
| 8 | 420430782 | O-Ring |
| 9 | 420241633 | Plug Screw M24X 1.5 |
| 10 | 420685921 | Stator Plate, 480W |
| 11 | 420686275 | Flywheel 480W |
| 12 | 420440274 | Torx Flange Screw M6 X 35 |
| 13 | 420241522 | Torx Screw M6 X 16 This part replaces 420241529. |
| 14 | 420251270 | Inner Cable Cover |
| 15 | 420945759 | Lock Washer, 22 mm |
| 16 | 420842239 | Hex. Nut, M22 X 1.5 |
| 17 | 420440162 | Torx Flange Screw M6 X 16 |
