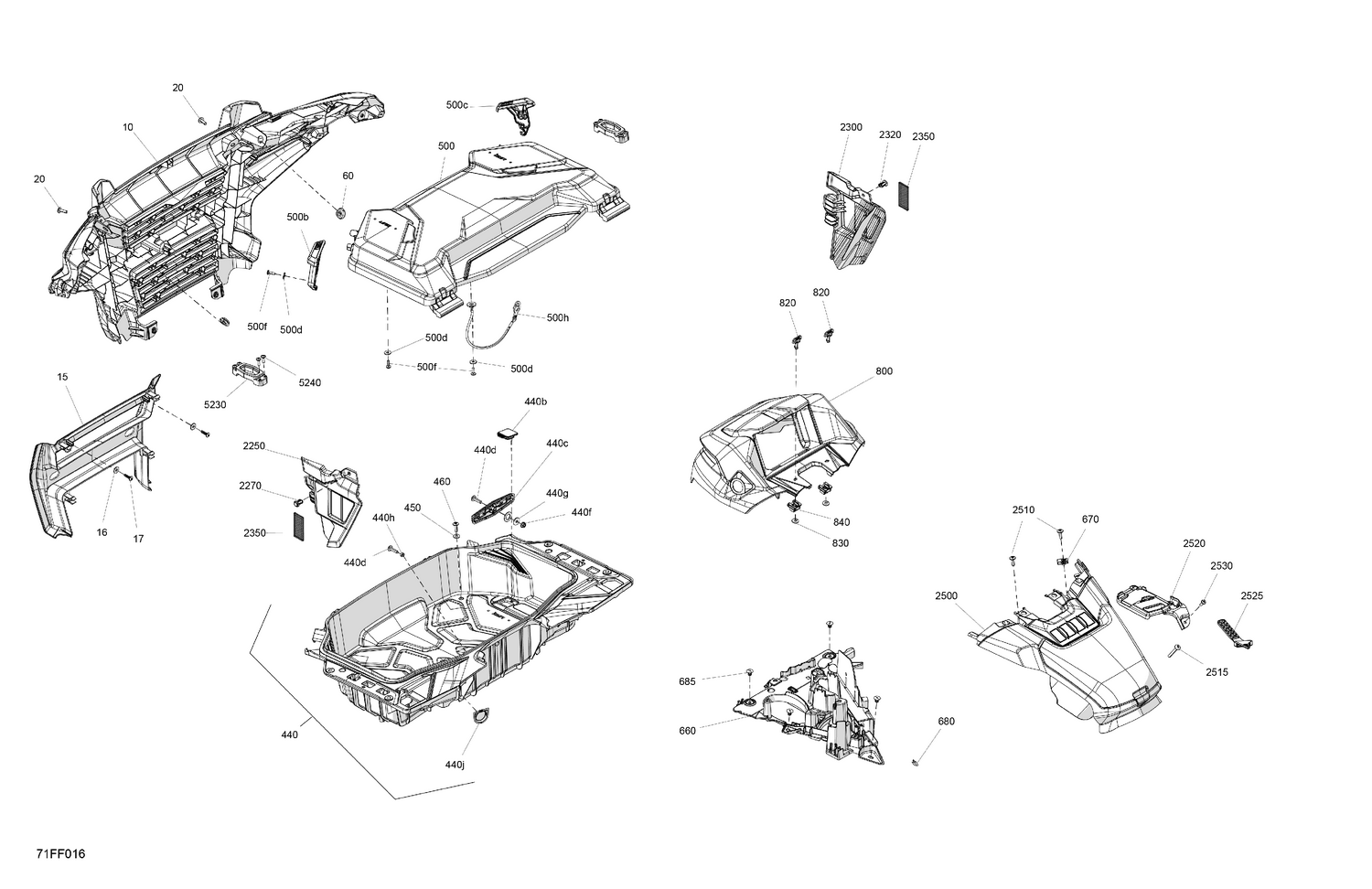

07- Body - Front Section
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705013201 | Front Grille |
| 15 | 705019268 | Grille Trim |
| 16 | 250200025 | Washer M5 |
| 17 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 20 | 250001257 | Screw Torx M6 X 20 |
| 60 | 705003264 | Grommet |
| 440 | 705019455 | Front Storage Box Ass'y |
| 440b | 705015244 | Box Cap |
| 440c | 705018509 | Cam |
| 440d | 250000807 | Torx Truss Screw M6 X 25 |
| 440f | 233161414 | Hex. Flange Nut M6 |
| 440g | 250200097 | Flat Washer |
| 440h | 708300737 | Bushing |
| 440j | 705014660 | Body Cap |
| 450 | 234062670 | Stainless Steel Flat Washer |
| 460 | 250001257 | Screw Torx M6 X 20 |
| 500 | 705020013 | Cover Box Assy |
| 500b | 707900789 | Latch |
| 500c | 707900799 | Latch |
| 500d | 250200025 | Washer M5 |
| 500f | 250000720 | Torx Screw K50 X 16 |
| 500h | 708304440 | Retaining Cable |
| 660 | 705018661 | Multi Purpose Support |
| 670 | 250100198 | Panel Nut M6 X 1.0 |
| 680 | 414479100 | Clip |
| 685 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 800 | 705018184 | Dashboard |
| 820 | 708400278 | Quarter Turn |
| 830 | 708400286 | Washer |
| 840 | 708400285 | Clip |
| 2250 | 705015256 | LH Front Radiator Deflector |
| 2270 | 293150230 | Tuflok Plastic Rivet |
| 2300 | 705015257 | RH Front Radiator Deflector |
| 2320 | 293150230 | Tuflok Plastic Rivet |
| 2350 | 520002680 | Amber, Reflector |
| 2500 | 705019060 | Glove Box Ass'y |
| 2510 | 250000712 | Torx Screw M6 X 20 |
| 2515 | 250000749 | Torx Truss Screw M6 X 50 |
| 2520 | 705019279 | Smartphone Support |
| 2525 | 705019280 | Elastic Strip |
| 2530 | 250000720 | Torx Screw K50 X 16 |
| 5230 | 715002350 | Linq Base Kit |
