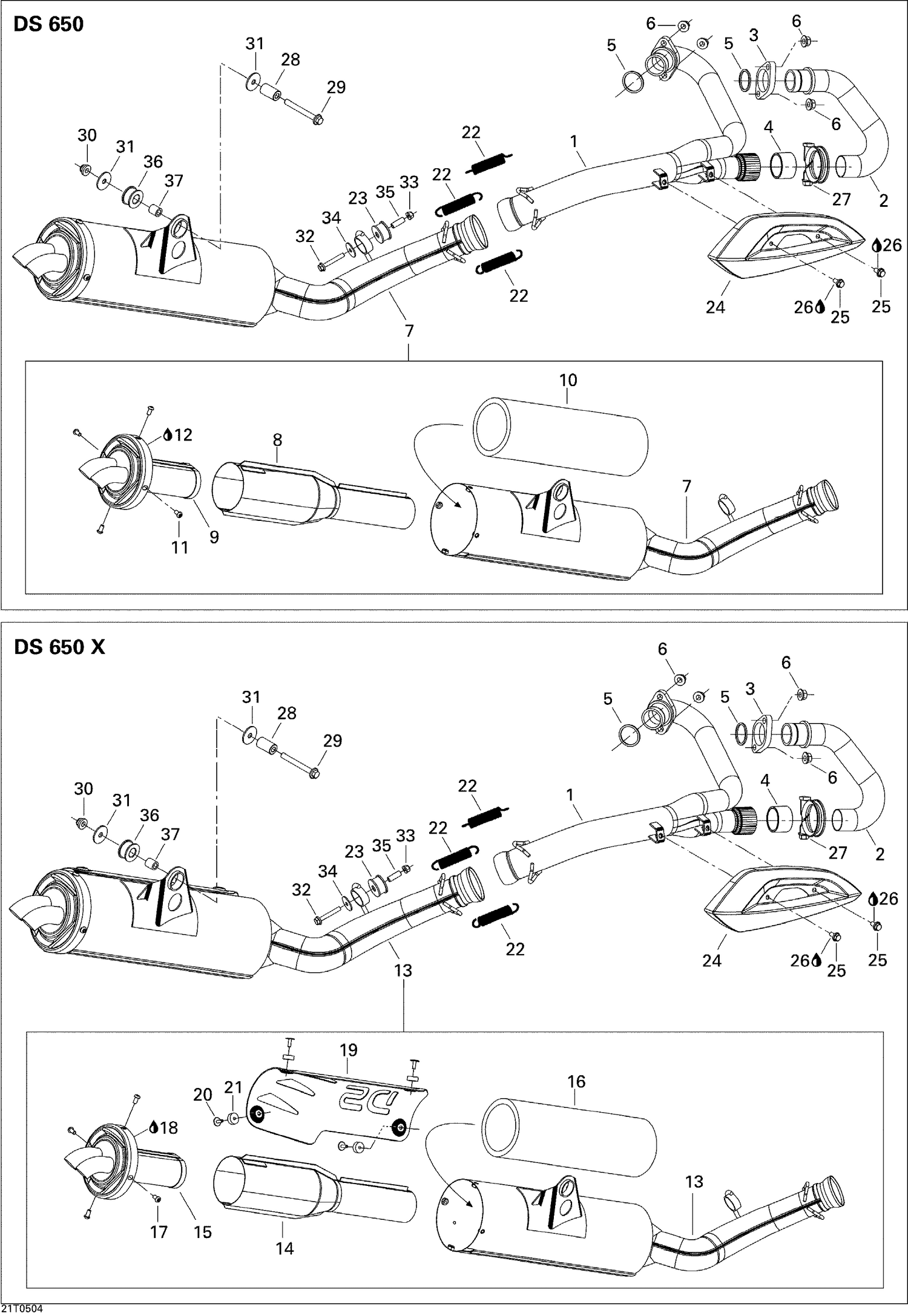

| Ref | Part Number | Description |
|---|
| 1 |
707600019 |
LH TUNED PIPE - Call your local BRP dealership |
| 2 |
707600196 |
RH TUNED PIPE - Call your local BRP dealership |
| 3 |
707600024 |
EXHAUST CLAMP - Call your local BRP dealership |
| 4 |
707600020 |
PIPE GASKET - Call your local BRP dealership |
| 5 |
707600069 |
PIPE GASKET - Call your local BRP dealership |
| 6 |
233081416 |
Hex. Flange Nut M8 |
| 22 |
415107100 |
Spring |
| 23 |
707600702 |
Anti-Vibration Rubber This part replaces 707600012. |
| 25 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 26 |
293800005 |
Loctite 271, 10 ml |
| 27 |
293650093 |
GEAR CLAMP - Call your local BRP dealership |
| 28 |
707600049 |
SPACER - Call your local BRP dealership |
| 29 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 30 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 31 |
224081301 |
Flat Washer |
| 32 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 34 |
224060251 |
Washer |
| 35 |
707600070 |
Spacer |
| 36 |
707603323 |
Vibration Damper This part replaces 707600077. |
