Home / BRP / Can-Am SXS / 2016 / Maverick Family / Maverick - Maverick MAX, 2016 0006FGA00 0006FGB00 0006FGC00 0006FGD00 0006FGE00 0006UGA00 0006UGB00 0006VGA00 0006VGB00 0007AGA00 0007AGB00 0007AGC00 0007AGD00 0007CGA00 0007CGB00 0007CGC00 0007CGD00 0007FGA00 0007GGB00 0007GGE00 0007HGB00 0007HGC00 0007HGF00 0007HGG00 0007JGB00 0007KGA00 0007KGC00 0007KGE00 0007KGF00 0007LGA00 0007MGA00 0007MGB00 0007MGC00 0007MGD00 0007NGA00 0007NGB00 0007NGC00 0007NGD00 0007WGA00 0007WGB00 0007YGA00 / STEERING HANDLE

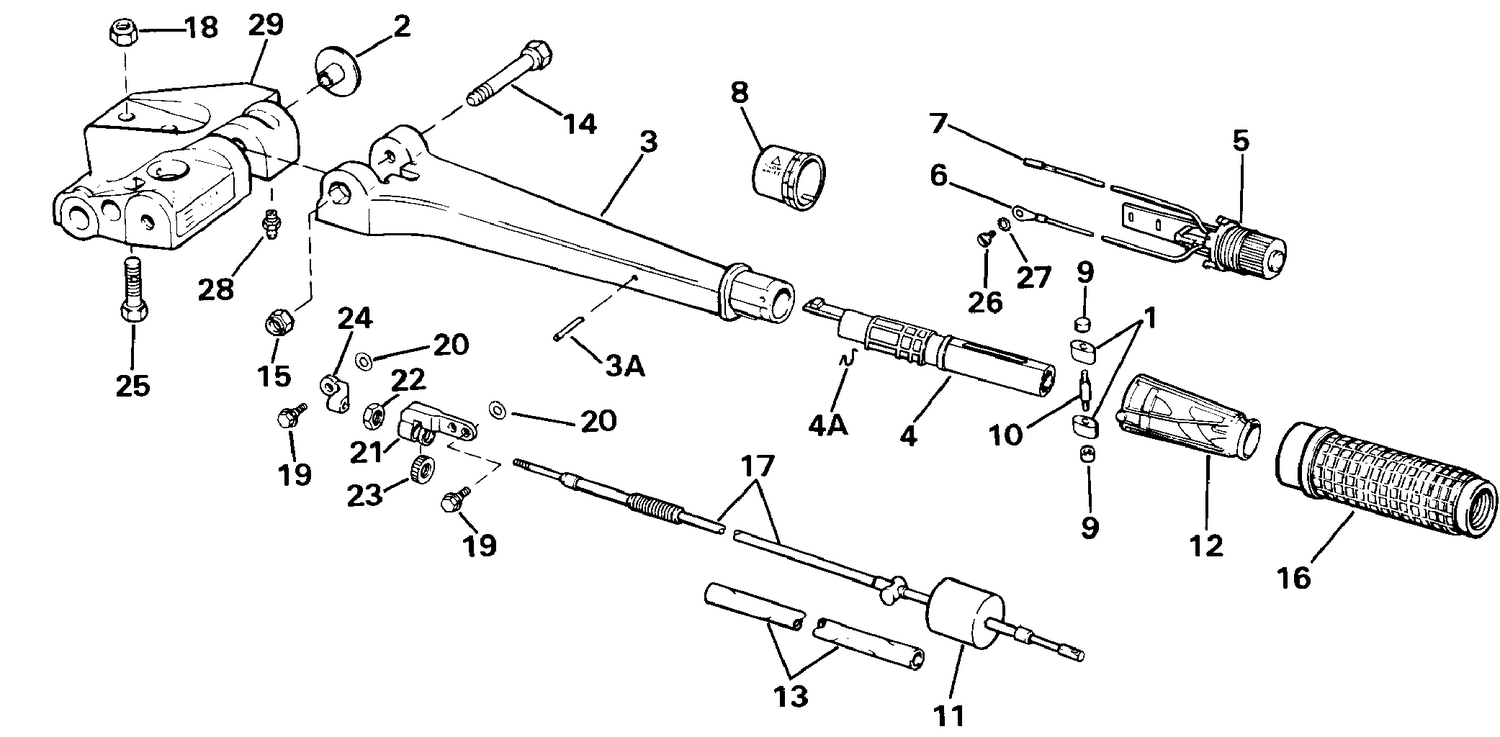

STEERING HANDLE

STEERING HANDLE

Parts (8)

RefPart NumberDescription
3A 0330829 SPIRAL PIN
5 0396115 IDLE STOP SWITCH ASSY.
12 0329882 GRIP&HELIX AY
16 0395240 GRIP ASSY .,
17 0397002 THROTTLE CABLE ASSY.
21 0397129 CONNECTOR KIT
24 0325715 CONNECTOR, Throttle cable
0395454 0395454 STEERING HANDLE ASSY.
