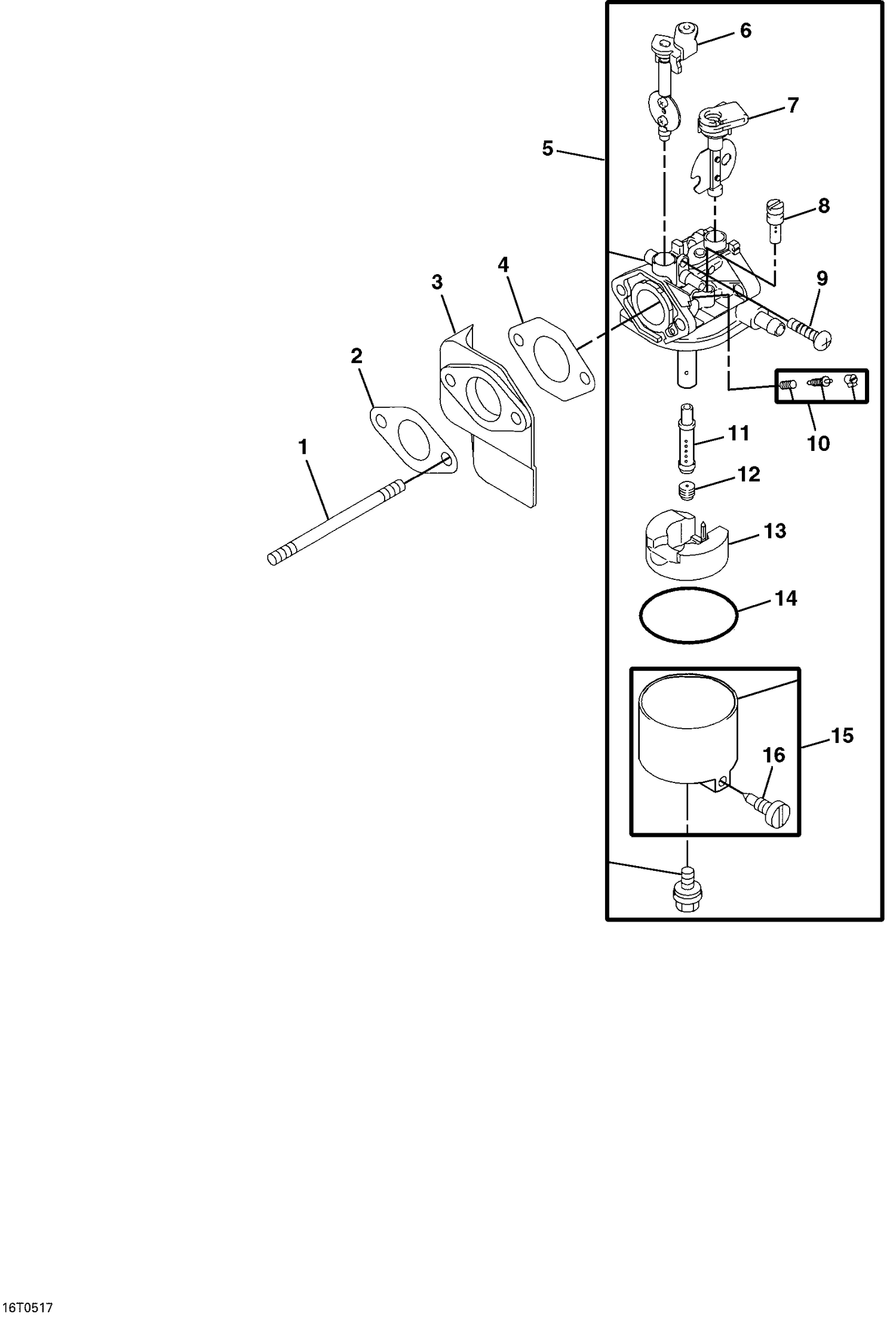

02- Carburetor
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DM79452 | Stud |
| 2 | DUP04960 | CARBURATOR GASKET - Call your local BRP dealership |
| 3 | DUP04760 | Insulator |
| 4 | DM150021 | CARBURATOR GASKET - Call your local BRP dealership |
| 6 | DAM133558 | Throttle Shaft |
| 7 | DAM119029 | Choke Shaft |
| 8 | DM119186 | Pilot Jet 40 |
| 9 | DAM119031 | Idle Screw |
| 10 | DAM123030 | Air Screw |
| 11 | DM150023 | Noozle |
| 12 | DM150024 | Main Jet 90 |
| 13 | DAM123559 | Float |
| 14 | DM119180 | Gasket |
| 15 | DAM119027 | Chamber |
| 16 | DAM119030 | Screw Ass'y |
| 17 | DM119187 | Drain Bolt |
