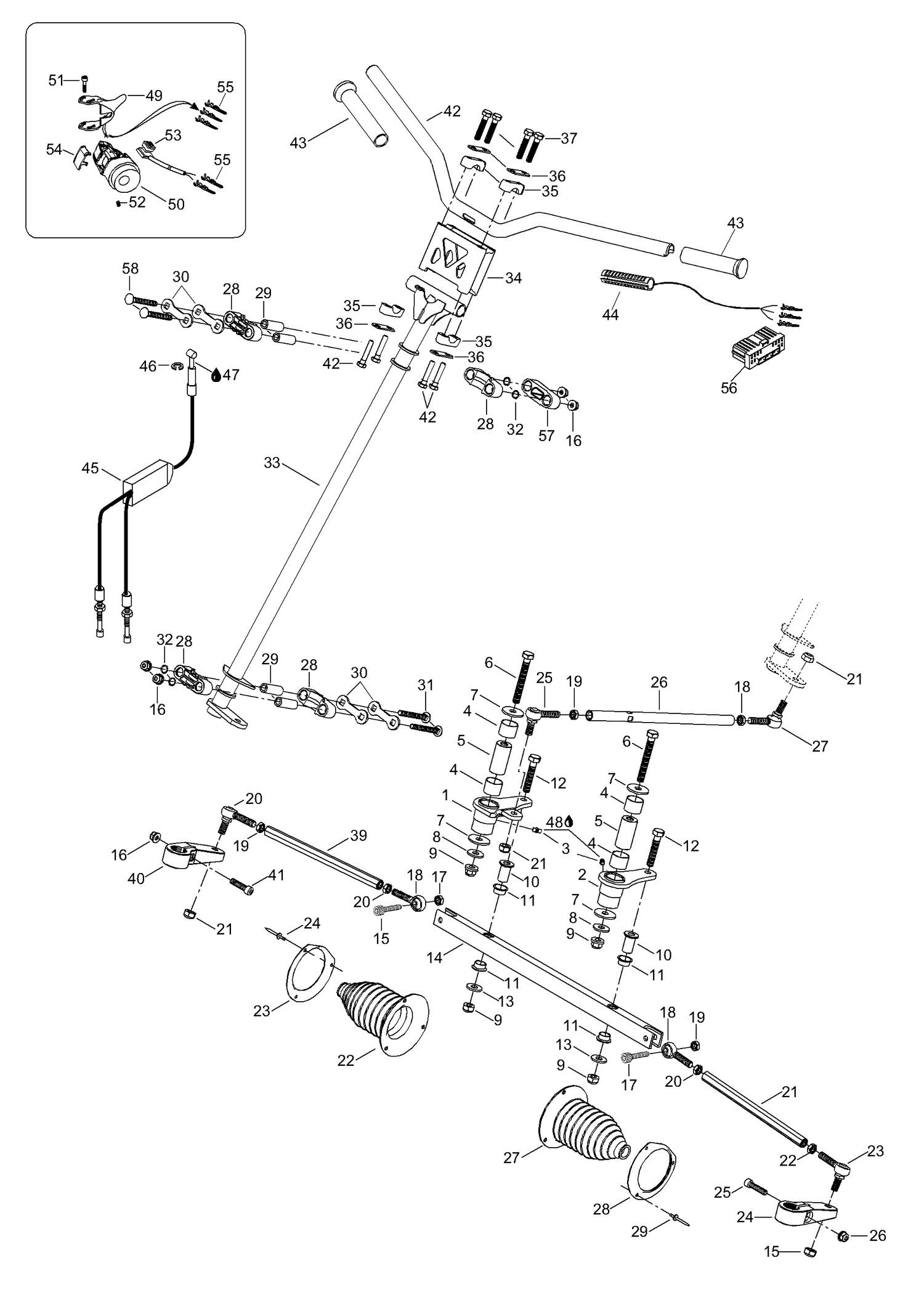

| Ref | Part Number | Description |
|---|
| 1 |
506151506 |
R.H. swivel arm |
| 2 |
506151623 |
LH SWIVEL ARM - Call your local BRP dealership |
| 3 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 4 |
506149900 |
BUSHING SWIVEL - Call your local BRP dealership |
| 5 |
506150100 |
PIVOT SWIVEL - Call your local BRP dealership |
| 6 |
40229 |
Screw M10 x 80 |
| 7 |
20080 |
Washer |
| 8 |
20101 |
Washer, hardened |
| 9 |
33012 |
Nut elastic M10 |
| 10 |
506147300 |
BAR PIVOT - Call your local BRP dealership |
| 11 |
503191555 |
Swivel Bushing This part replaces 506150200. |
| 12 |
40018 |
Screw M10 x 55 |
| 13 |
20028 |
Washer |
| 14 |
605348756 |
Bar-swivel |
| 15 |
40137 |
Allen screw M8 x 40 |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 17 |
506151496 |
LH BALL JOINT - Call your local BRP dealership |
| 18 |
250100016 |
LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 19 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 20 |
506151491 |
Joint ball |
| 21 |
33023 |
Nut elastic M10 |
| 22 |
570070500 |
TIE-ROD CAP - Call your local BRP dealership |
| 23 |
5347006 |
Retainer ring |
| 24 |
36009 |
Rivet |
| 25 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 26 |
506151375 |
TIE-ROD - Call your local BRP dealership |
| 27 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 28 |
506150400 |
Half housing |
| 29 |
506150500 |
Housing bushing |
| 30 |
506150600 |
Stopper plate |
| 31 |
207787044 |
Carriage bolt M8 x 70 |
| 32 |
506151140 |
O-RING - Call your local BRP dealership |
| 33 |
506151488 |
Main tube |
| 34 |
506151413 |
Extension |
| 35 |
709400919 |
Steering Support This part replaces 506151622. |
| 36 |
709400509 |
Stiffner This part replaces 506151196. |
| 37 |
250000074 |
Screw M8 x 40 |
| 38 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 39 |
5346200 |
Tie Rod |
| 40 |
506145800 |
RH STEERING ARM - Call your local BRP dealership |
| 40 |
506145900 |
LH STEERING ARM - Call your local BRP dealership |
| 41 |
40843 |
Allen screw M8 x 35 |
| 42 |
605249302 |
Handle bar |
| 43 |
5340464 |
Grip |
| 44 |
515176139 |
HEATER ELEMENT - Call your local BRP dealership This part replaces 515175657. |
| 45 |
512059112 |
THROTTLE CABLE - Call your local BRP dealership |
| 46 |
31038 |
Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership |
| 47 |
293550004 |
Dielectric grease |
| 48 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 49 |
512059481 |
Throttle Handle This part replaces 512059107. |
| 50 |
512059763 |
THROTTLE HOUSING - Call your local BRP dealership |
| 51 |
732601143 |
Screw |
| 52 |
414440800 |
Socket Set Screw M8 X 10 |
| 53 |
515175410 |
Switch kill |
| 54 |
572100901 |
Switch cover |
| 55 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 57 |
605450861 |
Extension |
