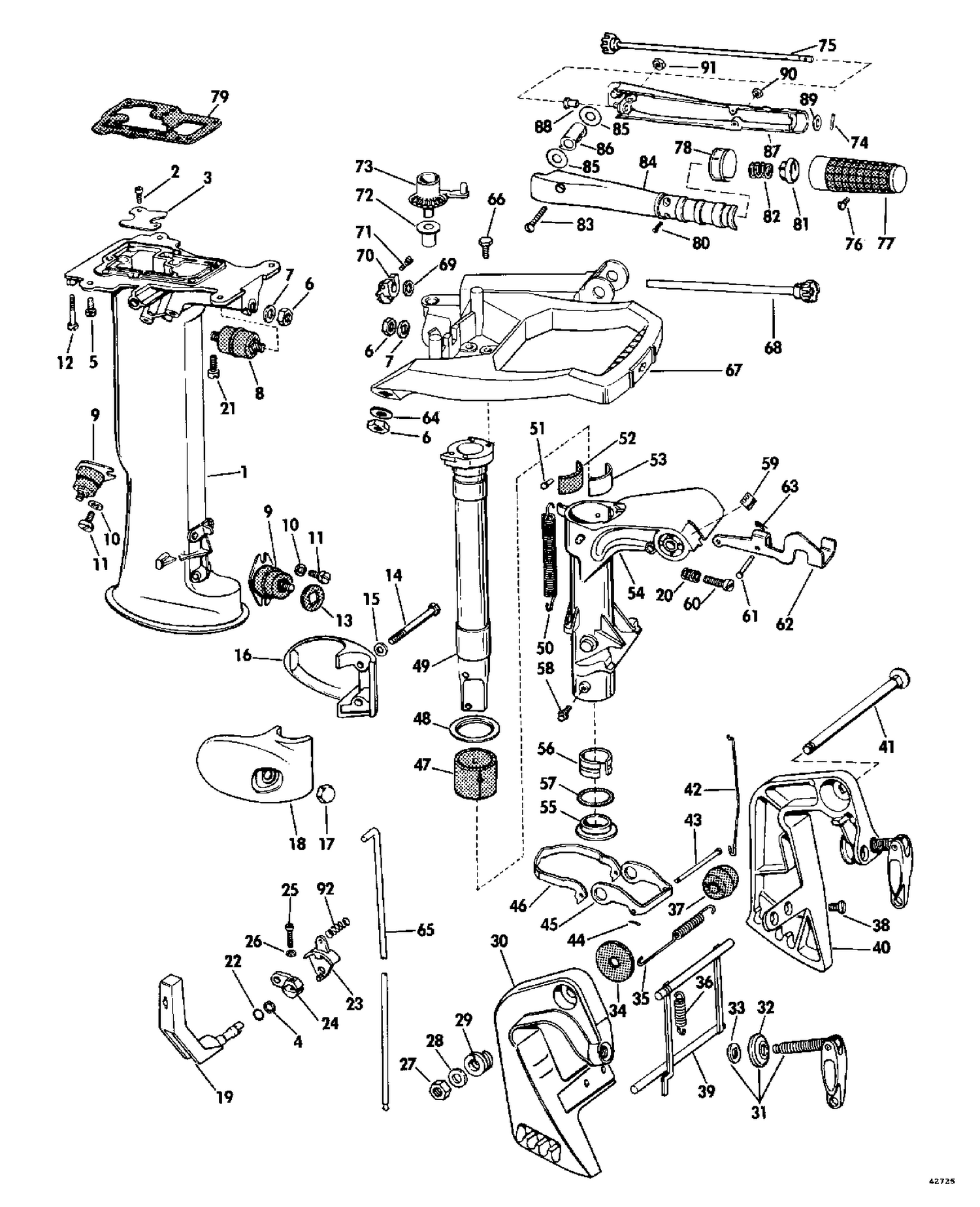

| Ref | Part Number | Description |
|---|
| 1 |
0385850 |
EXHAUST HOUSING ASSY |
| 2 |
0303393 |
SCREW |
| 3 |
0304304 |
PLATE, Exhaust hsg cover |
| 4 |
0318510 |
SPACER |
| 5 |
0314986 |
SCREW, Inner exhaust tube |
| 8 |
0303880 |
MOUNT, Rubber lower side |
| 9 |
0380680 |
MOUNT, Rubber side |
| 10 |
0303887 |
WASHEER, Pin to swivel bracket |
| 11 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 12 |
0308728 |
SCREW |
| 13 |
0304168 |
GASKET, Mount, lower side |
| 14 |
0324424 |
SCREW, Carb. body, long This part replaces 0304299. |
| 16 |
0305554 |
HOUSING, Lower mount, port |
| 17 |
0303890 |
ACORN NUT, Lower side mount |
| 18 |
0305555 |
HOUSING, Lower mount, starboard |
| 19 |
0385837 |
HANDLE, Gearshaft |
| 21 |
0909533 |
SCREW, Pressure relief valve cover This part replaces 0309646. |
| 23 |
0318378 |
LEVER, Arm shift lever |
| 24 |
0395022 |
LEVER & BUSHING, Shift rod This part replaces 0385826. |
| 25 |
0303714 |
SCREW |
| 28 |
0306433 |
WASHER |
| 29 |
0302051 |
SPRING Tilting bolt |
| 30 |
0391955 |
STERN BRACKET ASSY This part replaces 0380872. |
| 31 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0375742. |
| 34 |
0304278 |
WASHER |
| 35 |
0304283 |
SPRING, Stabilizer, Tilting lever |
| 36 |
0202021 |
SPRING, Link to shallow water drive |
| 37 |
0301983 |
CONICAK WASHER,Stern brkt |
| 38 |
0901889 |
SCREW This part replaces 0303396. |
| 39 |
0376505 |
LEVER, Tilting |
| 40 |
0380871 |
STERN BRACKET ASSEMBLY PORT(INCL.ITEM 22) |
| 41 |
0326134 |
BOLT, Tilting This part replaces 0304277. |
| 42 |
0303978 |
LINK, Reverse lock arm to shaft |
| 43 |
0303949 |
ROD, Reverse lock |
| 45 |
0303950 |
LINK, Reverse lock |
| 46 |
0329962 |
LEVER, Reverse lock This part replaces 0303948. |
| 47 |
0303370 |
BUSHING, Upper swivel bracket |
| 48 |
0304290 |
WASHER, Thrust |
| 49 |
0304293 |
SHAFT, Pilot, steering bracket |
| 50 |
0304282 |
SPRING, Reverse lock |
| 51 |
0303696 |
PIN |
| 52 |
0303697 |
SPACER, Co-pilot plate to upper liner |
| 53 |
0303363 |
PLATE, Co-pilot |
| 54 |
0379284 |
SWIVEL BRACKET & BSHG |
| 55 |
0309976 |
WASHER, Lower pilot shaft |
| 56 |
0309977 |
BUSHING, Lower, pilot shaft |
| 57 |
0309978 |
O RING |
| 59 |
0317595 |
TRANSFER, Tilt lock |
| 60 |
0313035 |
SCREW |
| 61 |
0303930 |
PIN, Cotter, pivot shaft |
| 62 |
0329640 |
ARM, Reverse lock This part replaces 0311351. |
| 65 |
0311381 |
SHIFT ROD, Upper |
| 65 |
0311382 |
SHAFT ROD, Upper, long |
| 66 |
0304027 |
VIS, arbre de commande de sens de marche |
| 67 |
0380184 |
STEERING BRACKET |
| 68 |
0376689 |
GEAR & SHAFT, Short |
| 69 |
0303107 |
RONDELLE NYLON, barre |
| 70 |
0303142 |
PINION, Control throttle |
| 71 |
0303951 |
SCREW, PIN TO SHAFT |
| 72 |
0303140 |
BUSHING, Throttle control |
| 73 |
0324512 |
GEAR, Throttle control This part replaces 0308187. |
| 75 |
0377943 |
GEAR & SHAFT, Long |
| 77 |
0393556 |
GRIP & SLEEVE ASSY. This part replaces 0279600. |
| 78 |
0319213 |
PLATE |
| 79 |
0313065 |
GASKET, Exhaust housing |
| 80 |
0133452 |
SCREW |
| 81 |
0303282 |
BLOCK |
| 82 |
0301656 |
SPRING |
| 83 |
0330976 |
SCREW, Handle halves This part replaces 0303078. |
| 84 |
0318213 |
HANDLE, Inner half |
| 85 |
0303079 |
WASHER |
| 86 |
0311354 |
COVER, Handle gears |
| 88 |
0325074 |
BUSHING This part replaces 0305100. |
| 89 |
0303252 |
WAHSER, Grip spring |
| 91 |
0328742 |
NUT This part replaces 0306338. |
