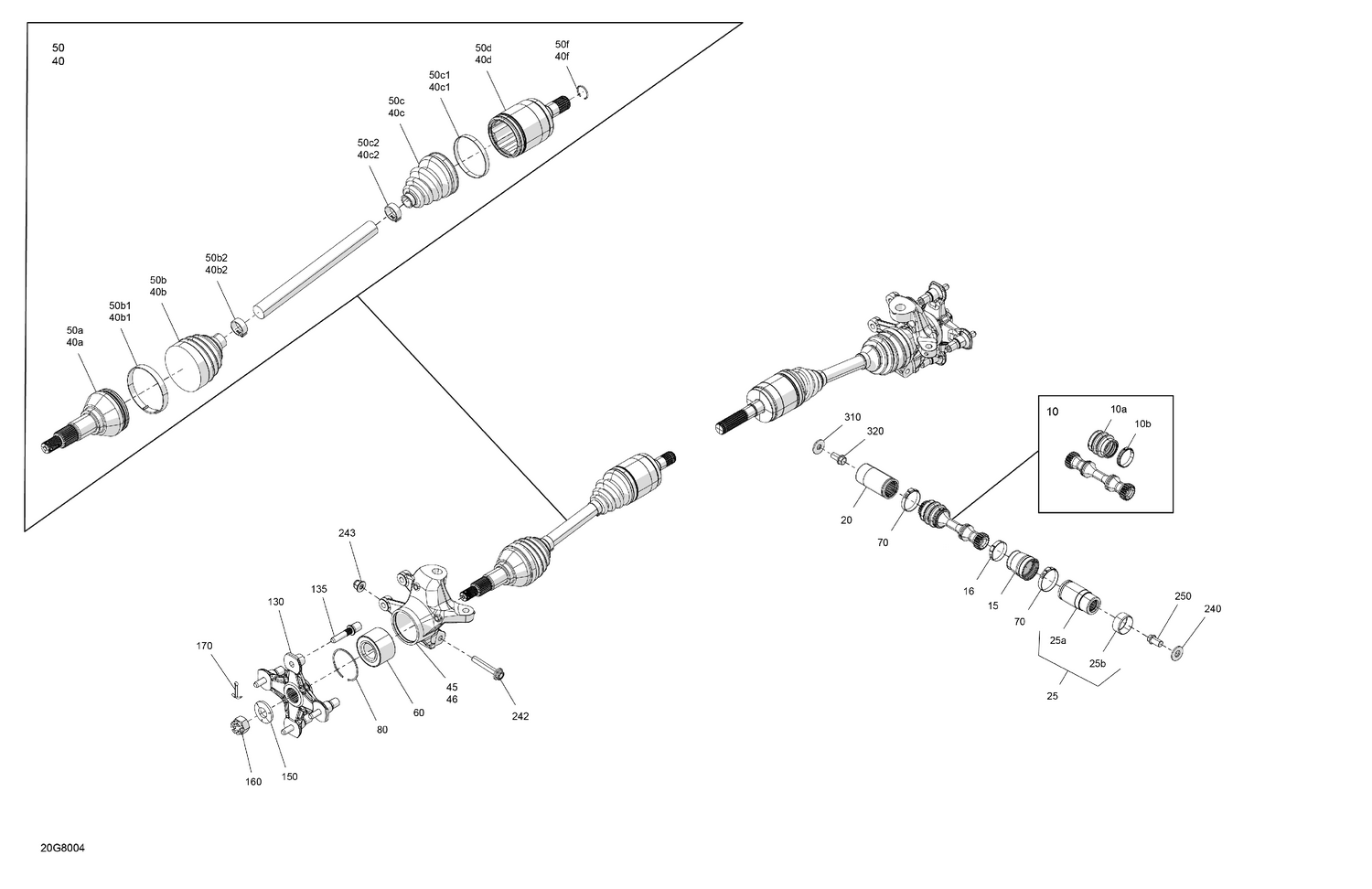

04- Drive - Front - Common Parts
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10b | 509000045 | Oetiker Gear Clamp 36.1MM |
| 15 | 705401093 | Rubber Boot |
| 16 | 293650199 | Oetiker Gear Clamp |
| 20 | 705401969 | Coupling Sleeve |
| 25a | XXX | Not Available As Spare Parts |
| 25b | 705400036 | Wear Ring |
| 40a | 705401344 | CV Joint |
| 40b1 | 715900282 | Oetiker Clamp |
| 40b2 | 715900283 | Oetiker Clamp, Small |
| 40c1 | 715900284 | Oetiker Clamp, Large |
| 40c2 | 715900261 | Oetiker Clamp, Small |
| 40d | 705401348 | RH Plunging Joint |
| 40f | 705401349 | Circlip Joint |
| 45 | 705403307 | LH Knuckle |
| 46 | 705403308 | RH Knuckle |
| 50a | 705401344 | CV Joint |
| 50b1 | 715900282 | Oetiker Clamp |
| 50b2 | 715900283 | Oetiker Clamp, Small |
| 50c1 | 715900284 | Oetiker Clamp, Large |
| 50c2 | 715900261 | Oetiker Clamp, Small |
| 50d | 705401350 | LH Plunging Joint |
| 50f | 705401349 | Circlip Joint |
| 60 | 293350150 | Ball Bearing This part replaces 293350118. |
| 70 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 80 | 293370019 | Circlip |
| 130 | 705501716 | Wheel Hub Ass'y |
| 135 | 250300643 | Wheel Stud This part replaces 250300048. |
| 150 | 250200171 | Conical Spring Washer M18 |
| 160 | 232291413 | Hex. Flange Castellated Nut M18 |
| 170 | 250400071 | Cotter Pin |
| 240 | 250200102 | Flat Washer M12 |
| 242 | 207606044 | Hex. Flange Screw M10 X 60 |
| 243 | 233201434 | Hex. Flange Elastic Nut M10 |
| 250 | 250001042 | Hex Flange Screw M12 X 20 |
| 310 | 250200014 | Flat Washer M10 |
