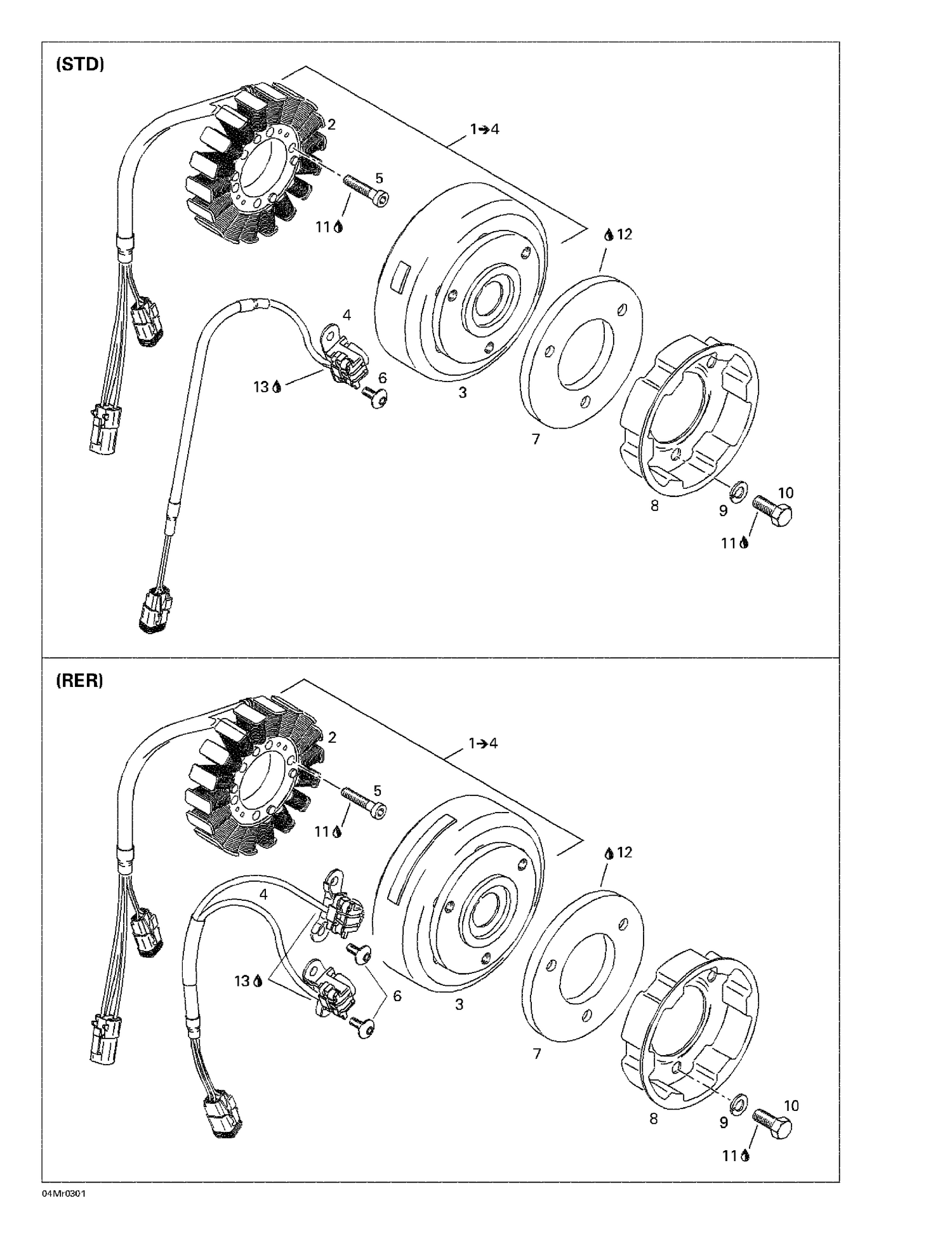

| Ref | Part Number | Description |
|---|
| 2 |
420889905 |
Stator Plate A This part replaces 410922946. |
| 3 |
410922953 |
FLYWHEEL - Call your local BRP dealership |
| 4 |
410922951 |
Pick-Up |
| 5 |
205063044 |
Socket Head Screw M6 X 30 |
| 6 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 7 |
420866756 |
Flywheel |
| 8 |
420852533 |
Starting Pulley This part replaces 420852532. |
| 9 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 10 |
207182044 |
Hex. Screw M8 X 20 |
| 11 |
293800060 |
Loctite 243, 10 ml |
| 12 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
| 410922947 |
Volant |
Moteur - Appelez votre concessionnaire BRP local 410922947 |
| 410922948 |
Capteur |
Ass. 410922948 |
| 410922948 |
Pickup |
Ass'y 410922948 |
| 420640324 |
Torx |
Screw M6 X 16 This part replaces 420640321. 420640324 |
| 420640324 |
Vis |
Hexalobulaire M6 X 16 This part replaces 420640321. 420640324 |
