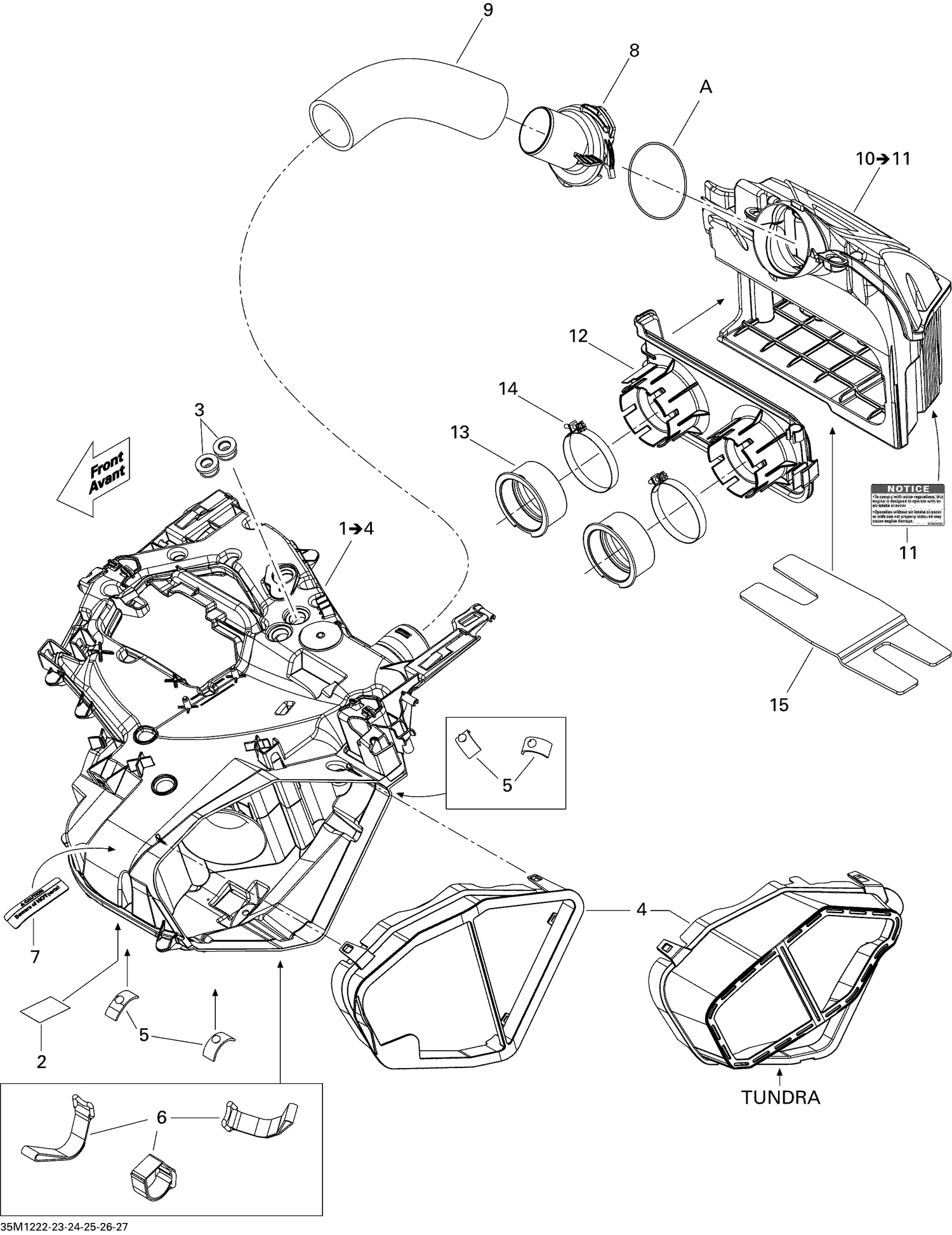

02- Air Intake System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 509000688 | Reflective Sheet |
| 3 | 508000574 | Grommet |
| 4 | 508000568 | Air Intake Filter |
| 5 | 508000537 | Stopper |
| 6 | 508000820 | Velcro Strip This part replaces 508000532. |
| 7 | 516004566 | Caution Decal, Hot Parts |
| 8 | 508000562 | Link |
| 9 | 508000406 | Tube |
| 11 | 516004572 | DECAL, AIR INTAKE - Call your local BRP dealership |
| 12 | 508000564 | ADAPTER PLATE - Call your local BRP dealership |
| 13 | 508000594 | Air Intake Adapter |
| 14 | 508000369 | Gemi Clamp |
| 15 | 508000674 | Insulated Foam |
