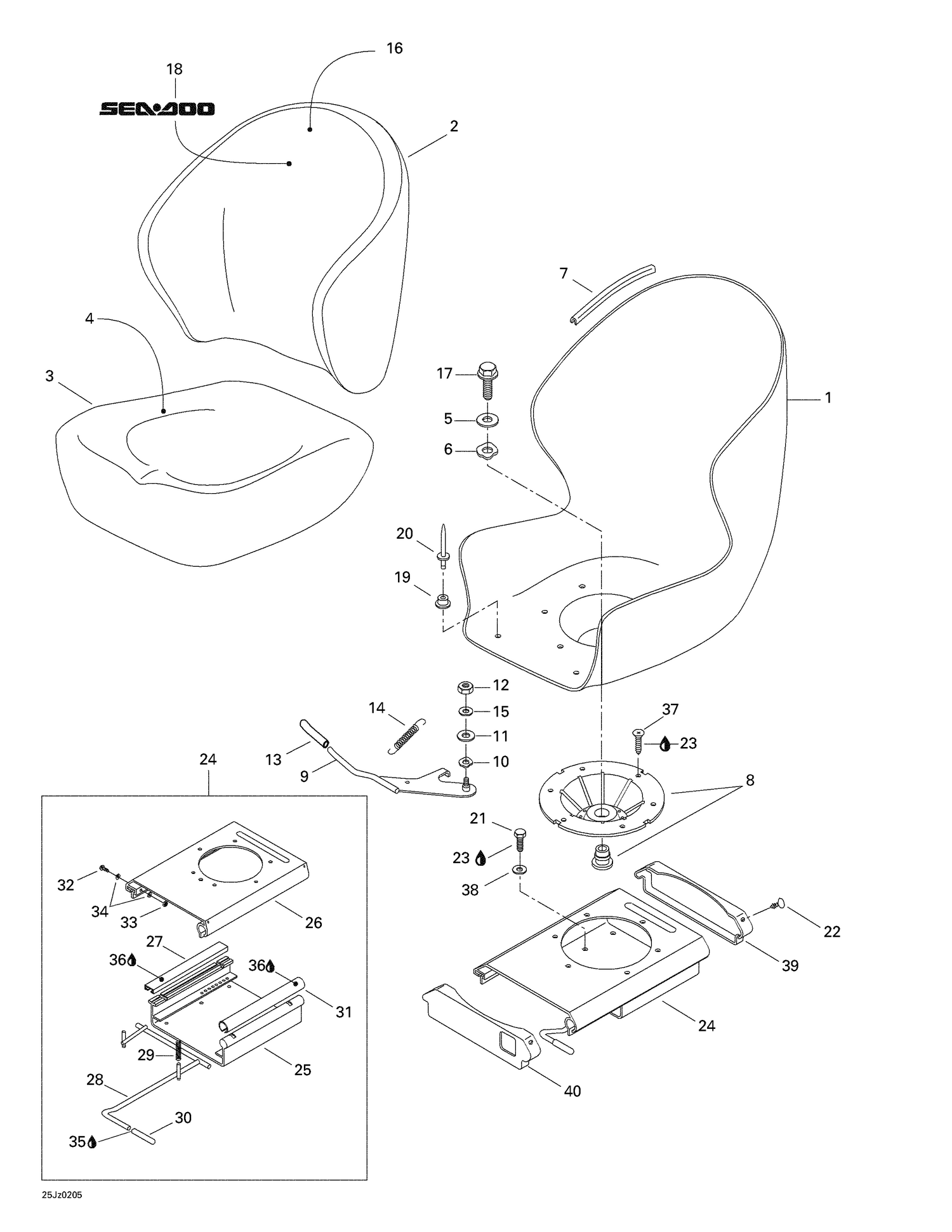

09- Driver Passenger Seat
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Seat Base |
| 2 | 295501059 | Backrest Cushion (Metalic Quartz) |
| 4 | 204611288 | Cover Cushion |
| 5 | 211200058 | FLAT WASHER - Call your local BRP dealership |
| 6 | 293200056 | WASHER - Call your local BRP dealership |
| 7 | 204610371 | TRIM, BLACK - Call your local BRP dealership |
| 8 | 204610513 | SWIVEL PLATE - Call your local BRP dealership |
| 9 | 204610524 | Lever Arm |
| 10 | 211200059 | Washer |
| 11 | Not | Available As Spare Part - Washer (Nylon) |
| 12 | 232561600 | Hex. Elastic Stop Nut M6 |
| 13 | 204610348 | Handle |
| 14 | 204610349 | SPRING - Call your local BRP dealership |
| 15 | 234061600 | Stainless Flat Washer M6 |
| 16 | Not | Available As Spare Part - Cover Backrest |
| 17 | 211000172 | SCREW-SHOULDER - Call your local BRP dealership |
| 18 | 204901063 | Sea-Doo Logo |
| 19 | 204100059 | FLAT WASHER #10 - Call your local BRP dealership |
| 20 | 293150201 | RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 21 | 207163560 | Hex. Screw M6 X 35 |
| 22 | 293730006 | Black, Dart |
| 23 | 293800060 | Loctite 243, 10 ml |
| 25 | 269500636 | Lower Part |
| 26 | 269500637 | Upper Part |
| 27 | 269500638 | Rectangular Bushing |
| 28 | 269500639 | Rod Ass'y |
| 29 | 269500640 | Spring |
| 30 | 204610348 | Handle |
| 31 | 269500642 | Circle Bushing |
| 32 | 207065060 | Hex. Screw M6 X 50 |
| 33 | 232561600 | Hex. Elastic Stop Nut M6 |
| 34 | 234061600 | Stainless Flat Washer M6 |
| 36 | 293550010 | Synthetic Grease, 400 G |
| 37 | 208561660 | PHILLIPS SCREW M6 X 16 - Call your local BRP dealership |
| 38 | 234062600 | Flat Washer M6, Stainless |
| 39 | 204610376 | Rear Protector |
