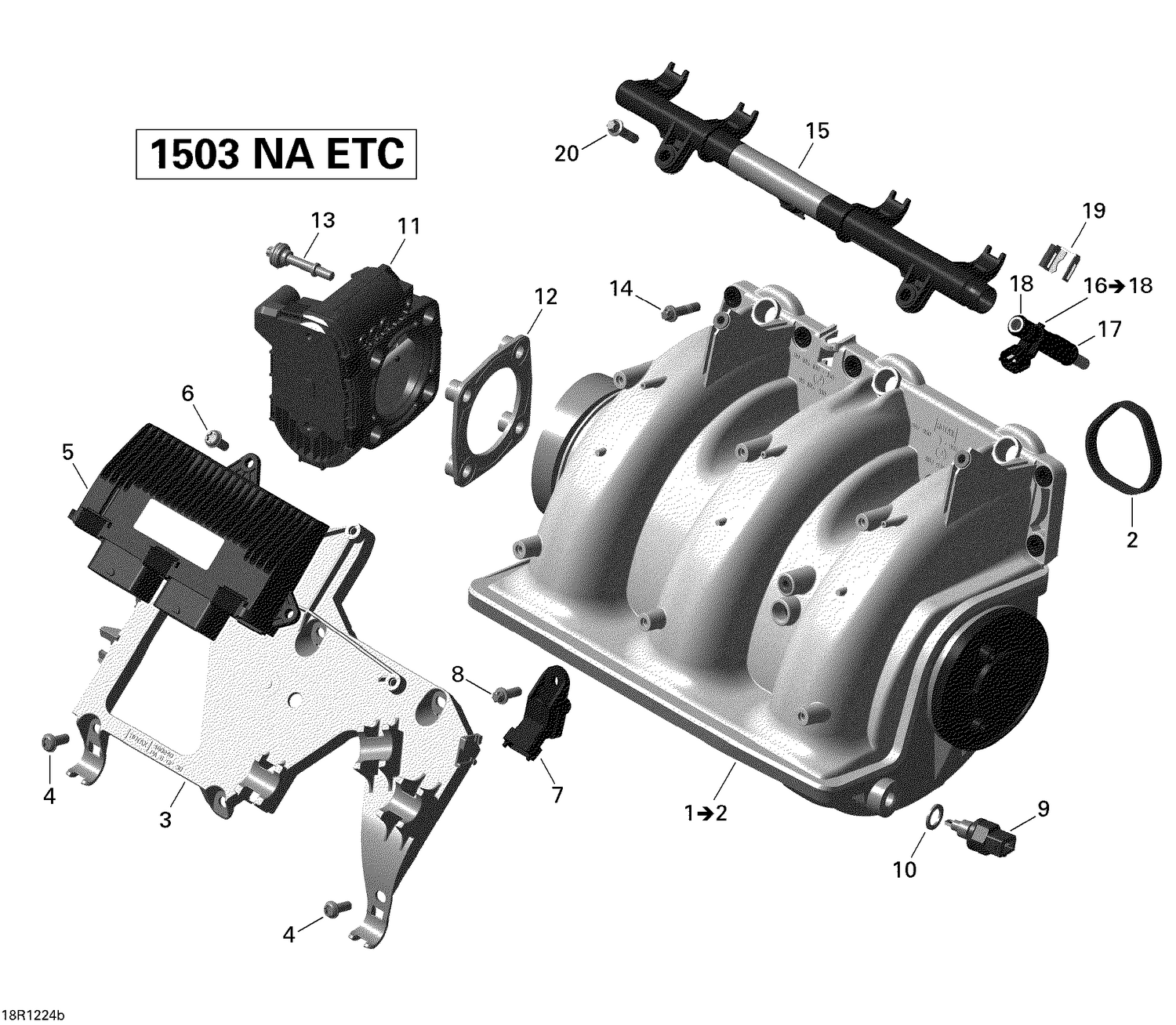

02- Air Intake Manifold And Throttle Body 3_Sea-Doo Boats
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420950740 | Gasket |
| 3 | 420460842 | Base Plate |
| 4 | 420641588 | Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 5 | 420666401 | ELECTRONIC BOX - Call your local BRP dealership |
| 6 | 420641588 | Torx Flange Screw M6 X 16 This part replaces 420641583. |
| 7 | 420274058 | Pressure Sensor This part replaces 420274057. |
| 8 | 420641048 | Torx Flange Screw M6 X 16 |
| 9 | 420222421 | Temperature Sensor This part replaces 420222423. |
| 10 | 420227987 | Thrust Washer |
| 11 | 420892592 | Throttle Body Socket Ass’y This part replaces 420892590. |
| 12 | 420950792 | Rubber Gasket |
| 13 | 420440561 | Allen Screw M6 x 30,5 This part replaces 420440560. |
| 14 | 420641238 | Torx Flange Screw M6 X 25 |
| 15 | 420874414 | Fuel Rail This part replaces 420874396. |
| 17 | 420431890 | O-Ring |
| 18 | 420631220 | O-Ring |
| 19 | 420853030 | Injector Clip |
| 20 | 420641238 | Torx Flange Screw M6 X 25 |
