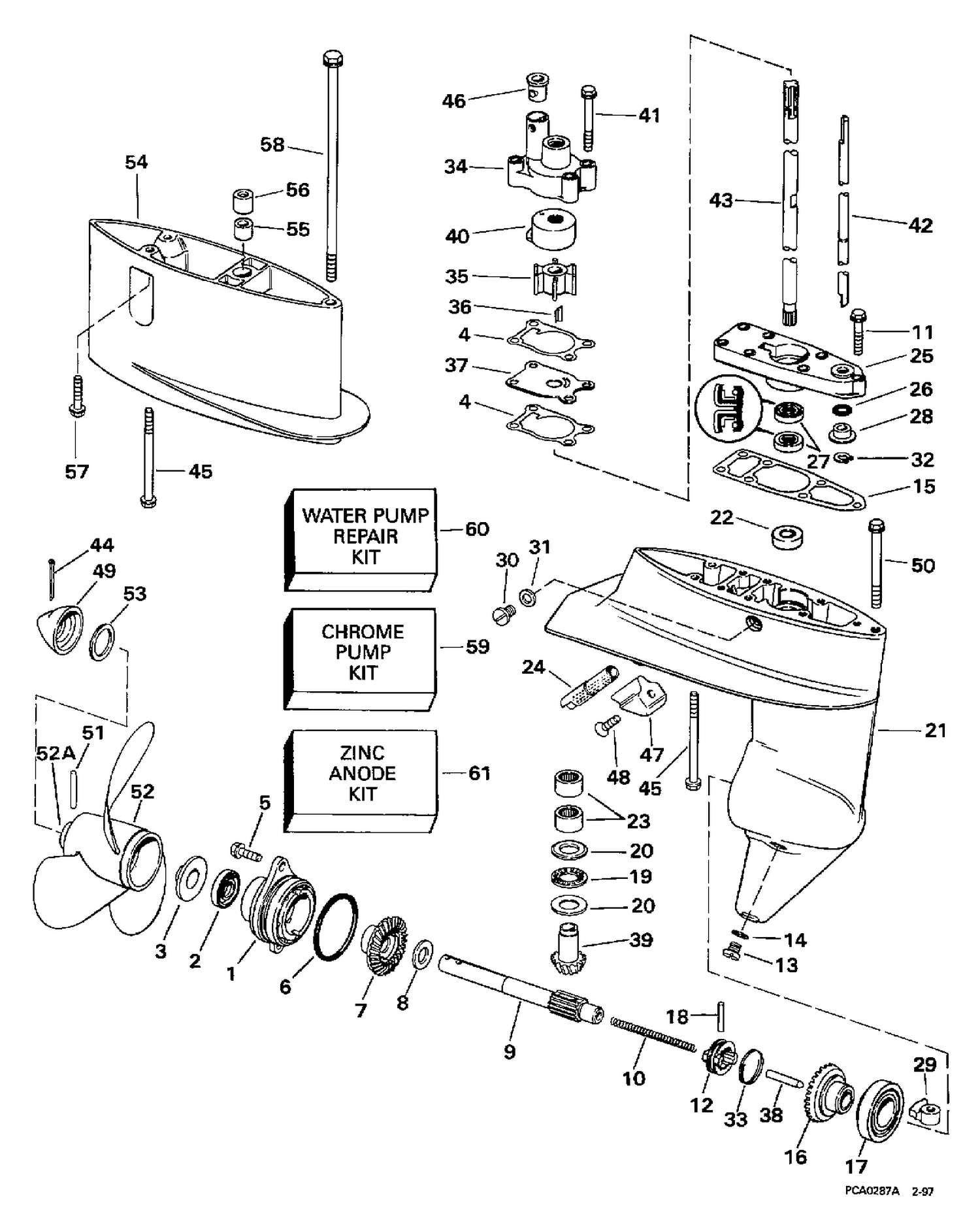

GEARCASE
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 26 | 0305242 | O RING |
| 34 | 0389577 | IMPELLER HOUSING ASSY. |
| 35 | 0436137 | IMPELLER Assy |
| 37 | 0324640 | PLAT, Impeller housing |
| 41 | 0331980 | SCREW, Bracket, port |
| 42 | 0336061 | SHIFT ROD, Lower |
| 43 | 0337939 | DRIVESHAFT |
| 47 | 0432397 | ANODE KIT This part replaces 0334451. |
| 49 | 0324694 | CAP, Propeller shaft |
| 50 | 0342540 | SCREW, Exhaust housing to ext. |
| 51 | 0324690 | DRIVE PIN |
| 52 | 0390237 | PROPELLER |
| 52 | 0391096 | PROPELLER |
| 52 | 0392183 | PROPELLER - 9 1/4 X 6 1/2 |
| 53 | 0324689 | SPACER |
| 59 | 0390772 | CHROME PUMP KIT |
| 60 | 0396644 | WATER PUMP REPAIR KIT |
| 0439006 | 0439006 | GEARCASE Assy |
