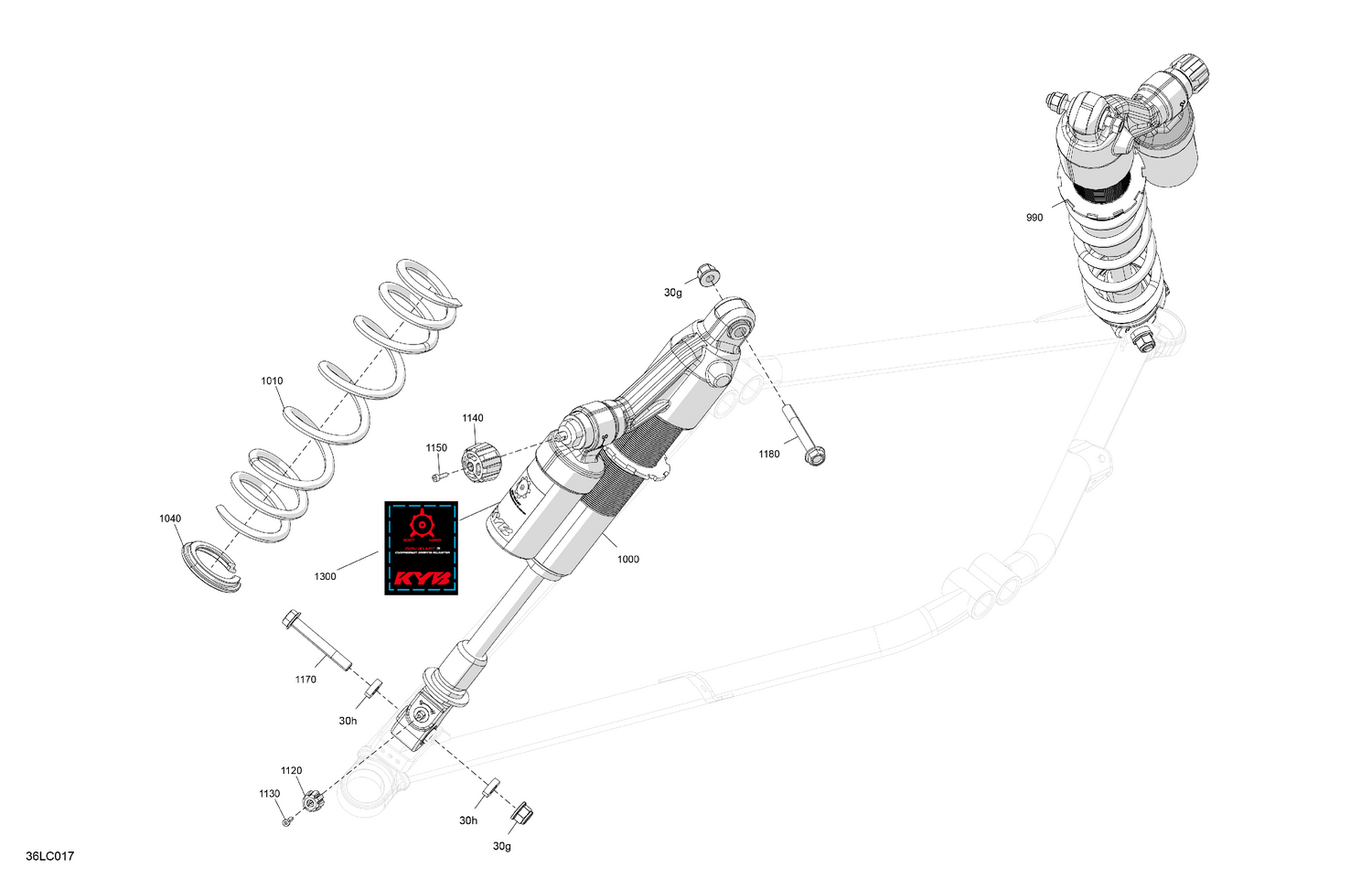

05- Suspension - Front Shocks
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 30g | 233281466 | Elastic Flang Nut M8 |
| 30h | 505073892 | Spacer |
| 990 | 505075382 | LH Front Adjustable Shock Absorber |
| 1000 | 505075381 | RH Front Adjustable Shock Absorber |
| 1010 | 505075530 | Compression Spring This part replaces 505074309. |
| 1040 | 503194270 | Spring Stopper |
| 1120 | 505072753 | Adjustment Knob |
| 1130 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1140 | 503196209 | Adjustment Button |
| 1150 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1170 | 250000824 | Hexagonal Flange Screw M8 X 58 |
| 1180 | 250000824 | Hexagonal Flange Screw M8 X 58 |
