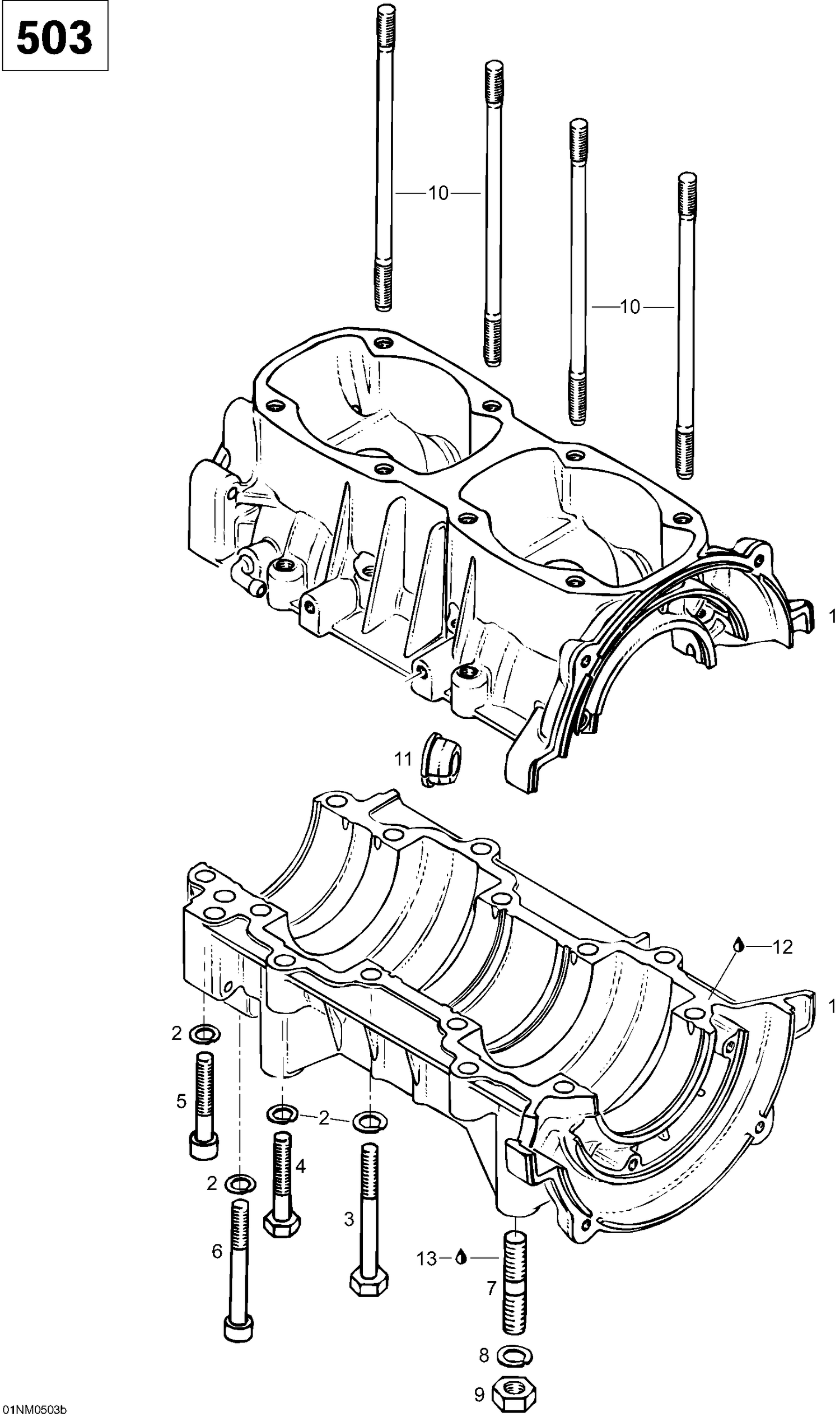

| Ref | Part Number | Description |
|---|
| 2 |
20014 |
Jousialuslaatta M8 |
| 3 |
420841201 |
Hex. screw M8 x 70 |
| 4 |
207084544 |
Hex. Screw M8 X 45 This part replaces 420940631. |
| 5 |
420841561 |
Kuusiokolor. M8 x 45 |
| 6 |
420841841 |
SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership |
| 7 |
420940704 |
STUD M10 - Call your local BRP dealership |
| 8 |
420945753 |
Jousialuslevy A10 |
| 9 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 10 |
420840556 |
Vaarnaruuvi M8 x 173.5 |
| 12 |
420899784 |
Loct 574/orange/50 |
| 13 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
