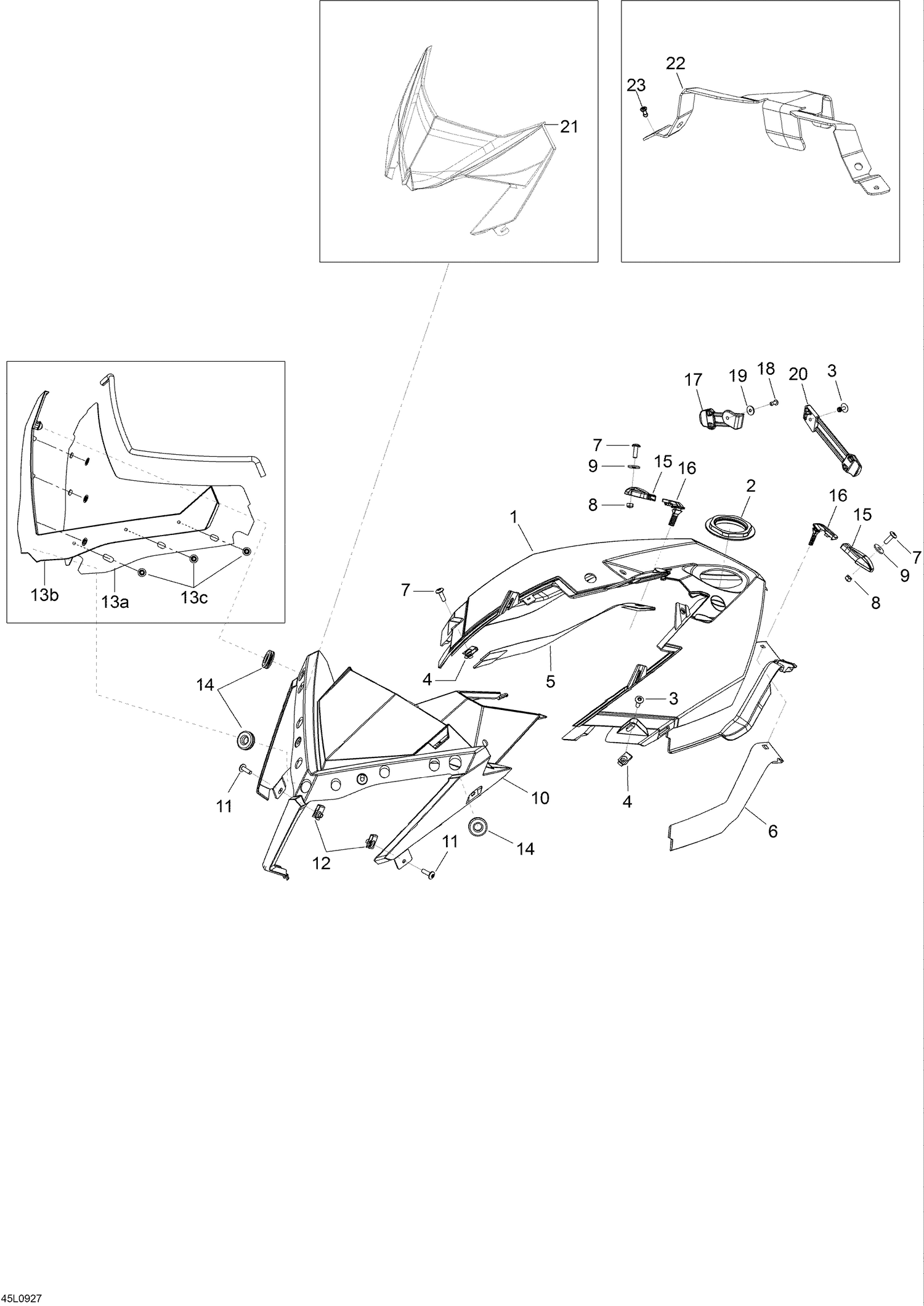

09- Windshield And Console
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304140 | Console |
| 2 | 517302575 | CONSOLE NUT - Call your local BRP dealership |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 5 | 517304103 | RH Decal This part replaces 517303988. |
| 6 | 517304104 | LH Decal This part replaces 517303989. |
| 7 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 8 | 232561414 | Elastic Stop Nut M6 |
| 9 | 224061201 | Flat Washer |
| 10 | 517303780 | Indicator Support |
| 11 | 250000722 | Torx Truss Screw M6 x 20 This part replaces 250000128. |
| 12 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 13a | 517303608 | MEDIUM WINDSHIELD - Call your local BRP dealership |
| 13b | 517303607 | Windshield Support |
| 13c | 732610072 | Push Nut |
| 14 | 517303756 | Grommet |
| 15 | 517304075 | End Piece |
| 16 | 517303981 | Panel Latch |
| 17 | 517303612 | Panel Latch |
| 18 | 390402300 | Pop Rivet 3/16" |
| 19 | 517124300 | Washer |
| 20 | 517303808 | Panel Latch |
| 21 | 517303979 | Headlamp cover |
| 22 | 517304230 | Support plate for console |
