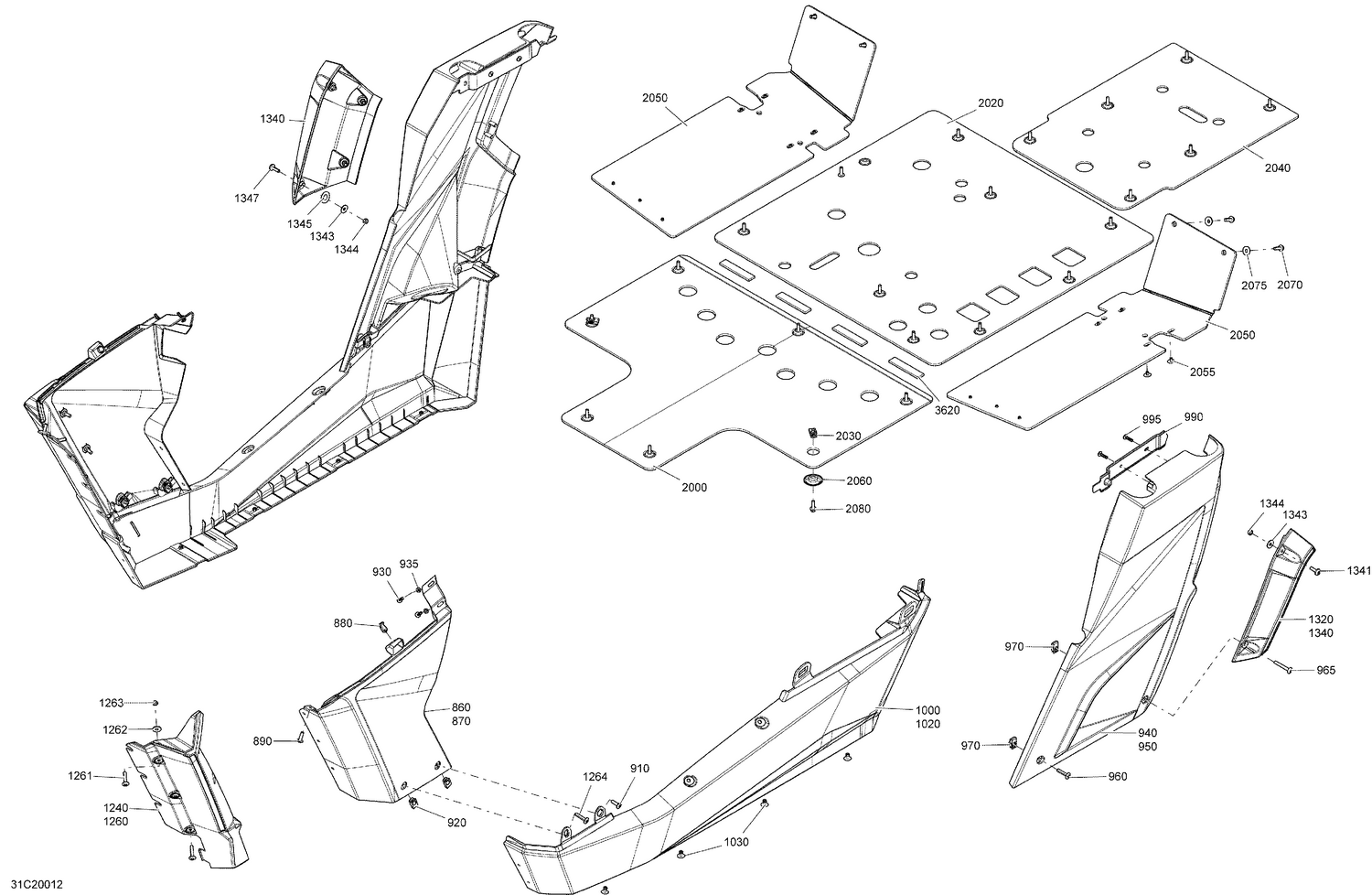

09- Body - Mid Section - Boreal Green
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 860 | 705013160 | PANEL BODY FL B-423 PAINTED - Call your local BRP dealership |
| 870 | 705013161 | Boreal Green, Body Panel Front RH |
| 880 | 293150230 | Tuflok Plastic Rivet |
| 890 | 250000722 | Torx Screw M6 X 20 |
| 910 | 250000722 | Torx Screw M6 X 20 |
| 920 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 930 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 935 | 234051410 | Flat Washer M5 |
| 940 | 705013164 | Boreal Green, LH Body Panel Rear |
| 950 | 705013165 | Boreal Green, RH Rear Body Panel |
| 960 | 250000843 | Torx Truss Screw M6 X 30 |
| 965 | 250000748 | Torx Screw M6 X 45 |
| 970 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 990 | 705007916 | Support Skid Plate |
| 995 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1000 | 705006993 | LH Middle Side Pannel |
| 1020 | 705006994 | RH Middle Side Pannel |
| 1030 | 293150104 | Pop Rivet 3/16" |
| 1240 | 705008668 | Black, LH Lower Mudguard |
| 1260 | 705008669 | Black, RH Lower Mudguard |
| 1261 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 1262 | 234062670 | Stainless Steel Flat Washer |
| 1263 | 232561434 | Elastic Stop Nut M6 |
| 1264 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 1320 | 705008670 | Black, LH Rear Lower Mudguard |
| 1340 | 705008672 | RH Rear Lower Black Mudguard |
| 1341 | 250000712 | Torx Screw M6 X 20 |
| 1343 | 234062670 | Stainless Steel Flat Washer |
| 1344 | 232561434 | Elastic Stop Nut M6 |
| 1345 | 706200281 | Hardened Washer This part replaces 250200086. |
| 1347 | 250000712 | Torx Screw M6 X 20 |
| 2000 | 705007055 | Middle Protector Plate |
| 2020 | 705007056 | Rear Protector Plate |
| 2030 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 2040 | 705007227 | Rear Protector Plate |
| 2050 | 705007038 | RH Lateral Skid Plate |
| 2055 | 293150104 | Pop Rivet 3/16" |
| 2060 | 705007171 | Cup |
| 2070 | 210262050 | Hexagonal Head Screw |
| 2075 | 250200097 | Flat Washer |
| 2080 | 210262050 | Hexagonal Head Screw |
| 3620 | 291001932 | Pad |
