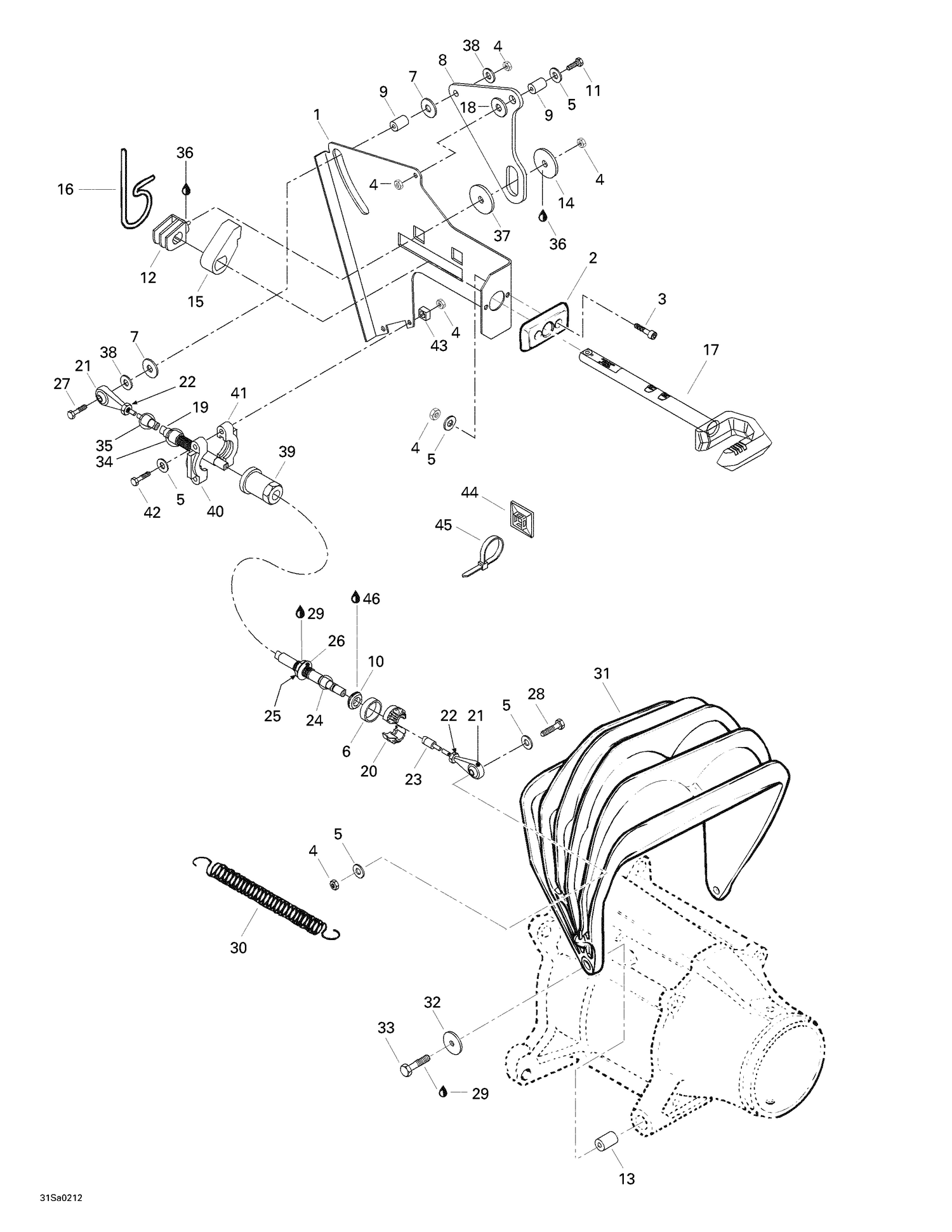

05- Reverse
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 271000261 | Reverse Support Plate |
| 2 | 271000057 | Guide Plate |
| 3 | 205462060 | SOCKET SCREW M6 X 20 - Call your local BRP dealership |
| 4 | 232561600 | Hex. Elastic Stop Nut M6 |
| 5 | 234061600 | Stainless Flat Washer M6 |
| 6 | 211100010 | Retaining Ring |
| 7 | 217001000 | Flat Washer 10 mm |
| 8 | 271000260 | Triangular Lever |
| 9 | 271000293 | Bushing |
| 10 | 211100009 | RUBBER WASHER - Call your local BRP dealership |
| 11 | 207162560 | Hex. Screw M6 X 25 |
| 12 | 271000269 | Sliding Block |
| 13 | 271000152 | Bushing |
| 14 | 271000061 | Washer |
| 15 | 271000268 | Catch |
| 16 | 271000270 | Spring |
| 17 | 271000288 | Reverse Handle |
| 18 | 217001000 | Flat Washer 10 mm |
| 19 | 277000282 | REVERSE CABLE - Call your local BRP dealership |
| 20 | 277000168 | Half-Ring |
| 21 | 277000153 | BALL JOINT - Call your local BRP dealership |
| 22 | 212100005 | Hex. Nut |
| 23 | 277000038 | Small Boot |
| 24 | 277000039 | LARGE BOOT - Call your local BRP dealership |
| 25 | 211100011 | Hex. Jam Nut 1/2-20 |
| 26 | 211200006 | FLAT WASHER, STAINLESS - Call your local BRP dealership |
| 27 | 207064060 | Hex. Screw M6 X 40 |
| 28 | 207064560 | HEX. SCREW M6 X 45 - Call your local BRP dealership |
| 29 | 293800060 | Loctite 243, 10 ml |
| 30 | 271000083 | Spring |
| 31 | 271000149 | Reverse Gate (Black) |
| 32 | 234081600 | Stainless, Flat Washer 8 mm |
| 33 | 207083560 | Hex. Screw M8 X 35 |
| 34 | 277000277 | Large Boot |
| 35 | 277000278 | SMALL BOOT - Call your local BRP dealership |
| 36 | 293550010 | Synthetic Grease, 400 G |
| 37 | 211200012 | Flat Washer 20 mm |
| 38 | 234062600 | Flat Washer M6, Stainless |
| 39 | 277000167 | KNOB ADJUSTER - Call your local BRP dealership |
| 40 | 277001528 | SUPPORT THRUST - Call your local BRP dealership This part replaces 277000162. |
| 41 | 271000257 | Thrust Support |
| 42 | 207065060 | Hex. Screw M6 X 50 |
| 43 | 269500252 | M6 Nut Housing Ass'y |
| 44 | 293750003 | TIE RAP MOUNT - Call your local BRP dealership |
| 45 | 293750002 | Tie Wrap 142 mm |
