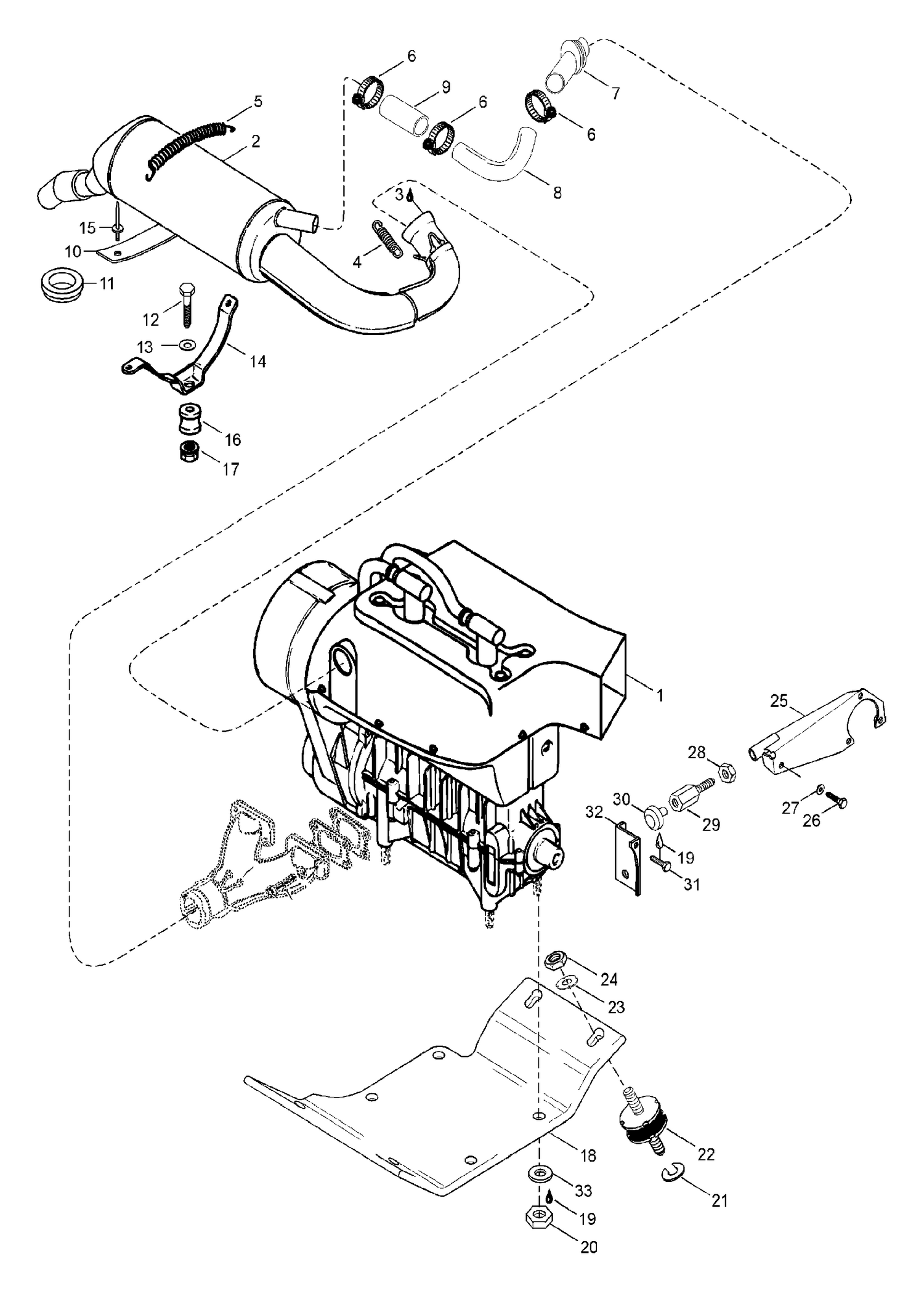

01- Engine Mount Plate/Muffler
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11000055 | Engine 377 |
| 2 | 5242554 | Muffler |
| 3 | 413706700 | Gasket silicone |
| 4 | 420938796 | Spring This part replaces 420938795. |
| 5 | 543225 | Spring L=190 |
| 6 | 27003 | Clamp |
| 7 | 5442631 | Force flow connector |
| 8 | 5340616 | Air tube |
| 9 | 5444461 | Hose |
| 10 | 543329 | Rubber |
| 11 | 570141300 | Rubber flange |
| 12 | 40034 | Screw M8x10 |
| 13 | 20014 | Lock washer |
| 14 | 535108 | Support |
| 15 | 36036 | Rivet |
| 16 | 28245 | BUMPER-RUBBER - Call your local BRP dealership |
| 17 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 18 | 549059 | Engine mount.plate |
| 19 | 293800005 | Loctite 271 (10 ml) This part replaces 413707400. |
| 20 | 232006414 | Hex. Nut M10 This part replaces 33004. |
| 21 | 546221 | Shim washer |
| 22 | 570127700 | RUBBER MOUNT - Call your local BRP dealership |
| 23 | 512056700 | Lock washer |
| 24 | 33012 | Nut M10 |
| 25 | 5344673 | Support plate |
| 26 | 40115 | Screw M6x12 |
| 27 | 20052 | Lock washer |
| 28 | 33063 | Nut M12 |
| 29 | 517244200 | Screw |
| 30 | 570025100 | Rod retainer |
| 31 | 40035 | Screw M8x16 |
| 32 | 5344446 | PLATE-STOP.WELD - Call your local BRP dealership |
