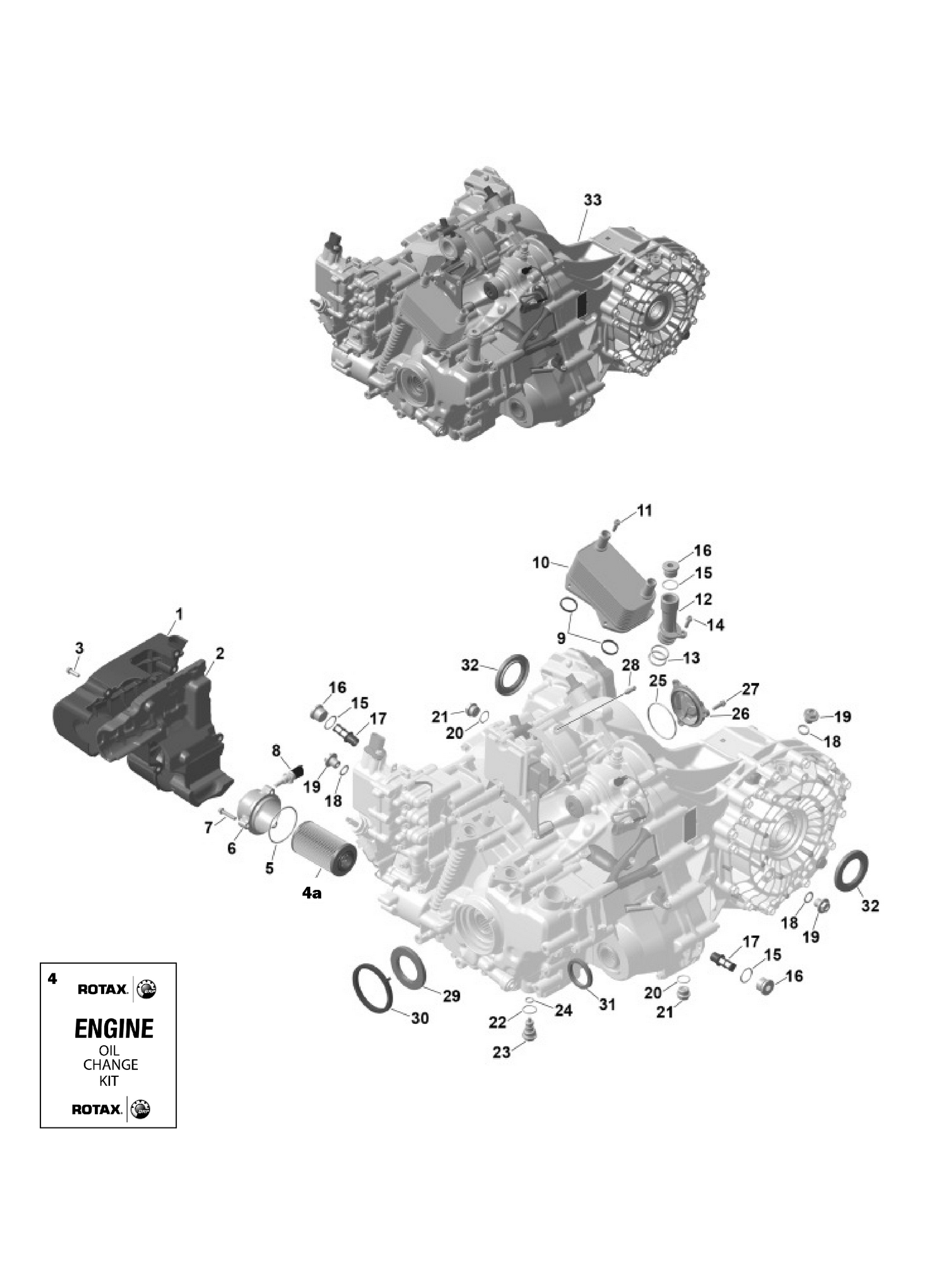

01- ROTAX - GearBox And Components
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420201356 | Cover Guard |
| 2 | 420297986 | Damping Mat |
| 3 | 420440207 | Torx Flange Screw M6 X 20 |
| 4 | 9779725 | Can-Am Dct Transmission Oil Change Kit |
| 4 | 9779910 | Can-Am Dct Transmission Oil Change Kit Eu |
| 4a | 420956127 | Oil Filter |
| 5 | 420230922 | O-Ring |
| 6 | 420210883 | Oil Filter Cover |
| 7 | 420440647 | Torx Flange Screw M6 X 30 |
| 8 | 278002895 | Temperature Sensor This part replaces 420222426. |
| 9 | 420230067 | Gasket |
| 10 | 420890182 | Oil Water Heat Exchanger |
| 11 | 420440207 | Torx Flange Screw M6 X 20 |
| 12 | 420956812 | Oil Filler Tube |
| 13 | 420430440 | O-Ring |
| 14 | 420440207 | Torx Flange Screw M6 X 20 |
| 15 | 420650467 | Gasket Ring A |
| 16 | 420640271 | Plug Screw |
| 17 | 420256906 | Oil Strainer |
| 18 | 420650350 | O-Ring |
| 19 | 420241662 | Plug Screw M14 X 1.5 |
| 20 | 420552280 | Crush Washer |
| 21 | 420840278 | Drain Plug M18 X 1.5 |
| 22 | 420630651 | Gasket Ring A |
| 23 | 420441682 | Magnet Screw M20 X 1.5 |
| 24 | 420430115 | O-Ring |
| 25 | 420230922 | O-Ring |
| 26 | 420210444 | Cap |
| 27 | 420440207 | Torx Flange Screw M6 X 20 |
| 28 | 420924724 | Hose Nipple |
| 29 | 420230422 | Oil Seal |
| 30 | 420230211 | Gasket Ring |
| 31 | 420230137 | Oil Seal |
| 32 | 420230420 | Oil Seal |
