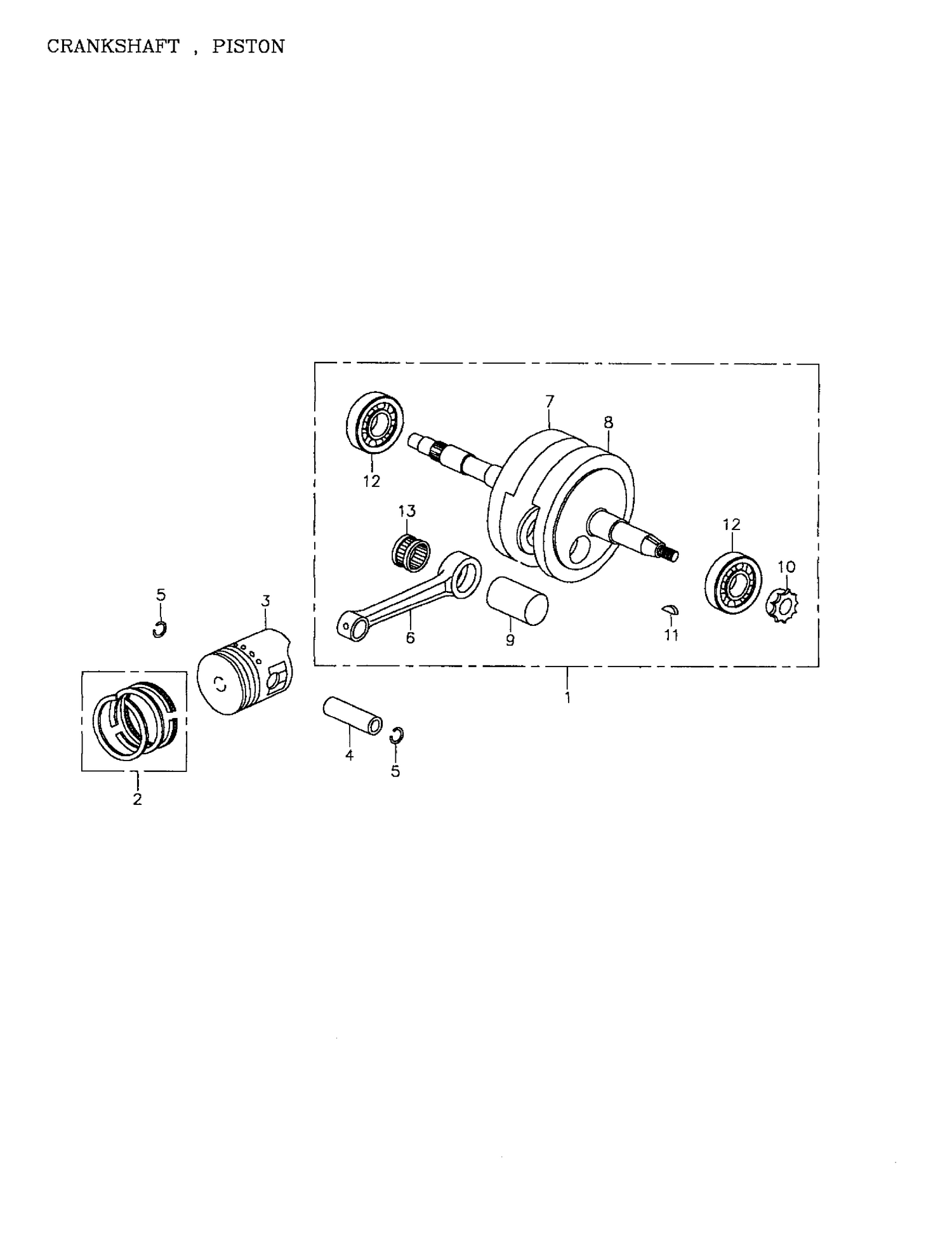

01- Crankshaft And Pistons (172-10)
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A13000152000 | Crankshaft Ass'y |
| 2 | A13011152000 | Piston Ring Set |
| 3 | A13100152000 | PISTON - Call your local BRP dealership |
| 4 | A13111152000 | PISTON PIN, 12 X 15 X 38 - Call your local BRP dealership |
| 5 | A13115120000 | Clip Piston Pin, 15 X 17 X 1.0 |
| 6 | A13201152000 | CRANK CONNECTING ROD - Call your local BRP dealership |
| 7 | A13311152000 | Right Crank |
| 8 | A13321152000 | Left Crank |
| 9 | A13381152000 | Crank Pin |
| 10 | A14311152000 | Timing Sprocket |
| 11 | A90471152000 | SEMICYCLE KEY - Call your local BRP dealership |
| 12 | A9610063040 | Radial Ball Bearing, 6304 |
