Home / BRP / 2008 / MX Z / MX Z X 600 HO SDI, 2008 000BK8A00 000BK8B00 000BK8C00 000BK8D00 000BK8E00 / 01- Engine And Engine Support 600 HO

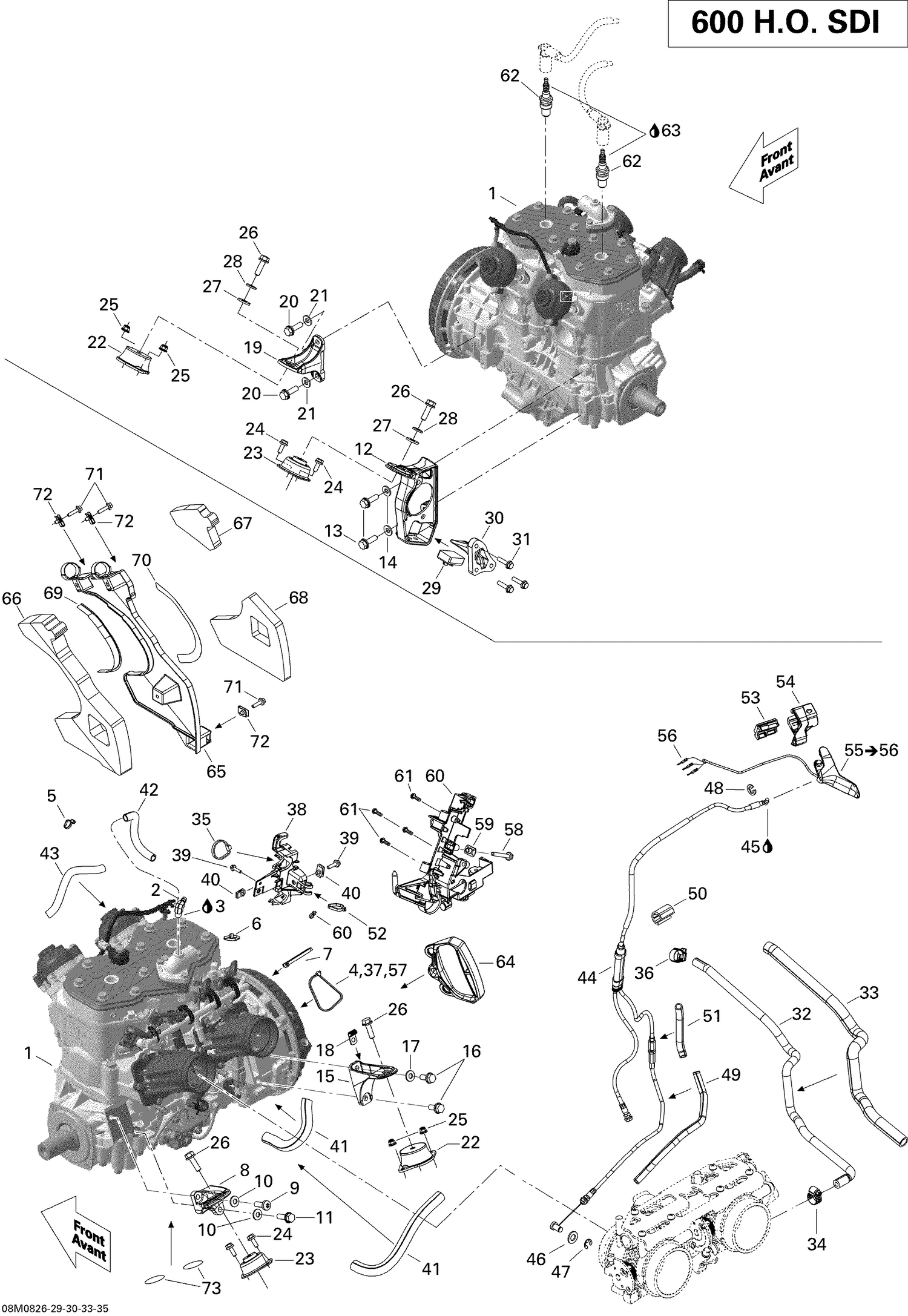

01- Engine And Engine Support 600 HO

01- Engine And Engine Support 600 HO

Parts (71)

RefPart NumberDescription
1 400604031 Engine 593 H.O. SDI
2 293700045 ELBOW FITTING 90 - Call your local BRP dealership
3 219704455 Was 293800018 Loctite 592, 50 ml
4 293750008 Tie Wrap 368 mm
5 414115200 Tie-Rap 180 mm
6 414115200 Tie-Rap 180 mm
7 414115200 Tie-Rap 180 mm
8 512060478 Rear Support, PTO This part replaces 512060173.
9 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
10 234281474 Conical Spring Washer M8
11 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
12 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060203.
13 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
14 234281474 Conical Spring Washer M8
15 512060559 Rear Support, MAG This part replaces 512060114.
16 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
17 234281474 Conical Spring Washer M8
18 415052400 Bracket
19 512060108 FRONT SUPPORT, MAG - Call your local BRP dealership
20 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
21 234281474 Conical Spring Washer M8
22 512060729 Rubber Mount This part replaces 512060246.
23 512061507 Vibration Damper This part replaces 512060387.
24 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
25 233261414 Hex. Flange Elastic Nut M6 x 1.0
26 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
27 503183200 Yellow, Washer
28 234281474 Conical Spring Washer M8
29 512060179 STOPPER - Call your local BRP dealership
30 512060576 Stopper Support This part replaces 512060180.
31 207562544 Hex. Flange Screw M6 X 25
32 512060740 Formed Hose, Output This part replaces 512060349.
33 219704408 Tubing 16 Mm 1000Mm Long
34 293650170 Tridon Gear Clamp
35 414115200 Tie-Rap 180 mm
36 293650025 Oetiker Gear Clamp
37 414115200 Tie-Rap 180 mm
38 512060298 Solenoid Support
39 207652044 Hex.Flange Screw M5 X 20
40 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
41 219704400 Was 409901800 Tubing (13 mm)
42 219704399 Was 409901700 Tubing (9 mm)
43 219704407 Tubing 10 MM 1000MM Long
44 512060238 THROTTLE CABLE - Call your local BRP dealership This part replaces 512060397.
45 219704453 Was 293550004 Dielectric Grease, 150 g
46 234081100 Flat Washer 8 mm, Nylon
47 414753500 Circlip
48 414274500 Circlip
49 219704425 Tubing 6 Mm 3000Mm Long
50 512060313 Protector
51 219704407 Tubing 10 MM 1000MM Long
52 414115200 Tie-Rap 180 mm
53 512060198 Upper Housing Ass'y
54 512060197 LOWER HOUSING - Call your local BRP dealership
56 515175232 Male Terminal
57 293750001 Tie Wrap 94 mm
58 250000213 Hex. Flange Screw M6 X 1.0 X 45
59 293100003 Nut Welded, M6
60 512060279 COIL SUPPORT - Call your local BRP dealership
61 241151640 Hex. Flange Screw K50 X 2.24 X 16
62 512060029 Spark Plug NGK BR8ECS
63 219704453 Was 293550004 Dielectric Grease, 150 g
64 512060136 Starter Grip
65 512060339 NOISE SHIELD - Call your local BRP dealership
66 512060343 Interior Noise Foam
67 512060344 Upper Exterior Noise Foam
68 512060362 LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership
69 512060574 Heat Shield This part replaces 512060358.
70 512060575 Heat Shield This part replaces 512060371.
71 207652044 Hex.Flange Screw M5 X 20
72 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
