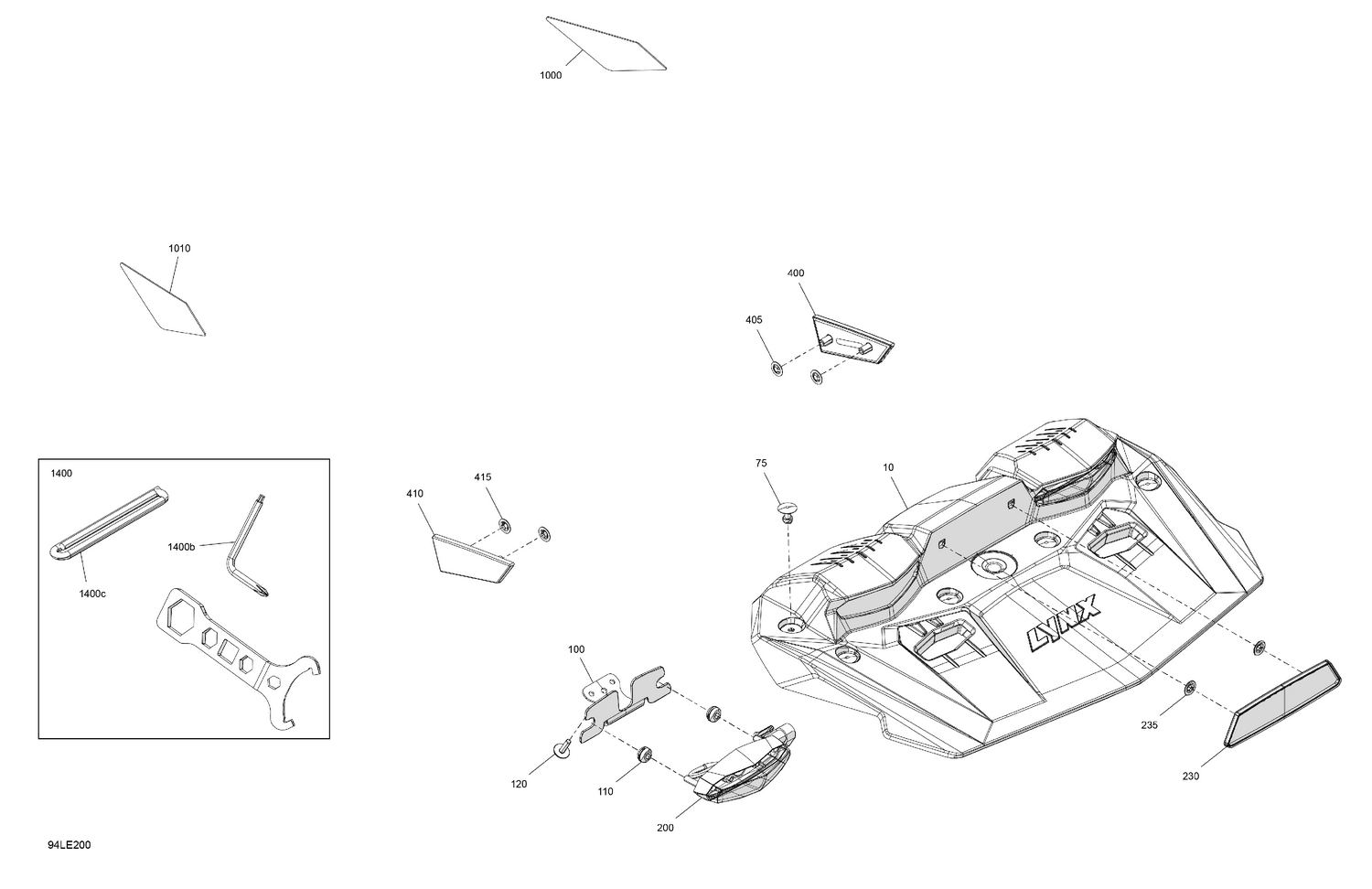

09- Miscellaneous - Utilities
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002704 | Snow Guard |
| 75 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 100 | 520002906 | Taillitght Support |
| 110 | 293720101 | Grommet |
| 120 | 250000725 | Screw M4 X 16 |
| 200 | 520003188 | Tail Light |
| 230 | 705015952 | Rear Reflector |
| 235 | 732610072 | Push Nut |
| 400 | 705017786 | Amber, RH Rear Reflector |
| 405 | 732610072 | Push Nut |
| 410 | 705017787 | Amber, LH Rear Reflector |
| 415 | 732610072 | Push Nut |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
