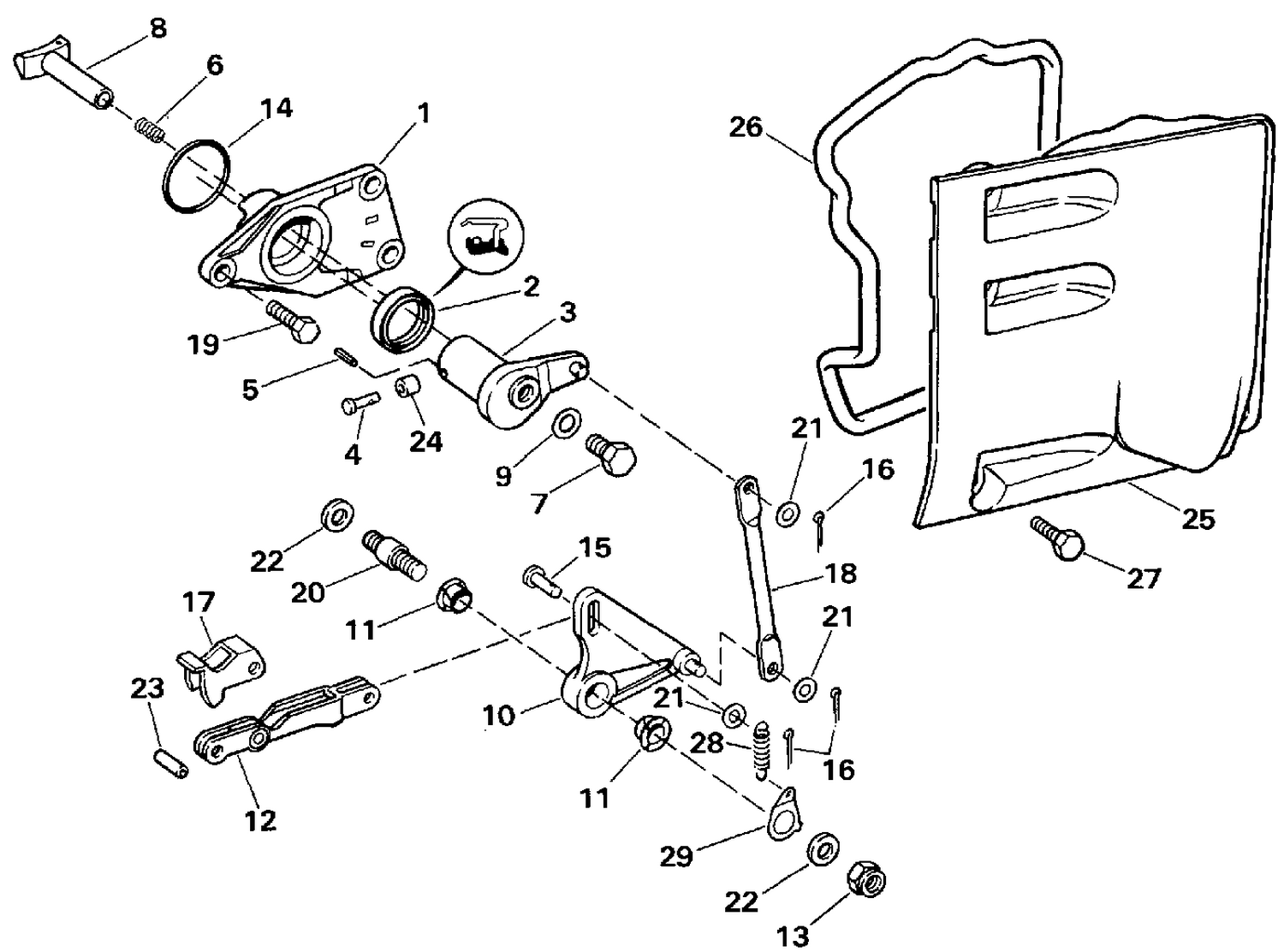

| Ref | Part Number | Description |
|---|
| 1 |
3853980 |
HOUSING & BEARING This part replaces 0986485. |
| 2 |
3853244 |
SEAL, Shift actuator This part replaces 0914472. |
| 3 |
3854054 |
PISTON & PIN This part replaces 0987041. |
| 4 |
3852948 |
PIN, Shift actuator stop This part replaces 0913989. |
| 5 |
3852947 |
ROLL PIN, Shift actuator stop This part replaces 0913988. |
| 6 |
3852921 |
SPRING, Shift shoe This part replaces 0913910. |
| 7 |
3852923 |
SCREW, Shift shoe stop This part replaces 0913912. |
| 8 |
3852927 |
SHIFT SHOE This part replaces 0913918. |
| 9 |
3852929 |
SHIM, Shift shoe screw, 0.010 in. This part replaces 0913924. |
| 10 |
3854146 |
BELLCRANK & PIN This part replaces 0986194. |
| 12 |
3852924 |
LINK, Guide to bellcrank This part replaces 0913913. |
| 14 |
3852928 |
O-RING, Shift actuator housing This part replaces 0913921. |
| 15 |
3852926 |
PIN, Link to bellcrank This part replaces 0913917. |
| 17 |
3853438 |
RETAINER, Link to cable guide This part replaces 0915092. |
| 18 |
3852922 |
ROD, Bellcrank to actuator This part replaces 0913911. |
| 19 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 20 |
3852925 |
STUD, Bellcrank to housing This part replaces 0913914. |
| 23 |
3853437 |
PIN, Link to shift cable guide This part replaces 0915091. |
| 24 |
3853281 |
ROLLER, Shift stop pin This part replaces 0914592. |
| 25 |
3852998 |
COVER, Gearcase, port This part replaces 0914071. |
| 26 |
3853000 |
SEAL, Port side cover This part replaces 0914073. |
| 27 |
3853428 |
SCREW, Anchor bracket This part replaces 0915068. |
| 28 |
3853323 |
SPRING, Link to bellcrank This part replaces 0914759. |
