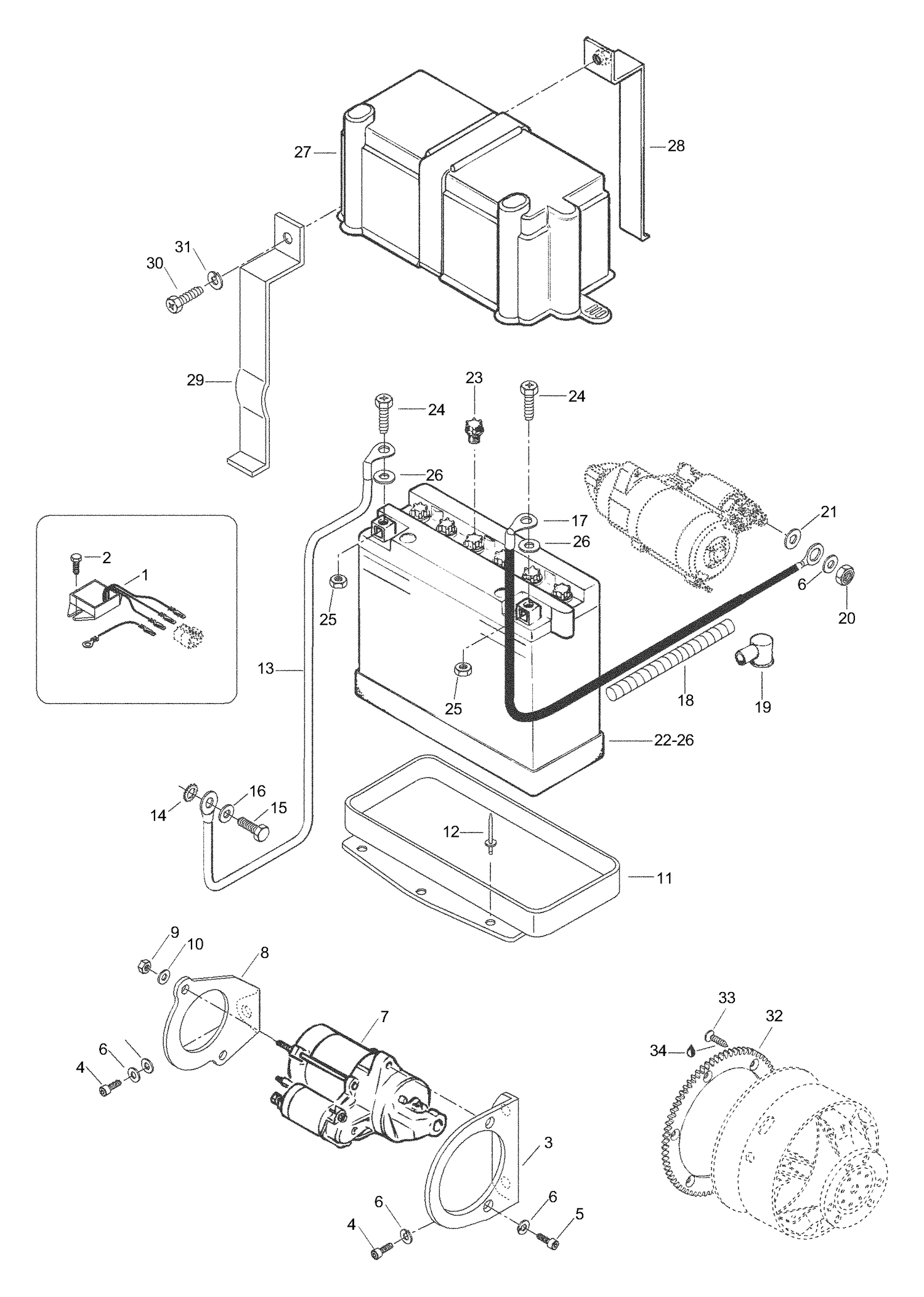

10- Electric Starter
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515163900 | VOLTAGE REGULATOR - Call your local BRP dealership |
| 2 | 40322 | SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 3 | 420951413 | Starter bracket, PTO-sid |
| 4 | 40305 | Allen screw M8x20 |
| 5 | 40289 | Allen screw M8x25 |
| 6 | 20014 | Spring washer |
| 7 | 410212400 | ELECTRIC STARTER ASSY - Call your local BRP dealership |
| 8 | 420951427 | Starter bracket, MAG-si |
| 9 | 33009 | Nut elastic M5 |
| 10 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 11 | 517286200 | Battery seat |
| 12 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 13 | 515175425 | Ground wire |
| 14 | 20033 | Ext. Tooth lock washer |
| 15 | 40029 | Screw M6x16 |
| 16 | 20003 | Washer |
| 17 | 515175488 | Battery wire |
| 18 | 28012 | Spiral tube |
| 19 | 570151000 | Cap protection |
| 20 | 33006 | Nut M8 |
| 21 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 23 | 410300800 | Battery cap |
| 24 | 207161644 | Screw M6x16 |
| 25 | 232061414 | Nut M6 |
| 26 | 391302100 | FLAT WASHER - Call your local BRP dealership |
| 27 | 570022000 | Battery cover |
| 28 | 517286000 | Steel strip |
| 29 | 517286100 | Steel strip |
| 30 | 40864 | Screw |
| 31 | 20013 | Spring washer |
| 32 | 417009400 | Ring gear |
| 33 | 236281684 | Hex. Screw M8 X 16 |
