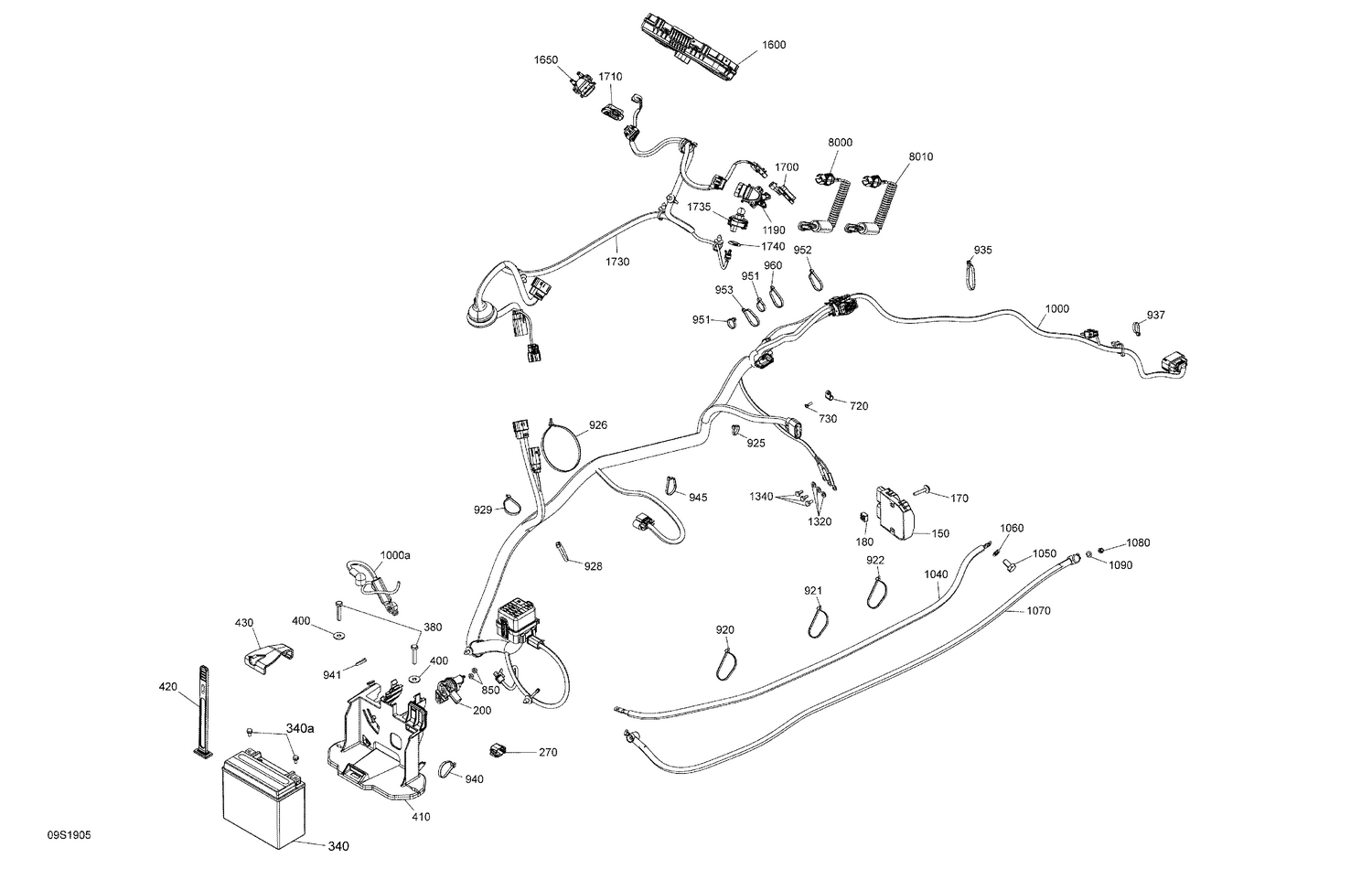

10- Electrical System
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710001103 | Voltage Regulator |
| 170 | 250000969 | Hex Screw SEMS M6X35, SS |
| 180 | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 200 | 278003012 | Starter Relay |
| 270 | 710004904 | Connector Plug |
| 340a | 250000282 | Battery Bolt Kit |
| 380 | 207184060 | Hex. Screw M8 X 40 |
| 400 | 234082600 | Flat Washer 8 mm, Stainless |
| 410 | 278003671 | Battery Support |
| 420 | 269502417 | Strap This part replaces 269500408. |
| 430 | 278003521 | Clip |
| 720 | 293650257 | Hose Clamp |
| 730 | 250000287 | Flange Torx Screw K40 X 16 |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 920 | 414115200 | Tie-Rap 180 mm |
| 921 | 414115200 | Tie-Rap 180 mm |
| 922 | 414115200 | Tie-Rap 180 mm |
| 925 | 414115200 | Tie-Rap 180 mm |
| 926 | 293750008 | Tie Wrap 368 mm |
| 928 | 293750008 | Tie Wrap 368 mm |
| 929 | 293750008 | Tie Wrap 368 mm |
| 935 | 293750008 | Tie Wrap 368 mm |
| 937 | 414115200 | Tie-Rap 180 mm |
| 940 | 414115200 | Tie-Rap 180 mm |
| 941 | 414115200 | Tie-Rap 180 mm |
| 945 | 414115200 | Tie-Rap 180 mm |
| 951 | 414115200 | Tie-Rap 180 mm |
| 952 | 414115200 | Tie-Rap 180 mm |
| 953 | 414115200 | Tie-Rap 180 mm |
| 960 | 414115200 | Tie-Rap 180 mm |
| 1000a | 278003716 | Battery Cable |
| 1040 | 278003270 | Battery Ground Cable |
| 1050 | 207302060 | Hex. Screw M10 X 20, Scotch Grip |
| 1060 | 234000600 | Flat Washer 10 mm, Stainless |
| 1070 | 278003370 | Cable-Starter |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1190 | 278002284 | LH Throttle Sensor |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1650 | 278002283 | Throttle Position Sensor |
| 1710 | 278002602 | Switch RH Mode/Set |
| 1735 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 1740 | 278002963 | Safety Nut (DESS Switch) |
| 8000 | 278003401 | Safety Lanyard Ass'y, Learning / RFID |
