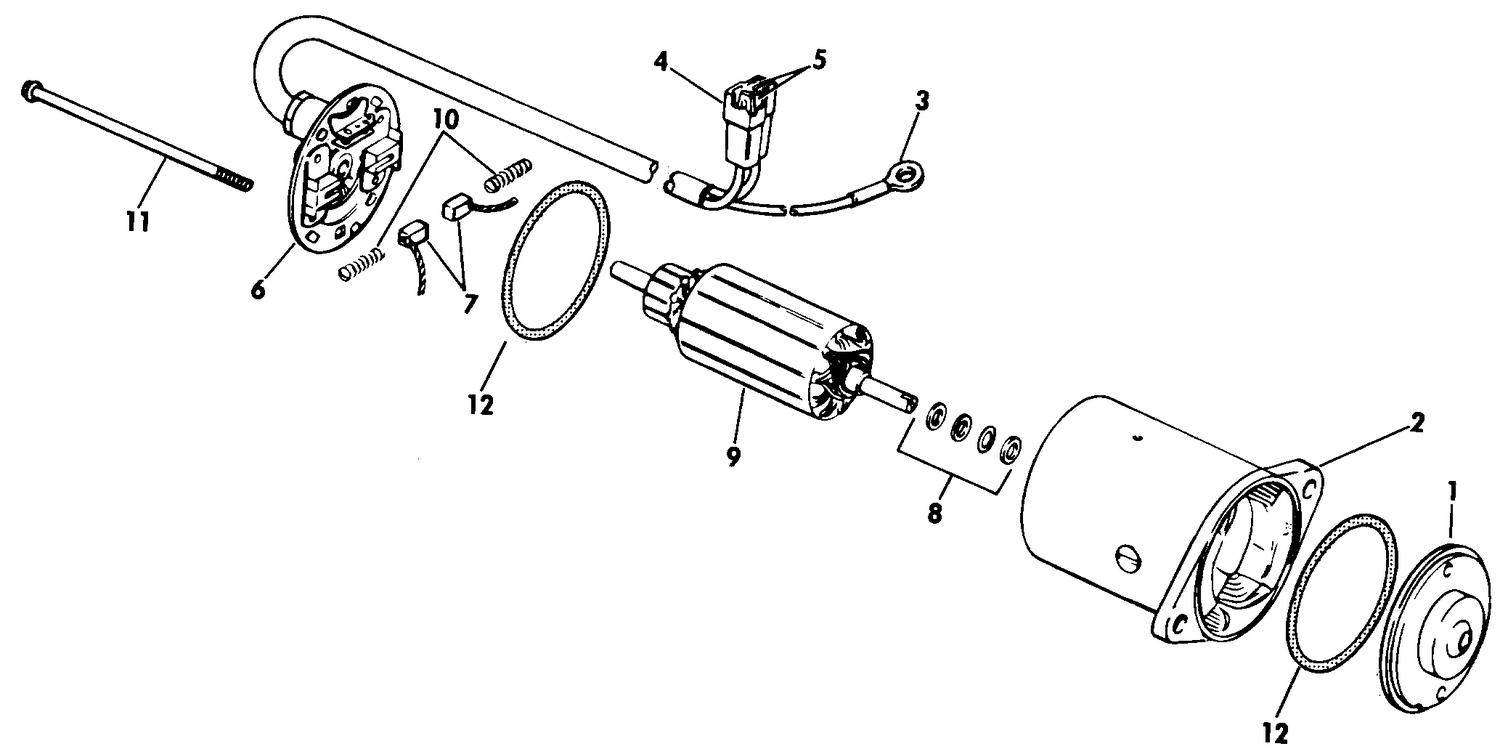

TILT MOTOR GROUP

TILT MOTOR GROUP

Parts (8)

RefPart NumberDescription
1 0982309 HEAD ASSEMBLY, Drive end
2 0982860 FRAME & FIELD COIL ASSY
4 0510472 CONNECTOR
6 0982311 HEAD ASSY, Commutator end
8 0380752 THRUST WASH AND SPACER PKG
9 0982314 ARMATURE ASSEMBLY
11 0982308 THRU BOLT PACKAGE
0982706 0982706 TILT MOTOR ASSEMBLY
