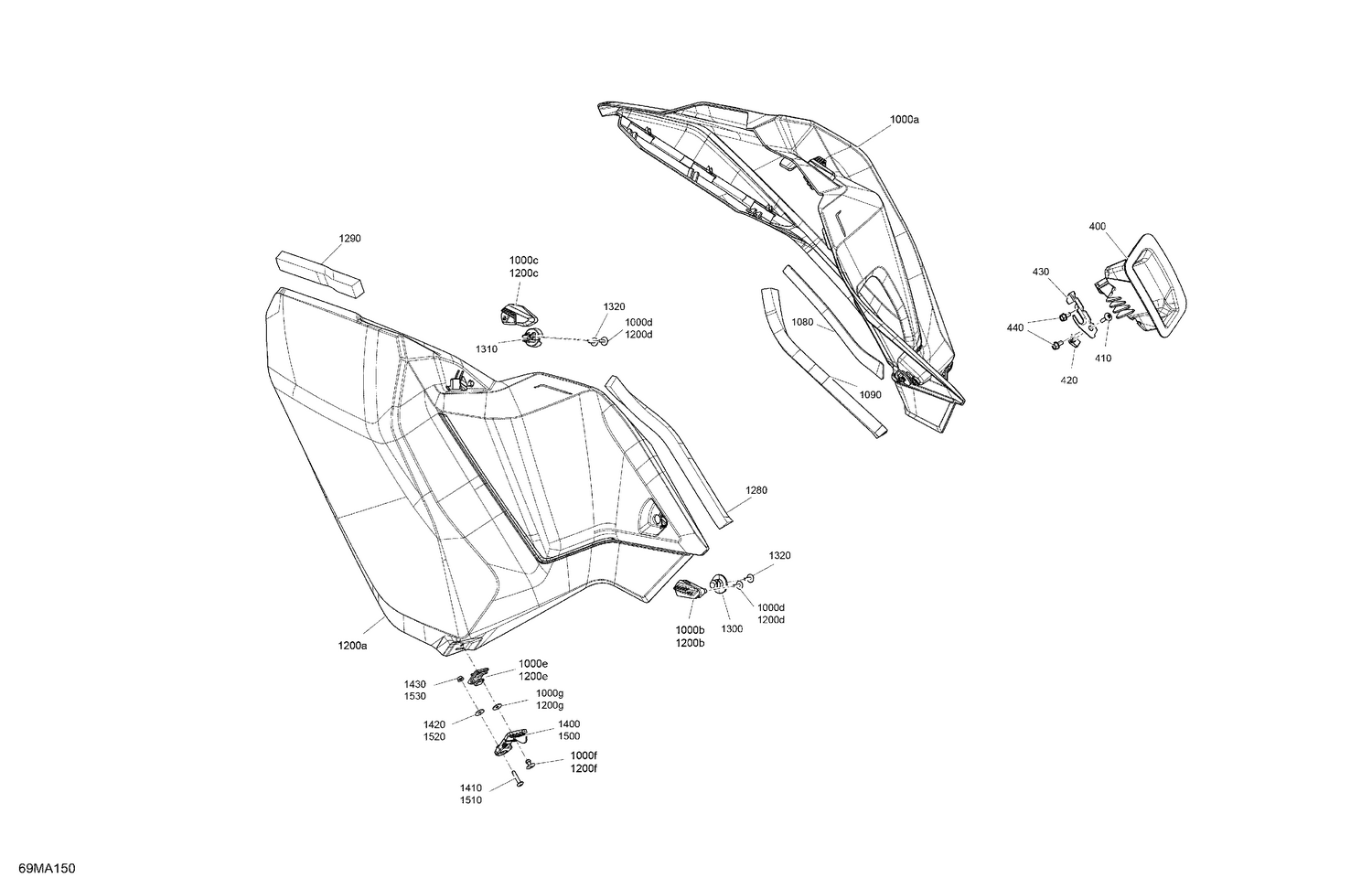

07- Body - Side Panels
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 400 | 517306759 | RH Console |
| 410 | 250000586 | Torx Truss M5 X 20 |
| 420 | 250000958 | Panel Nut M5 X 0.8 |
| 430 | 517306315 | Rope Guide |
| 440 | 210261250 | Hex. Flange Screw M6 X 12 |
| 1000a | 517306871 | Deep Black, RH Panel |
| 1000b | 517305773 | RH Rear Latch |
| 1000c | 517305979 | RH Front Latch |
| 1000d | 250000725 | Screw M4 X 16 |
| 1000e | 517306311 | RH Hook |
| 1000f | 293150104 | Pop Rivet 3/16" |
| 1000g | 517124300 | Washer |
| 1080 | 517306262 | Rubber Sheet |
| 1090 | 517306480 | RH Rear Panel Foam |
| 1200a | 517306985 | LH Panel |
| 1200b | 517305774 | LH Rear Latch |
| 1200c | 517305980 | LH Front Latch |
| 1200d | 250000725 | Screw M4 X 16 |
| 1200e | 517306312 | LH Hook |
| 1200f | 293150104 | Pop Rivet 3/16" |
| 1200g | 517124300 | Washer |
| 1280 | 517306479 | LH Rear Panel Foam |
| 1290 | 517306594 | Foam |
| 1300 | 517305985 | Rear Stud |
| 1310 | 517305988 | Front Stud |
| 1320 | 250000725 | Screw M4 X 16 |
| 1400 | 517306309 | RH Lower Latch |
| 1410 | 250000762 | Torx Screw M5 X 25 |
| 1420 | 250200140 | Washer |
| 1430 | 233151414 | Hex. Flange Nut M5 |
| 1500 | 517306310 | LH Lower Latch |
| 1510 | 250000762 | Torx Screw M5 X 25 |
| 1520 | 250200140 | Washer |
