Parts Catalog

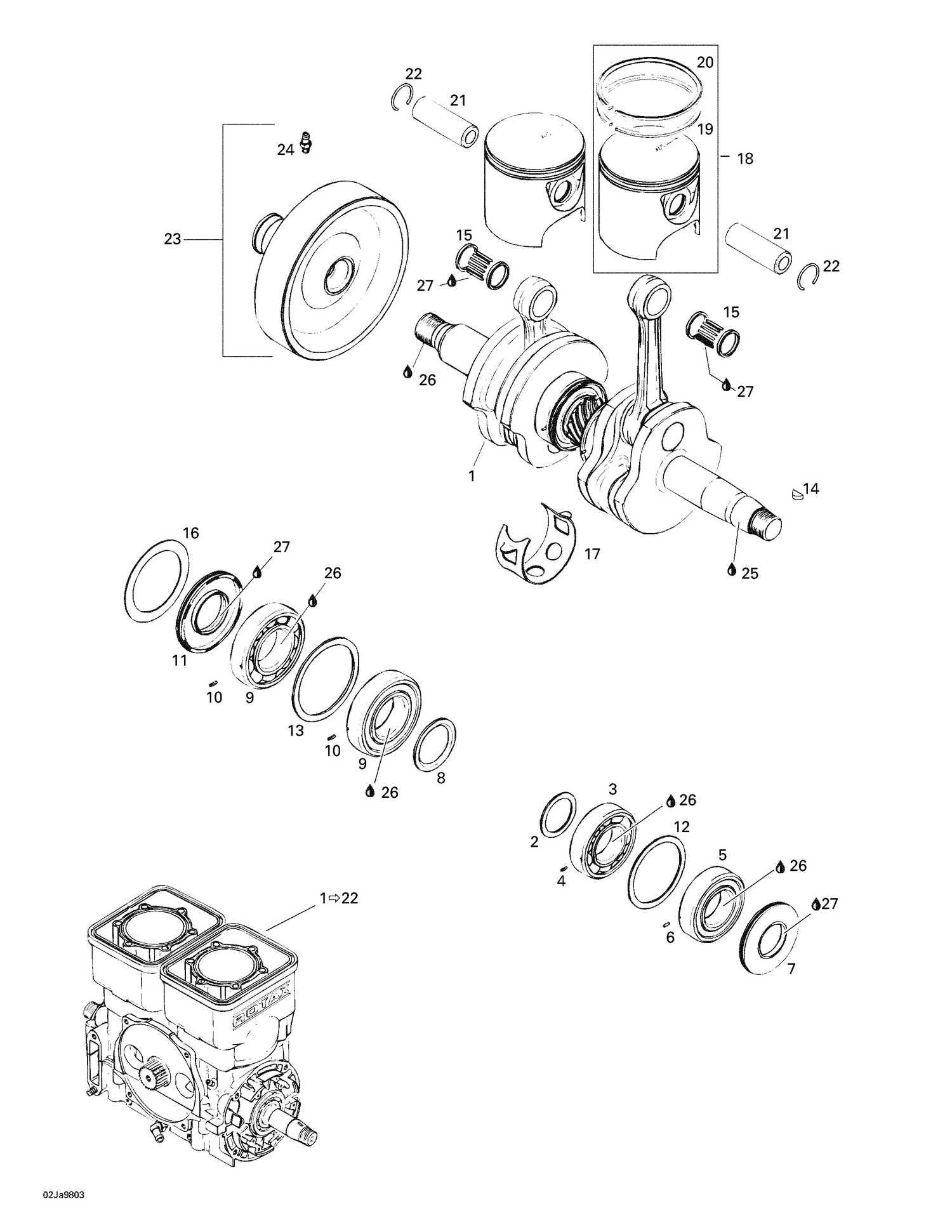

01- Crankshaft And Pistons

Parts (27)

Ref	Part Number	Description
2	420827448	RING-DISTANCE RING - Call your local BRP dealership This part replaces 290827447.
4	420929972	Dowel Pin
5	420832538	BALL BEARING - Call your local BRP dealership This part replaces 290832533.
6	290832470	Rolled Pin
7	420830749	Oil Seal This part replaces 290830749.
8	420827760	DISTANCE RING - Call your local BRP dealership
10	420929972	Dowel Pin
11	420831952	Oil Seal This part replaces 290831952.
12	420827050	RETAINING DISK - Call your local BRP dealership
13	420927710	Retaining Disk
14	420246055	Woodruff Key
15	420832421	NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.
16	290926060	RETAINING SHIM - Call your local BRP dealership
17	290926070	Retaining Ring
19	290815080	Rectangular Ring 82.00 mm
20	290815070	Semi-Trapez Ring 82.00 mm
21	420916404	Piston Pin This part replaces 290916401.
22	420845100	CIRCLIP - Call your local BRP dealership
24	290499113	GREASE FITTING - Call your local BRP dealership
25	293800060	Loctite 243, 10 ml This part replaces 293800015.
26	293800023	LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
27	413707000	Dow Corning 111, 150 g
28	290886317	Engine Gasket Set (Not Shown)
290815071	Semi-Trapez	Ring 82.25 mm 290815071
290815072	Semi-Trapez	Ring 82.50 mm 290815072
290815081	Rectangular	Ring 82.25 mm 290815081
290815082	Rectangular	Ring 82.50 mm 290815082
