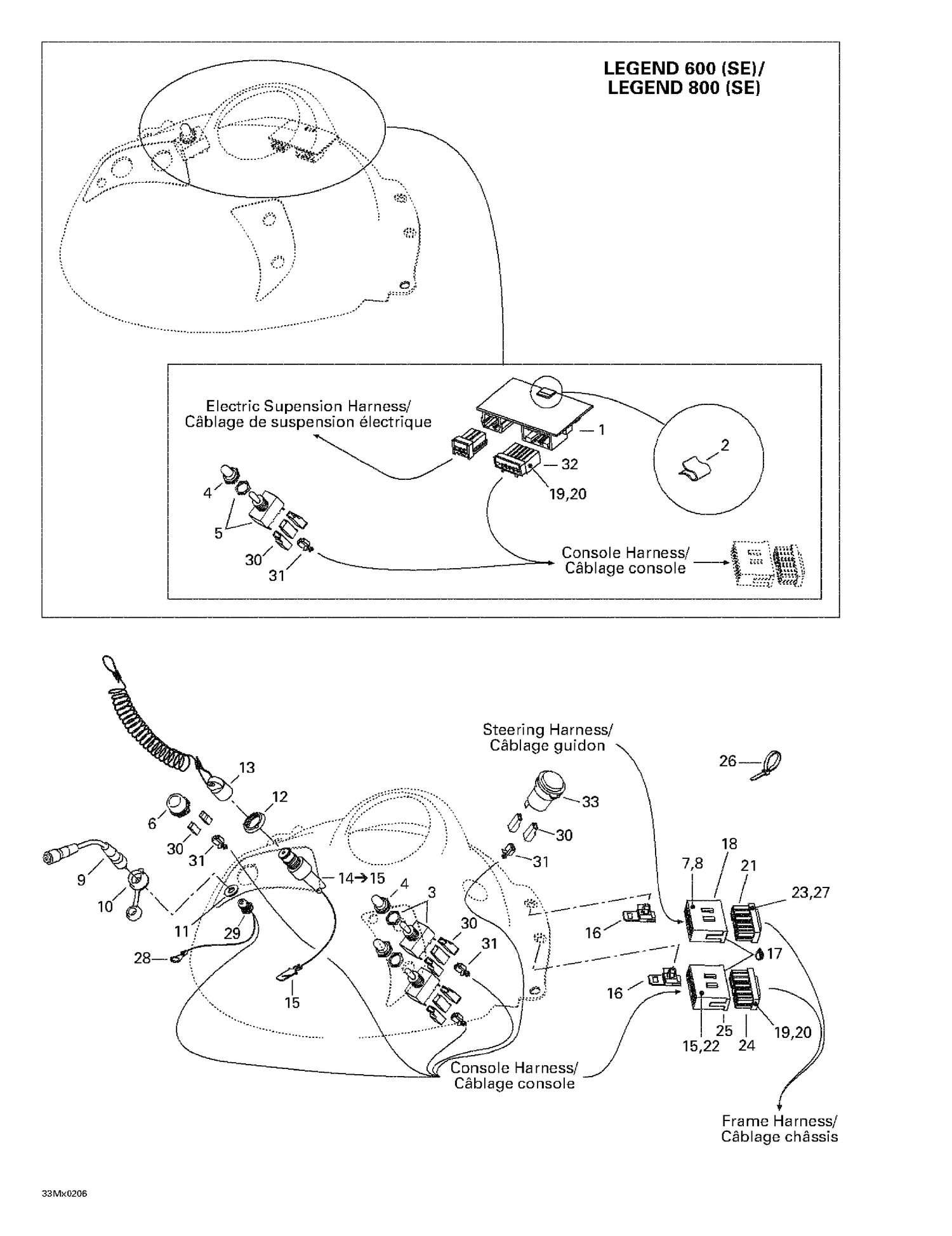

10- Electrical System 2
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 410107300 | Switch (Heating Grip) |
| 4 | 515175281 | Switch Cover |
| 6 | 415130372 | Push Button This part replaces 415101200. |
| 7 | 515175232 | Male Terminal |
| 8 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 9 | 515175971 | EXTENSION - Call your local BRP dealership This part replaces 515175161. |
| 10 | 572103300 | Cap |
| 11 | 503175800 | Washer |
| 12 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 13 | 515178284 | DESS This part replaces 515166900. |
| 15 | 515175232 | Male Terminal |
| 16 | 515175283 | Housing Support |
| 17 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 18 | 515175352 | MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 19 | 515175231 | Female Terminal |
| 20 | 515175235 | Female Terminal |
| 21 | 515175350 | Female Terminal Housing, 13 Circuits |
| 22 | 515175234 | Male terminal |
| 23 | 515175282 | Female Terminal |
| 24 | 278001676 | Female Terminal Housing (12 circuits) |
| 25 | 278001675 | Male Terminal Housing (12 circuits) |
| 26 | 293750001 | Tie Wrap 94 mm |
| 27 | 515175231 | Female Terminal |
| 28 | Not | Available As Spare Part - Ring Terminal |
| 29 | Not | Available As Spare Part - Visor Plug |
| 30 | 409010400 | Female Terminal Housing, 1 Circuit |
| 31 | 409010100 | Female Terminal |
| 32 | 515175231 | Female Terminal |
| 34 | 515175639 | Frame Harness (Not Shown) |
