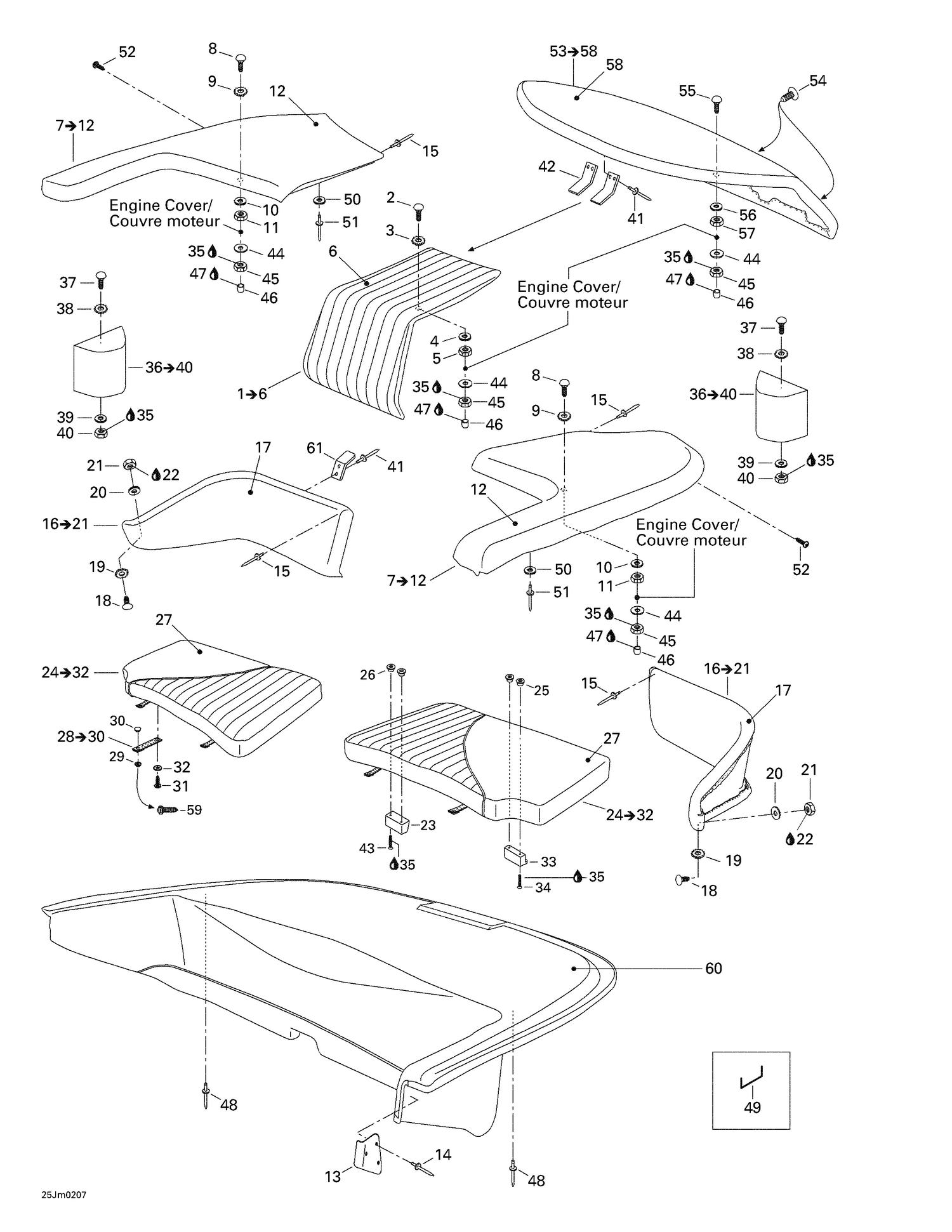

| Ref | Part Number | Description |
|---|
| Not |
Available |
As Spare Part - Sundeck Backrest Cover (Starboard) |
| 2 |
204000130 |
Elevator Bolt |
| 3 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 4 |
234461608 |
External Serrated Lock Washer 6 mm |
| 5 |
204100060 |
Hex. Jam Nut |
| 6 |
204611855 |
Center Cushion Cover |
| 8 |
204100088 |
Screw #8 X 1/2” |
| 9 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 10 |
234461608 |
External Serrated Lock Washer 6 mm |
| 11 |
204100060 |
Hex. Jam Nut |
| 12 |
204611857 |
Cushion Cover (Port Side) |
| 13 |
204611599 |
Upholstery Cap, Port Side |
| 14 |
293150037 |
Avdel Rivet 3/16" |
| 15 |
293150013 |
Pop Rivet 3/16" |
| 18 |
204000130 |
Elevator Bolt |
| 19 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 20 |
234461608 |
External Serrated Lock Washer 6 mm |
| 21 |
204100060 |
Hex. Jam Nut |
| 22 |
293800060 |
Loctite 243, 10 ml |
| 23 |
204611805 |
LATCH - Call your local BRP dealership |
| 25 |
204100021 |
TEE-NUT 1/4?- 20 - Call your local BRP dealership |
| 26 |
204100044 |
TEE-NUT #10-32 - Call your local BRP dealership |
| 27 |
204611879 |
Rear Seat Cushion Cover (Port Side) |
| 29 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 30 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 31 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 32 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 33 |
204611940 |
SEAT LATCH - Call your local BRP dealership |
| 34 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 35 |
293800060 |
Loctite 243, 10 ml |
| 36 |
204612627 |
Sound Pad, Port Side |
| 37 |
204000130 |
Elevator Bolt |
| 38 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 39 |
234461608 |
External Serrated Lock Washer 6 mm |
| 40 |
204100060 |
Hex. Jam Nut |
| 41 |
293150008 |
Pop Rivet 3/16" |
| 43 |
204100075 |
Screw 10-32 X 1-1/4” |
| 44 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 45 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 46 |
204130008 |
Plastic Cap, White |
| 48 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 49 |
Not |
Available As Spare Part - Staple 1/4" |
| 50 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 51 |
293150285 |
Pop RIvet 1/8 X ,375 This part replaces 293150006. |
| 52 |
211000021 |
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership |
| 54 |
293730006 |
Black, Dart |
| 55 |
204100039 |
SCREW 1/4?-20 X 2? - Call your local BRP dealership |
| 56 |
234461608 |
External Serrated Lock Washer 6 mm |
| 57 |
204100060 |
Hex. Jam Nut |
| 59 |
204100046 |
Threaded Stud 5/8” |
| 60 |
204071478 |
Engine Cover |
| 204611600 |
Upholstery |
Cap, Starboard 204611600 |
| 204611792 |
Sundeck |
Center Cushion (185 Single dist. 204611792 |
| 204611831 |
Sundeck |
Cushion, Port Side 204611831 |
| 204611833 |
Sundeck |
Cushion, Starboard 204611833 |
| 204611835 |
Sundeck |
Backrest, Starboard 204611835 |
| 204611859 |
Cushion |
Cover (Starboard) 204611859 |
| 204611867 |
Rear |
Seat Cushion Cover (Starboard) 204611867 |
| 204611944 |
Front |
Seat Cushion Ass'y (Starboard) (18 204611944 |
| 204612027 |
Rear |
Seat Cushion (Starboard) 204612027 |
| 204612786 |
Sundeck |
Backrest, Port Side 204612786 |
| 204612787 |
Sundeck |
Backrest, Starboard 204612787 |
