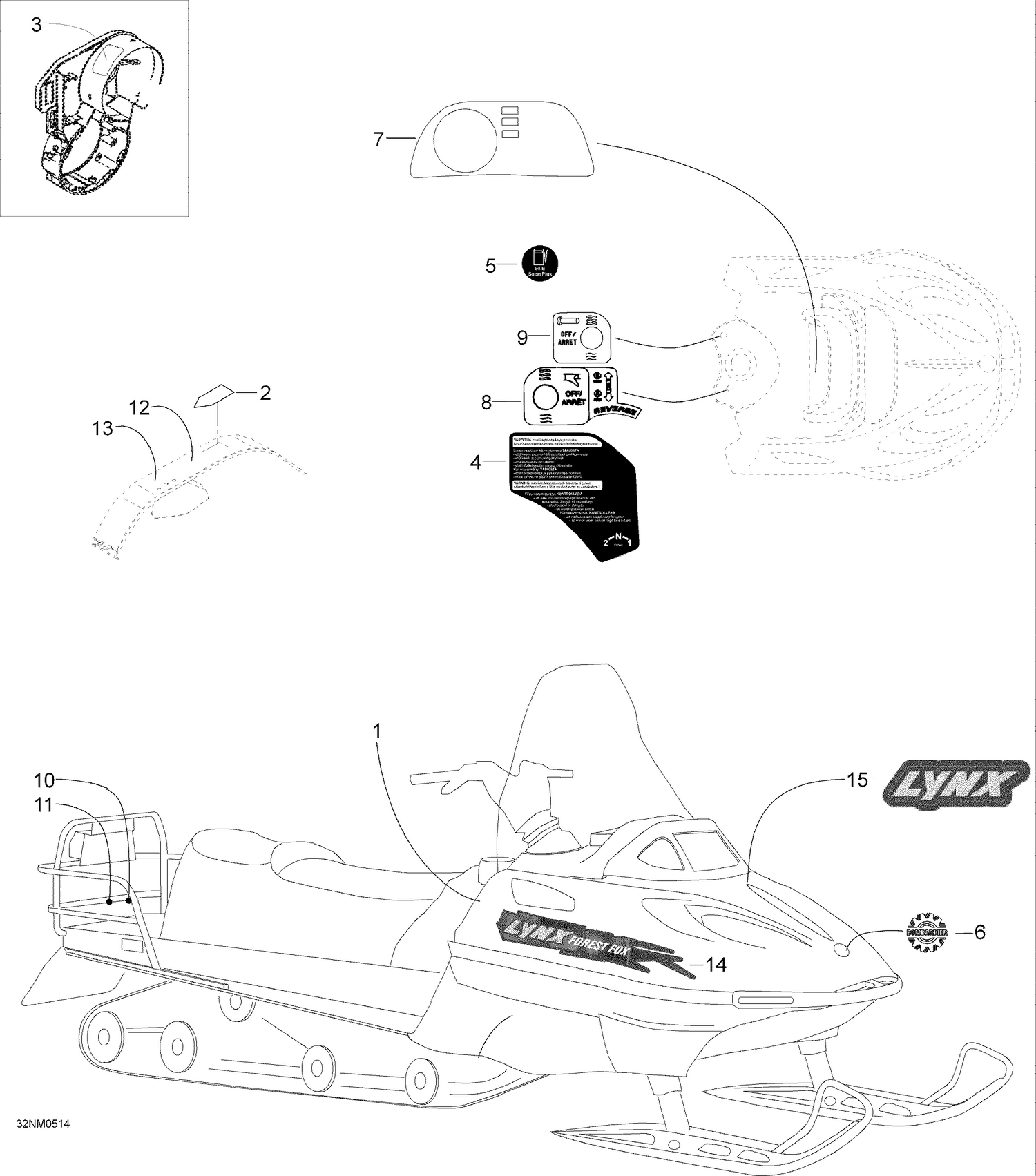

09- Decals
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5447012 | Label, oil check |
| 2 | 5447014 | Warning label |
| 3 | 5447016 | Fan belt label |
| 4 | 5346801 | Instruction label |
| 5 | 5447020 | Fuel label |
| 6 | 516008738 | Logo 48mm "BRP" This part replaces 516002487. |
| 7 | 5346239 | Dash decal |
| 8 | 516000262 | Heat thump label |
| 9 | 414898500 | Heat grip decal |
| 10 | 5447930 | Instruction label |
| 11 | 605448799 | PULLING BAR DECAL - Call your local BRP dealership |
| 12 | 5447124 | Instruction label |
| 13 | 605448801 | Warning label |
| 14 | 605351065 | R.H. hood decal |
| 14 | 605351066 | L.H. hood decal |
