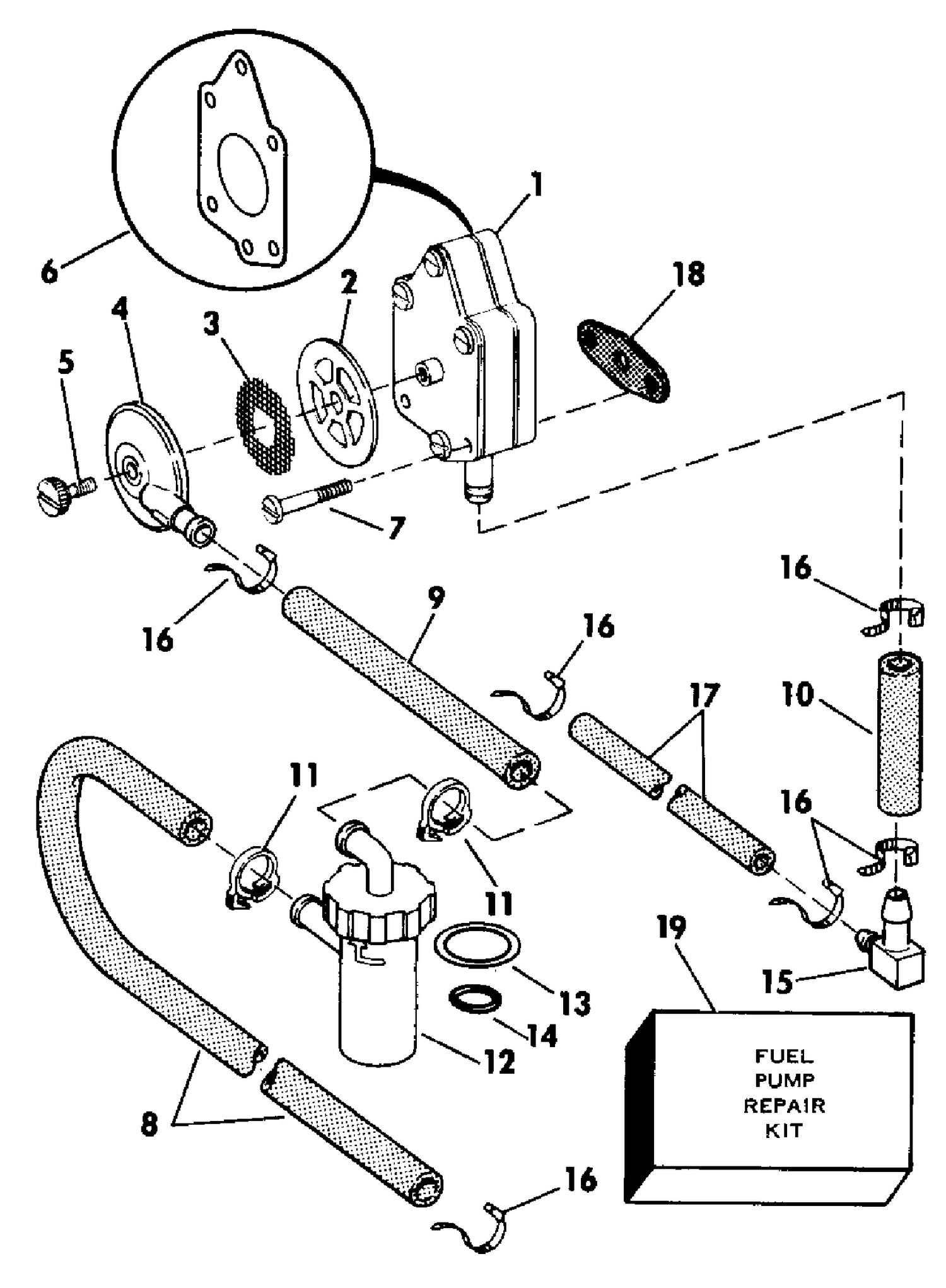

| Ref | Part Number | Description |
|---|
| 1 |
0438556 |
FUEL PUMP ASSY. This part replaces 0432451. |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0332694. |
| 4 |
0330092 |
CAP Filter |
| 6 |
0334640 |
DIAPHRAGM |
| 7 |
0328717 |
NUT, Ground lead |
| 8 |
HOSE, |
Conn. to fuel filter, 10 3/4 in.(273mm) |
| 9 |
HOSE, |
Filter to fuel pump, 6 1/2 in. (165mm) |
| 10 |
HOSE, |
Pump to elbow, 1 1/2 in. (40mm) |
| 12 |
0397715 |
FILTER, Fuel |
| 15 |
0327729 |
ELBOW, Fuel hose |
| 16 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 17 |
HOSE, |
Elbow to carb., 15 in. (381mm) |
| 18 |
0303615 |
GASKET |
