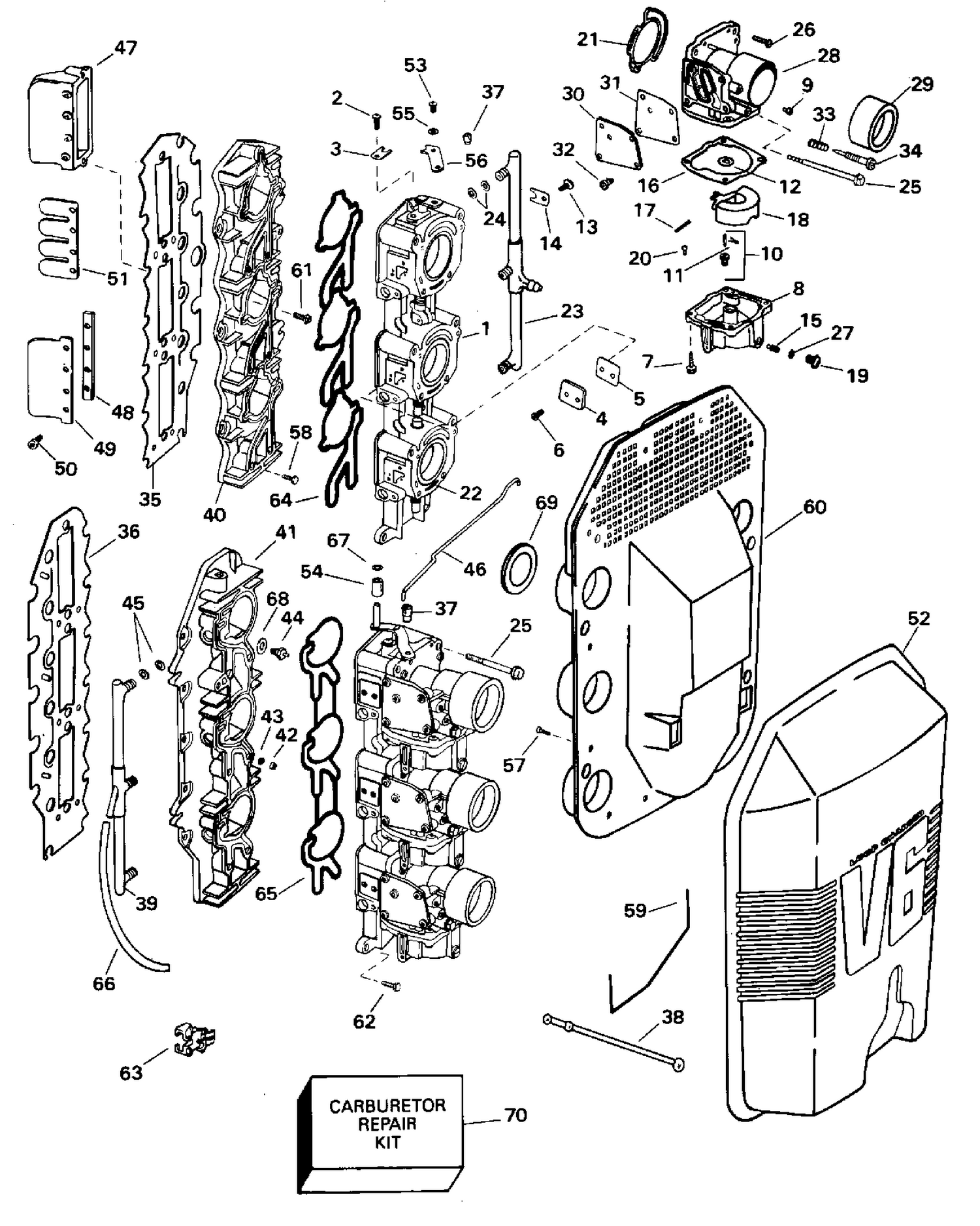

| Ref | Part Number | Description |
|---|
| 11 |
0336842 |
CLIP, SPRING |
| 28 |
0437292 |
CARB. BODY ASSY., 175, 175SL |
| 35 |
0336226 |
GASKET, Manifold to block - Port |
| 36 |
0336227 |
GASKET, Manifold to block - stbd |
| 37 |
0318165 |
DISPOSITIF DE RETENUE, tringlerie de carburateur |
| 39 |
0433521 |
BALANCE TUBE |
| 40 |
0433241 |
INTAKE MANIFOLD Assy, Port |
| 41 |
0433249 |
INTAKE MANIFOLD Assy, Stbd |
| 44 |
0335121 |
FITTING, Primer |
| 46 |
0343269 |
LINK, Port to stbd. carburetor This part replaces 0335256. |
| 47 |
0389823 |
CLAPET |
| 52 |
0437372 |
AIR SILENCER Assy This part replaces 0336094. |
| 53 |
0335739 |
SCREW, Conn. brkt. to mntg. brkt. |
| 54 |
0432639 |
GALET, contre-came |
| 56 |
0335257 |
LEVER, Linkage adjustment |
| 59 |
SEAL, |
Cover |
| 60 |
0437372 |
AIR SILENCER Assy This part replaces 0336093. |
| 62 |
0323626 |
SCREW |
| 63 |
0335729 |
RETAINER, Balance tube |
| 64 |
0335403 |
SEAL, Manifold to carb - port |
| 65 |
0335404 |
SEAL, Manifold to carb - stbd |
| 66 |
HOSE, |
Balance tube drain |
| 67 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 69 |
0336821 |
GASKET, Air Silencer |
| 0436698 |
0439216 |
CARB. ASSY., Stbd., 175GL This part replaces 0436698. |
| 0436699 |
0439215 |
CARB. ASSY., Port, 175GL This part replaces 0436699. |
| 0436935 |
0439216 |
CARB. ASSY., Stbd., 175GL This part replaces 0436935. |
| 0436936 |
0439215 |
CARB. ASSY., Port, 175GL This part replaces 0436936. |
