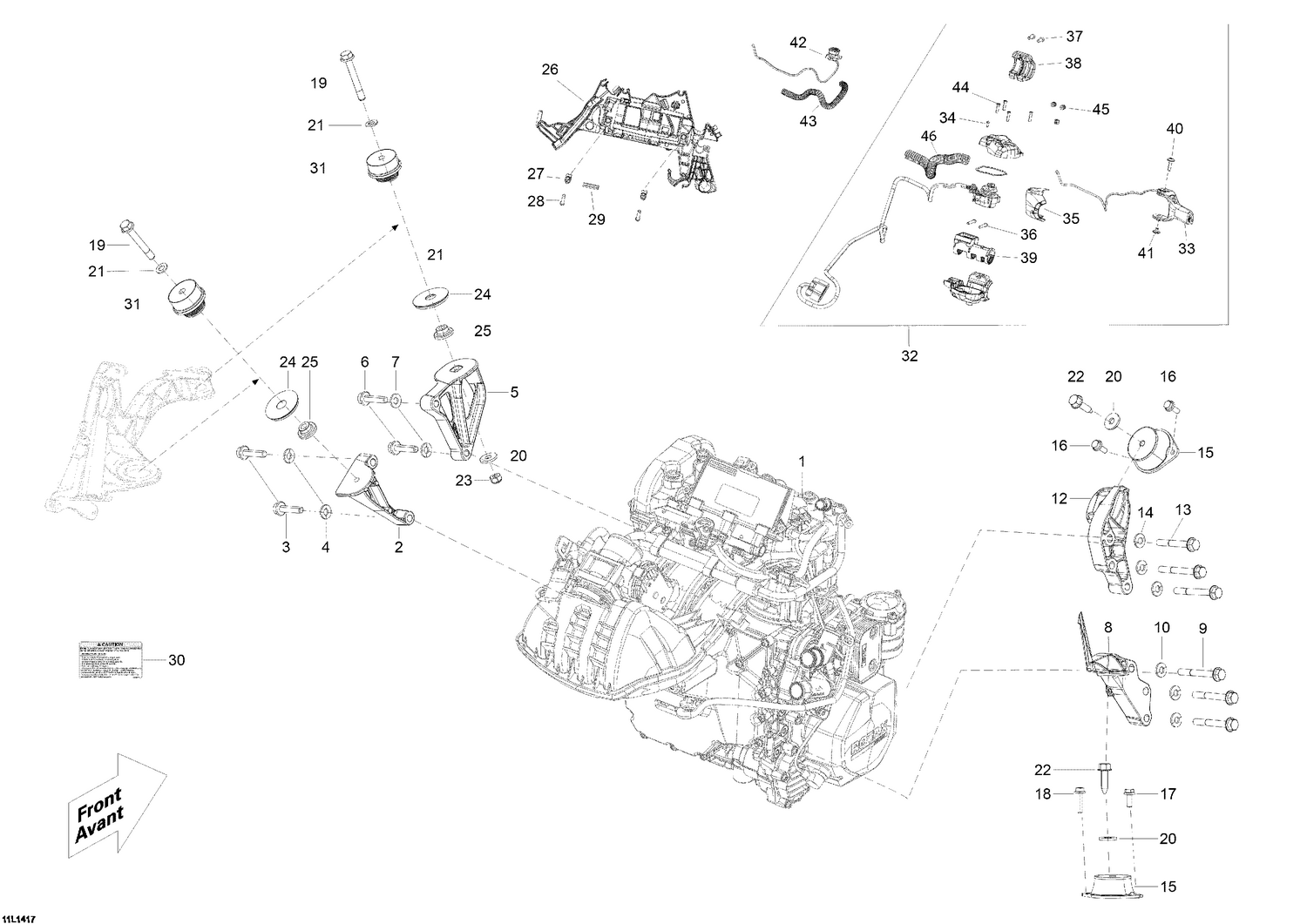

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine 903 ACE |
| 2 |
512061139 |
Rear Support PTO This part replaces 512060660. |
| 3 |
250000986 |
Hex. Flanged Screw M8 X 35 This part replaces 207583586. |
| 4 |
234281474 |
Conical Spring Washer M8 |
| 5 |
512061140 |
Front Support (PTO) This part replaces 512060661. |
| 6 |
250000986 |
Hex. Flanged Screw M8 X 35 This part replaces 207583586. |
| 7 |
234281474 |
Conical Spring Washer M8 |
| 8 |
512061142 |
Rear Support (MAG) This part replaces 512060894. |
| 9 |
207584544 |
Hex. Flange Screw M8 X 45, Scotch Grip |
| 10 |
234281474 |
Conical Spring Washer M8 |
| 12 |
512060663 |
Front Support, MAG |
| 13 |
207584544 |
Hex. Flange Screw M8 X 45, Scotch Grip |
| 14 |
234281474 |
Conical Spring Washer M8 |
| 15 |
512060729 |
Rubber Mount |
| 16 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 17 |
207561644 |
Hex Flange Screw M6 X 16, Scotch Grip |
| 18 |
207562534 |
Hex. Flange Screw M6 X 25, Scotch Grip |
| 19 |
207586044 |
Hex. Flange Screw M8 X 60, Scotch Grip |
| 20 |
503183200 |
Yellow, Washer |
| 21 |
250200008 |
Flat Washer With Teflon 8 mm |
| 22 |
250000639 |
Cone Bolt, M8 x 25 |
| 23 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 24 |
512061536 |
Engine Stopper This part replaces 512060826. |
| 25 |
512060285 |
Spacer |
| 26 |
512060994 |
ECU Support This part replaces 512060808. |
| 27 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 28 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 29 |
271000110 |
Protection trim |
| 30 |
516005521 |
Caution Decal, Checking Engine Oil Level |
| 31 |
512061516 |
Vibration Damper This part replaces 512060295. |
| 32 |
512060901 |
Throttle housing assy |
| 33 |
512060902 |
HANDLE-ASSY |
| 34 |
250000623 |
Torx Screw M2.9 x 9.5 |
| 35 |
512060862 |
CAP |
| 36 |
250000263 |
Torx Screw #8-18 |
| 37 |
250000632 |
Torx screw M5 x 14 |
| 38 |
512060803 |
FRONT HOUSING - Call your local BRP dealership |
| 39 |
512061453 |
Switch Support This part replaces 512060844. |
| 40 |
250000528 |
Torx Screw M5 X 20 |
| 41 |
250000848 |
Screw-Pan Hd.Torx S.Grip Bzn This part replaces 250000624. |
| 42 |
515177362 |
Kill switch |
| 43 |
Not |
Available As Spare Part - Tubing 11 mm. |
| 44 |
250000671 |
Torx Screw This part replaces 250000584. |
| 45 |
293250307 |
SHAFT SEAL |
