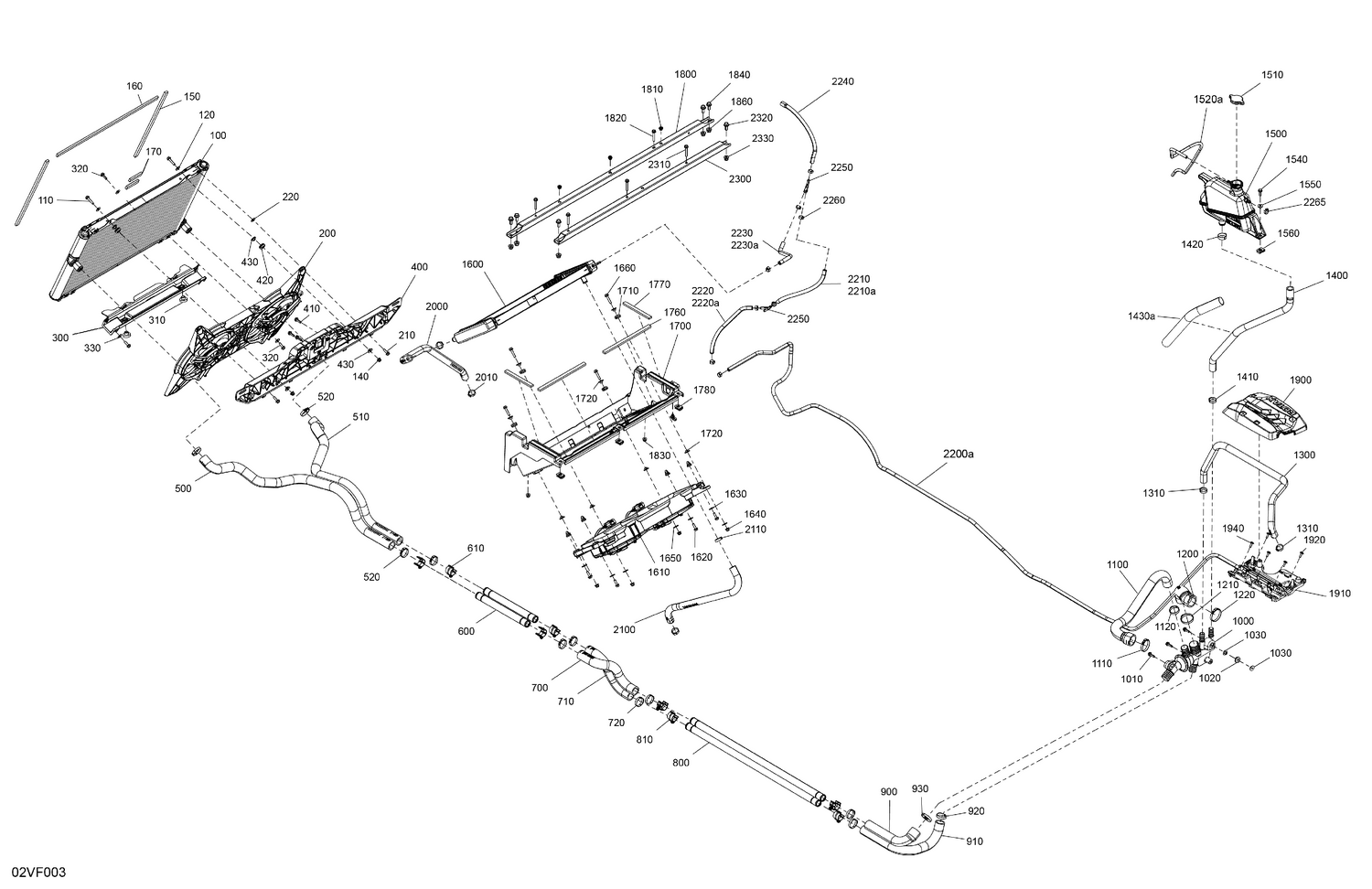

| Ref | Part Number | Description |
|---|
| 100 |
709201058 |
Front Radiator |
| 110 |
207663054 |
Hex. Flange Screw M6 X 30 |
| 120 |
234062670 |
Stainless Steel Flat Washer |
| 140 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 150 |
219704386 |
Seal 3000MM Long |
| 160 |
219704386 |
Seal 3000MM Long |
| 170 |
219704386 |
Seal 3000MM Long |
| 200 |
709201497 |
Cooling Fan Ass'y |
| 210 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 220 |
234062670 |
Stainless Steel Flat Washer |
| 300 |
709201117 |
Front Lower Radiator Support |
| 310 |
709200948 |
Grommet |
| 320 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 330 |
234062670 |
Stainless Steel Flat Washer |
| 400 |
709201109 |
Upper Front Radiator Support |
| 410 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 420 |
293720130 |
Overmolded Grommet |
| 430 |
710004749 |
Shoulder Bushing |
| 500 |
709201643 |
Radiator Hose In |
| 510 |
709201644 |
Radiator Hose Out |
| 520 |
293650332 |
Crimp Clamp |
| 600 |
709201138 |
Tube |
| 610 |
275500963 |
Retainer |
| 700 |
709201503 |
Radiator Hose |
| 710 |
709201504 |
Radiator Hose |
| 720 |
293650332 |
Crimp Clamp |
| 800 |
709200657 |
Heater Tubing |
| 810 |
275500963 |
Retainer |
| 900 |
709201505 |
Thermostat Hose OUT |
| 910 |
709201611 |
Thermostat Hose IN |
| 920 |
293650332 |
Crimp Clamp |
| 930 |
293650254 |
Oetiker Gear Clamp |
| 1000 |
709201612 |
Thermostat Housing |
| 1010 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1020 |
293720130 |
Overmolded Grommet |
| 1030 |
710004749 |
Shoulder Bushing |
| 1100 |
709201508 |
Engine Hose OUT |
| 1110 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 1120 |
293650332 |
Crimp Clamp |
| 1200 |
709201090 |
Engine Hose IN |
| 1210 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 1220 |
293650322 |
Crimp Clamp |
| 1300 |
709201083 |
Hose |
| 1310 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 1400 |
709201463 |
Coolant Tank Hose |
| 1410 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 1420 |
293650165 |
Oetiker Gear Clamp |
| 1430a |
219704402 |
Tubing 25 MM 1000MM Long |
| 1500 |
709201003 |
Coolant Tank |
| 1510 |
709200207 |
Radiator Pressure Cap |
| 1520a |
219704389 |
Polyurethane Hose 4000MM Long |
| 1540 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1550 |
250200164 |
Flat washer M6 |
| 1560 |
250100208 |
Panel Nut M6 X 1.0 |
| 1600 |
709201075 |
Rear Radiator |
| 1610 |
709201074 |
Cooling Fan Ass'y |
| 1620 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1630 |
250200082 |
Flat Washer |
| 1640 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 1650 |
250200082 |
Flat Washer |
| 1660 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 1700 |
709201110 |
RH Rear Radiator Support |
| 1710 |
293720130 |
Overmolded Grommet |
| 1720 |
710004749 |
Shoulder Bushing |
| 1760 |
219704386 |
Seal 3000MM Long |
| 1770 |
219704386 |
Seal 3000MM Long |
| 1780 |
250100208 |
Panel Nut M6 X 1.0 |
| 1800 |
709201218 |
Square Tube |
| 1810 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 1820 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 1830 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 1840 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 1860 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1900 |
705016102 |
Cover |
| 1910 |
705016032 |
Hose Support |
| 1920 |
250000959 |
Screw PT Type K-50 X 16 |
| 1940 |
250000959 |
Screw PT Type K-50 X 16 |
| 2000 |
709201084 |
Hose |
| 2010 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 2100 |
709201086 |
Hose |
| 2110 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 2200a |
219704547 |
Hose 6,35 Mm Id 4000Mm Long |
| 2210a |
XXX |
Not Available As Spare Parts |
| 2220a |
XXX |
Not Available As Spare Parts |
| 2230a |
XXX |
Not Available As Spare Parts |
| 2240 |
709201234 |
Coolant Tank Hose |
| 2250 |
293710059 |
Y-Fitting |
| 2260 |
293650025 |
Oetiker Gear Clamp |
| 2265 |
293650140 |
Oetiker Clamp |
| 2300 |
709201220 |
Square Tube |
| 2310 |
207664044 |
Hex. Flange Screw M6 X 40 |
| 2320 |
207682044 |
Hex. Flange Screw M8 X 20 |
