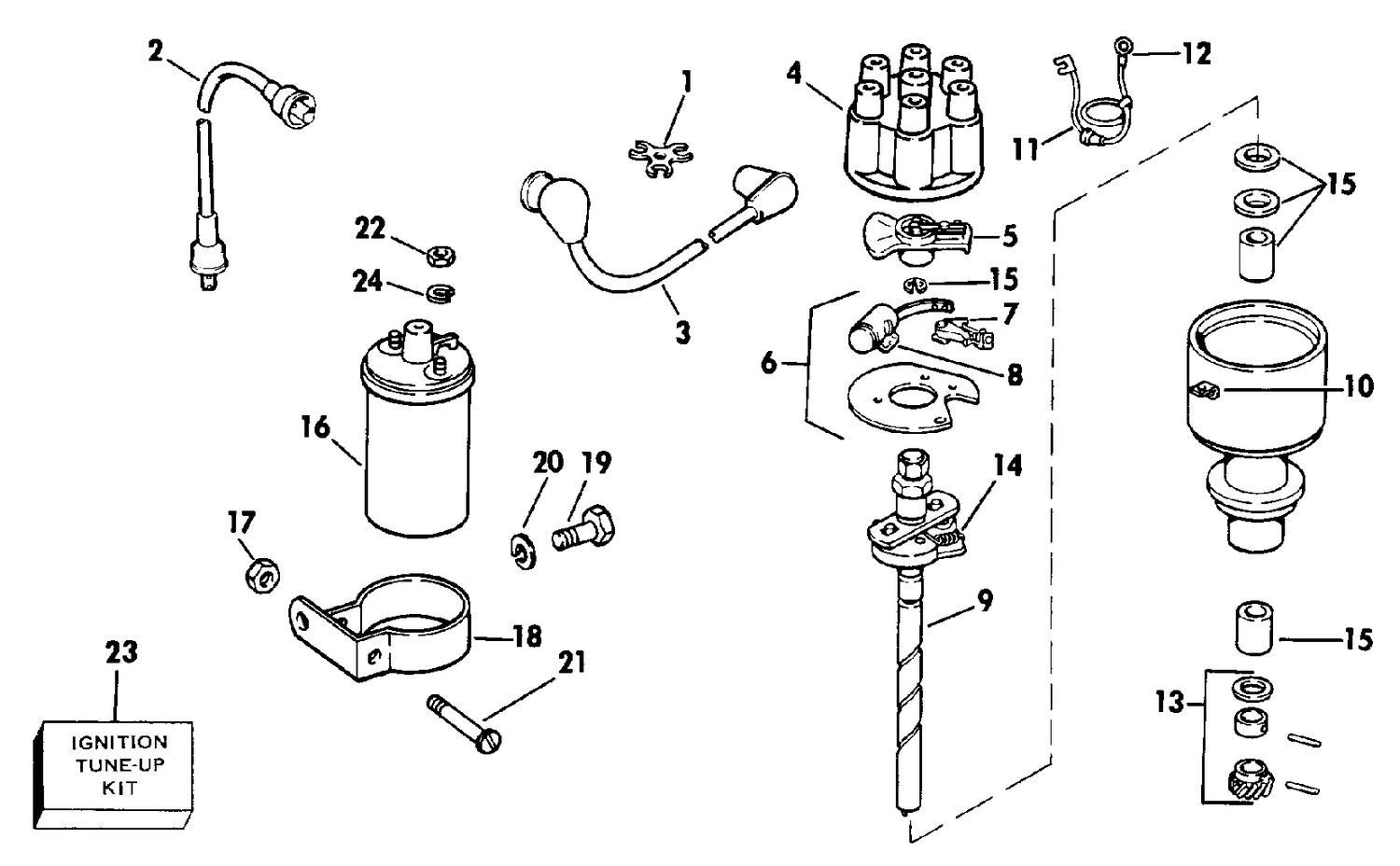

| Ref | Part Number | Description |
|---|
| 1 |
3852492 |
RETAINER, 3 wire This part replaces 0910231. |
| 2 |
0981660 |
LEAD ASST, Distributor to coil |
| 3 |
0981782 |
LEAD ASSY, Cylinders 5 & 6 |
| 3 |
0981783 |
LEAD ASSY, Cylinder 3 & 4 |
| 3 |
0981785 |
LEAD ASSY, Cylinder 1 & 2 |
| 4 |
3853814 |
Cap Ay This part replaces 0984398. |
| 5 |
3853801 |
ROTOR This part replaces 0982880. |
| 6 |
0980895 |
PLATE ASSY |
| 7 |
0980893 |
CON SET, Brkr |
| 8 |
0980894 |
CONDENSER |
| 9 |
0984397 |
SHAFT, GOVERNOR & CAM ASSY |
| 10 |
3853812 |
BRACKET This part replaces 0984063. |
| 11 |
0983457 |
LEAD ASSY |
| 13 |
3853888 |
GEAR, Collar & parts pkg. This part replaces 0982337. |
| 14 |
0984399 |
SPRING SET |
| 15 |
3853795 |
BEARING This part replaces 0982335. |
| 16 |
3852217 |
COIL ASSY. Ignition This part replaces 0383444. |
| 17 |
0308335 |
CLAMP, Coil |
| 18 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 19 |
0306414 |
SCREW |
| 19 |
0306834 |
BOLT, Throttle lever retainer |
| 20 |
0120177 |
L'WASHER, Alternator to brkt |
| 21 |
0306519 |
SCR,Coil clamp |
| 23 |
0173829 |
IGNITION TUBE-UP KIT, Prestolite |
| 0984400 |
0986060 |
DISTRIBUTOR ASSY. This part replaces 0984400. |
