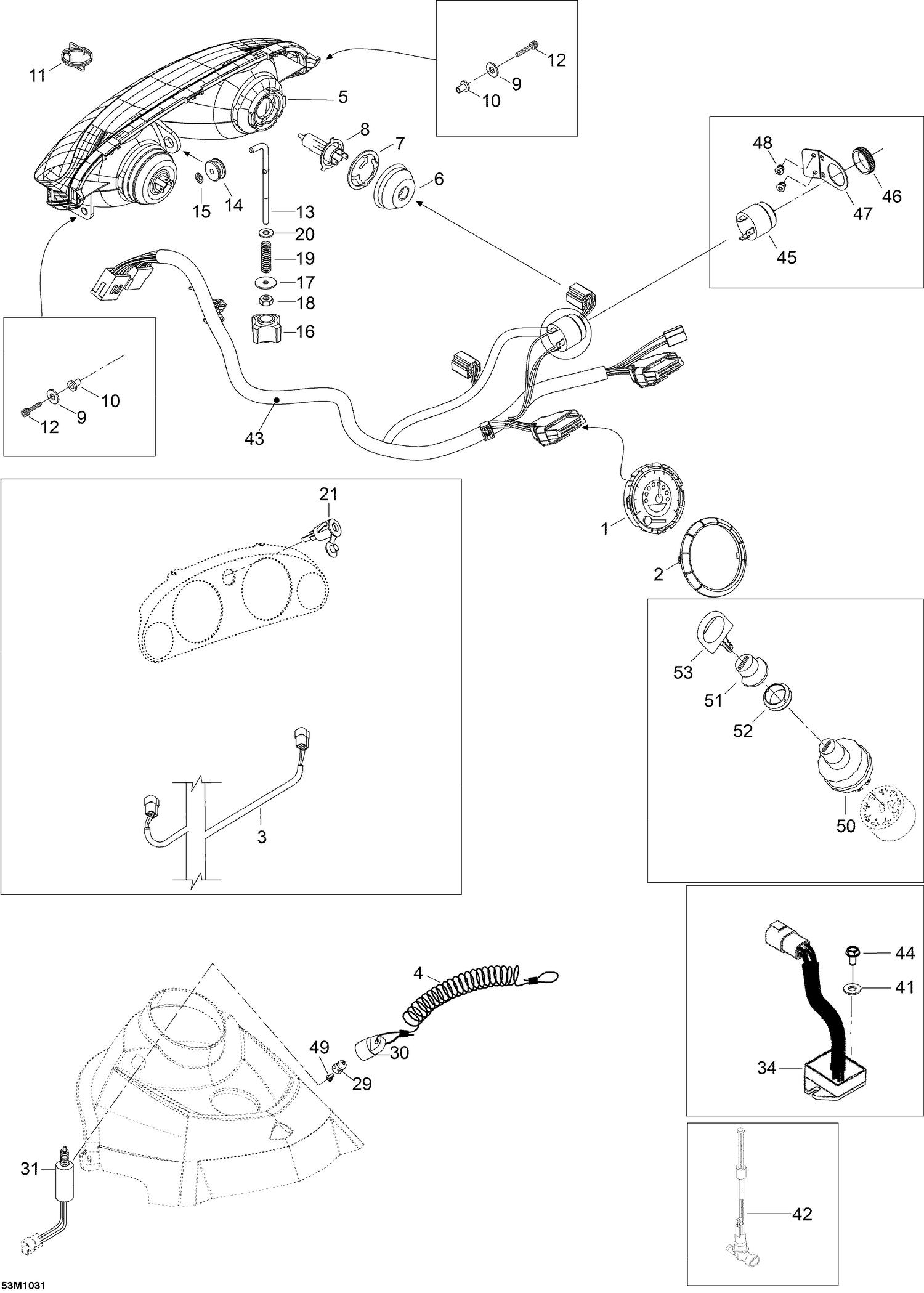

| Ref | Part Number | Description |
|---|
| 1 |
515176476 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
605353266 |
STEERING HARNESS - Call your local BRP dealership |
| 4 |
515178283 |
Cap Ass'y This part replaces 515176463. |
| 6 |
515175911 |
COVER - Call your local BRP dealership |
| 7 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 8 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 9 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 10 |
250100018 |
NUT M5 - Call your local BRP dealership |
| 11 |
M5447238 |
SPRING - Call your local BRP dealership |
| 12 |
M40235 |
Screw M5X35 |
| 13 |
605450023 |
ADJUSTER ROD - Call your local BRP dealership |
| 14 |
415100800 |
Grommet - Call your local BRP dealership |
| 15 |
732610072 |
Push Nut |
| 16 |
515175548 |
Handle - Call your local BRP dealership |
| 17 |
M20038 |
WASHER - Call your local BRP dealership |
| 18 |
232561414 |
Elastic Stop Nut M6 |
| 19 |
415100600 |
SPRING - Call your local BRP dealership |
| 20 |
234061410 |
Flat Washer 6 mm |
| 21 |
710001248 |
DC Outlet |
| 29 |
515145900 |
Switch Nut |
| 30 |
605454413 |
SLEEVE - Call your local BRP dealership |
| 31 |
515175653 |
Brake Switch This part replaces 515176525. |
| 34 |
515176189 |
Voltage Regulator |
| 41 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 42 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 43 |
605355301 |
WIRING HARNESS ASSY - Call your local BRP dealership |
| 44 |
M40322 |
Screw |
| 45 |
414792102 |
Back-Up Alarm |
| 46 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 47 |
M5447941 |
Holder |
| 48 |
36005 |
Rivet This part replaces M36005. |
| 49 |
570151100 |
Plunger Cap |
| 50 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership |
| 51 |
570013700 |
Switch Boot |
| 52 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 53 |
415129350 |
BLANK KEY - Call your local BRP dealership |
