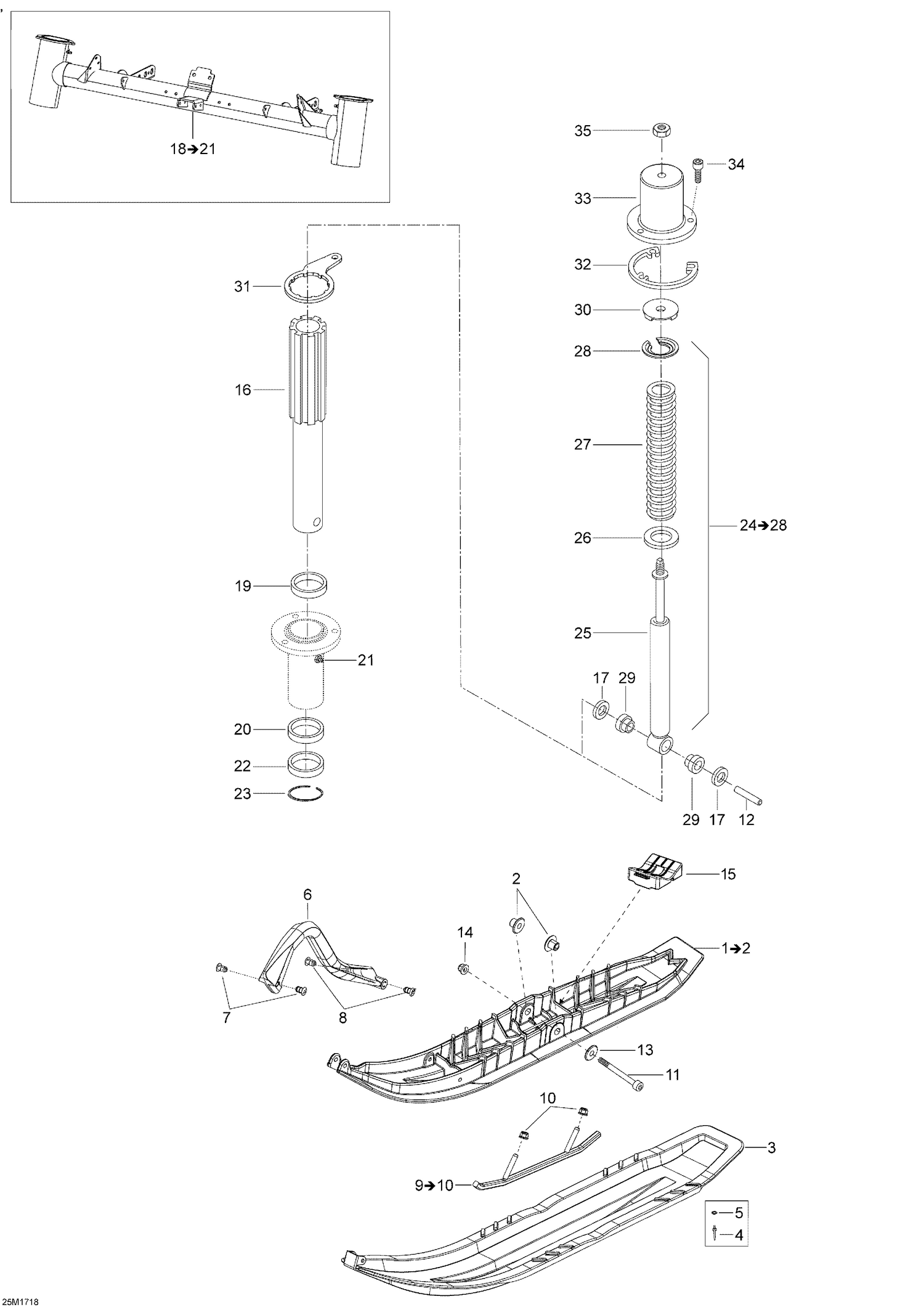

07- Front Suspension And Ski
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 505071781 | Ski Bushing |
| 6 | 505072976 | Black, Handle |
| 7 | 505071812 | Retainer 17mm long |
| 8 | 505072133 | Retainer 23mm Long |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 12 | 505073209 | Ski Axle |
| 13 | 732900049 | Washer |
| 14 | 233201414 | Hex. Flange Elastic Nut M10 |
| 15 | 505072594 | Ski Stopper |
| 16 | 505073200 | Ski Leg |
| 17 | 505072579 | Spacer |
| 19 | 414803100 | Upper Cushion |
| 20 | 414803200 | Lower Cushion |
| 21 | 408200700 | Grease Fitting |
| 22 | 505072696 | Seal Oil |
| 23 | 505072698 | Circlip |
| 25 | 505073046 | Shock |
| 26 | 505072578 | Washer |
| 27 | 505072745 | Black, Spring |
| 28 | 505072619 | Spring Stopper |
| 29 | 572034500 | Cushion |
| 30 | 605354835 | Rubber Bumber |
| 31 | 505073823 | Steering Arm |
| 32 | 505073983 | Spacer |
| 33 | 505072874 | Suspension Cover LH |
| 33 | 505072875 | Suspension Cover RH |
| 34 | 205082044 | Socket Head Screw M8 X 20 |
