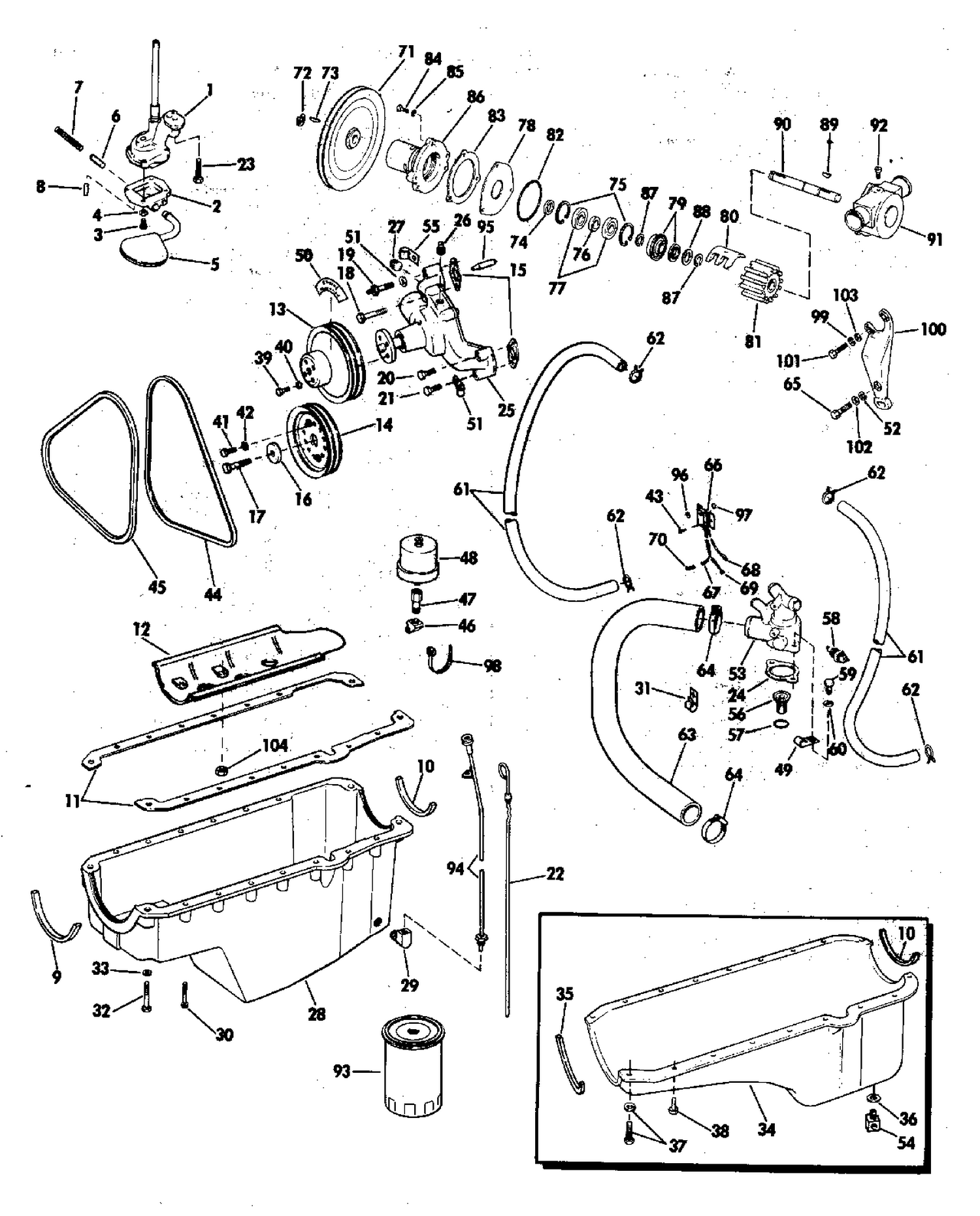

| Ref | Part Number | Description |
|---|
| 1 |
3764547 |
OIL PUMP ASSEMBLY |
| 2 |
3836980 |
COVER, Pump |
| 3 |
0133043 |
BOLT, Cover to pump |
| 4 |
9421423 |
LOCKWASHER, Switch attach |
| 5 |
3764113 |
PICK-UP SCREEN |
| 6 |
3702366 |
VALVE, Pressure regulator |
| 7 |
3814903 |
SPRING, Regulator valve |
| 8 |
0103677 |
PIN, Pressuer regulator |
| 9 |
0909028 |
SEAL, Front |
| 10 |
0458625 |
SEAL, Rear |
| 11 |
0982592 |
GASKET SET, Oil pan |
| 12 |
3927136 |
BAFFLE, Oil pan |
| 13 |
3927796 |
PULLEY, Water pump |
| 14 |
3744043 |
PULLEY, Crankshaft |
| 15 |
0909852 |
GASKET, Port |
| 15 |
3754587 |
GASKET, Pump to block |
| 15 |
3852477 |
GASKET, Pump to block This part replaces 0909835. |
| 16 |
3739422 |
WASHER |
| 17 |
9428643 |
BOLT |
| 18 |
0454906 |
BOLT, Manifold, holes #1 & 2 left side, holes #5 & 6 right side |
| 19 |
3759755 |
STUB, Water pump, lower (RH) |
| 20 |
0454908 |
BOLT, Washer pump, lower (rh) |
| 21 |
0454467 |
BOLT, Manifold to head (#1,#2) |
| 22 |
3865665 |
GAUGE, Oil level |
| 23 |
3892678 |
BOLT, Hex, oil pump to block |
| 24 |
3701777 |
GASKET, Nipple to hsg |
| 25 |
3853850 |
WATER PUMP ASSY. This part replaces 0980477. |
| 26 |
0103869 |
PLUG, 3/4" |
| 27 |
0444746 |
PLUG, 1/2-1/4 |
| 28 |
0910329 |
OIL PAN |
| 29 |
0908648 |
ELBOW, Oil drain |
| 31 |
0316993 |
CLAMP, Batter cable |
| 32 |
0316817 |
SCREW, Pan corner 5/16-18 x 2" |
| 32 |
0550983 |
SCREW, Pan corner 5/16-18 x 1-3/4 |
| 33 |
0306371 |
WASHER |
| 34 |
0984477 |
OIL PAN This part replaces 0910742. |
| 35 |
0909028 |
SEAL, Front |
| 37 |
0180075 |
SCREW |
| 38 |
3817006 |
BOLT, Camshaft sprocket |
| 39 |
0306861 |
SCREW |
| 41 |
0306865 |
SCREW, Crankshaft pulley |
| 42 |
0120177 |
L'WASHER, Alternator to brkt |
| 43 |
0317753 |
SCREW |
| 44 |
0311046 |
BELT |
| 45 |
0912714 |
BELT, Power steering This part replaces 0909818. |
| 46 |
0121891 |
ELBOW |
| 47 |
3855776 |
ADAPTER, Oil sender This part replaces 0121688. |
| 48 |
3853800 |
OIL PRESSURE SENDER This part replaces 0172127. |
| 50 |
0316008 |
TRANSFER, Rotation |
| 50 |
0316009 |
TRANSFER, Rotation |
| 51 |
0316993 |
CLAMP, Batter cable |
| 52 |
0120177 |
L'WASHER, Alternator to brkt |
| 53 |
0910178 |
THERMOSTAT HOUSING |
| 54 |
0908484 |
ELBOW OIL DRAIN PAN |
| 55 |
3852458 |
CLAMP, Oil drain tube This part replaces 0908924. |
| 56 |
0383307 |
TERMOSTAT ASSEMBLY |
| 58 |
0171960 |
SENDER, Water temperature |
| 59 |
0306414 |
SCREW |
| 60 |
0120177 |
L'WASHER, Alternator to brkt |
| 61 |
0909230 |
HOSE, Thermo housing manifold |
| 62 |
0912627 |
CLAMP This part replaces 0313851. |
| 63 |
0312781 |
HOSE, Housing to water pump |
| 65 |
0130538 |
SCREW, Bracket to end |
| 66 |
0383440 |
BOLTAGE REG CABLE ASSY |
| 71 |
0982297 |
PULLEY ASSY |
| 72 |
0121599 |
BOWED "E" RING |
| 73 |
0910129 |
KEY, Pulley to shaft |
| 74 |
0910127 |
SPACER, Puller to brg (1) |
| 75 |
0548323 |
RETAINING RING |
| 76 |
0910126 |
SPACER, Bearing |
| 77 |
0982299 |
BEARING |
| 78 |
3854295 |
END PLATE This part replaces 0910131. |
| 79 |
0982298 |
SEAL & SEAT ASSY |
| 80 |
0910130 |
CAM, Impeller |
| 81 |
0910132 |
IMPELLER |
| 82 |
3854293 |
O-RING, Housing This part replaces 0909694. |
| 83 |
3854296 |
GASKET, Plate to body This part replaces 0910134. |
| 84 |
3854297 |
SCREW, Body to hsg. This part replaces 0910135. |
| 85 |
3854292 |
LOCK WASHER, Screw to hsg. This part replaces 0304145. |
| 86 |
0910123 |
BODY |
| 87 |
0910121 |
RETAINING RING |
| 88 |
0910122 |
THRUST WASHER, Seal |
| 89 |
3854294 |
KEY, Impeller This part replaces 0910120. |
| 90 |
0910125 |
SHAFT |
| 91 |
0910118 |
HOUSING |
| 92 |
0910119 |
SCREW, Cam |
| 93 |
0502901 |
OIL FILTER This part replaces 0173233. |
| 94 |
0981396 |
TUBE ASSY, Oil drain |
| 94 |
0981944 |
TUBE ASSY, Oil drain |
| 94 |
0984569 |
TUBE ASSY., Oil drain This part replaces 0981397. |
| 95 |
0310956 |
DRIVE PIN |
| 97 |
0306358 |
FLAT WASHER, Helm mounting |
| 99 |
0120255 |
LOCKWASHER |
| 100 |
0909815 |
BRACKET, Water pump |
| 101 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 102 |
0103988 |
WASHER, Bracket to engine, upper |
| 0981939 |
0981939 |
WATER PUMP ASSEMBLY |
