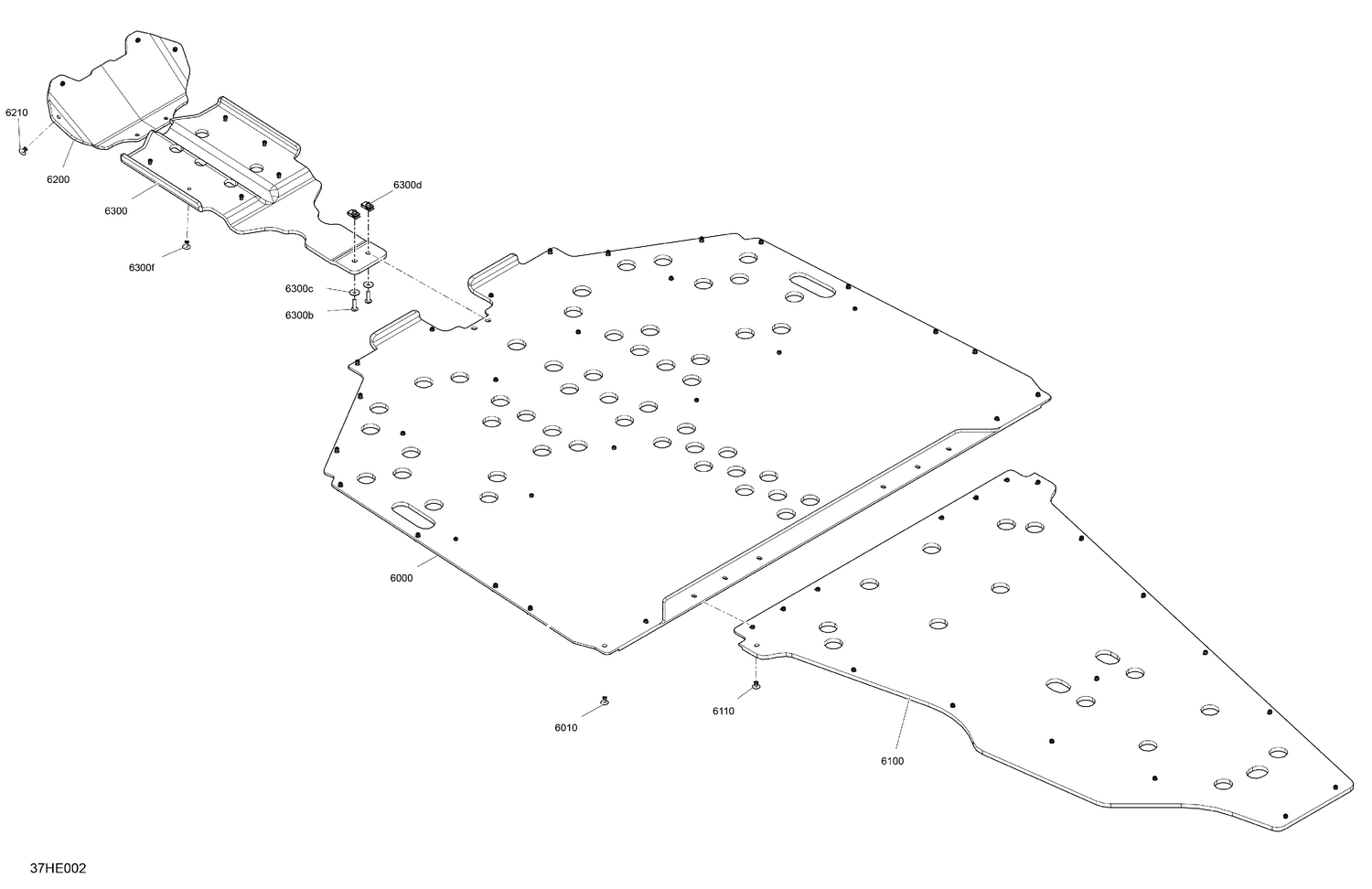

07- Body - Skid Plate
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 6000 | 705016870 | Central Skid Plate |
| 6010 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 6100 | 705016687 | Rear Skid Plate |
| 6110 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 6200 | 705012826 | Front Deflector |
| 6210 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 6300 | 705013047 | Front Skid Plate |
| 6300b | 250000807 | Torx Truss Screw M6 X 25 |
| 6300c | 250200040 | Flat Washer |
| 6300d | 250100198 | Panel Nut M6 X 1.0 |
