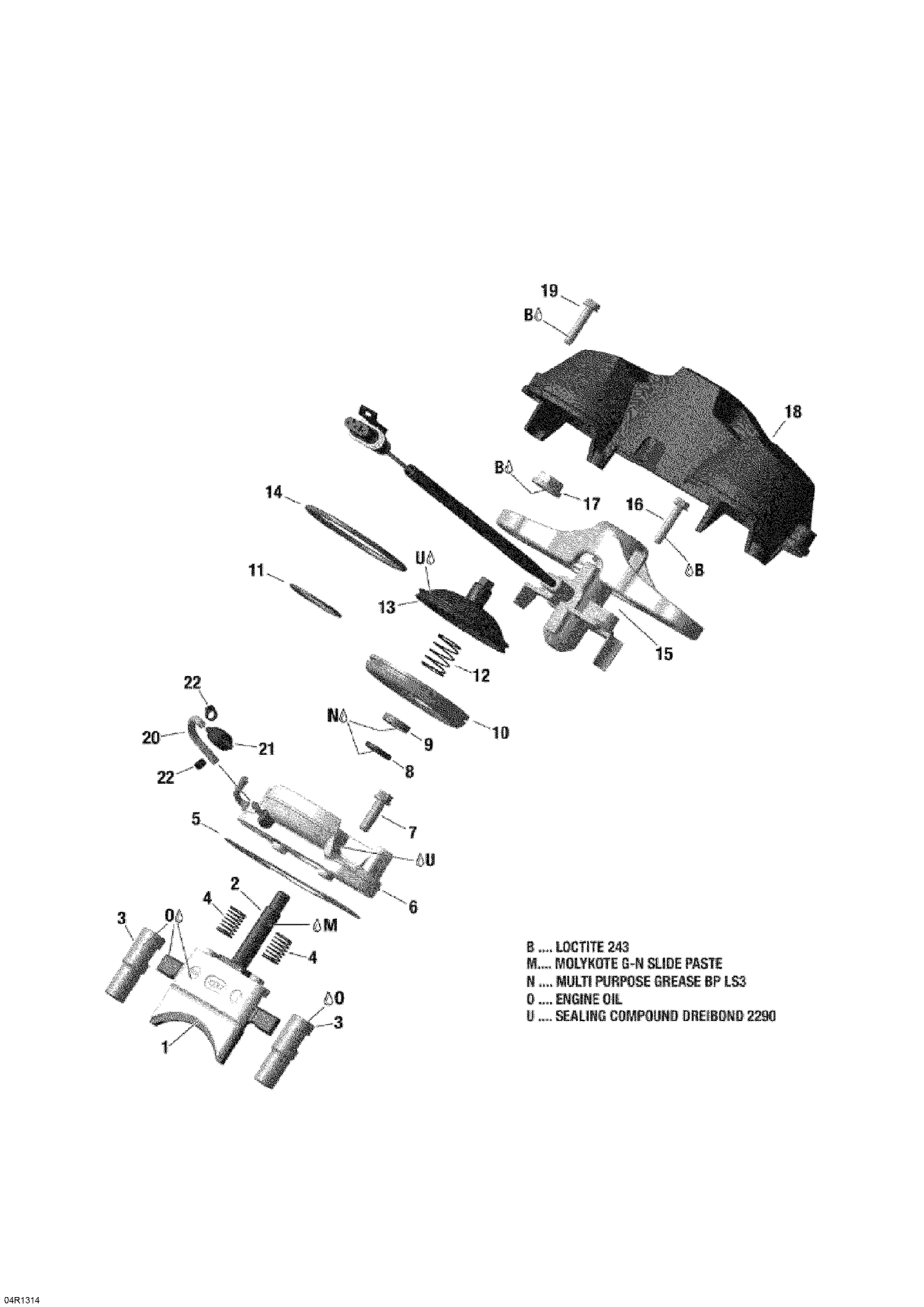

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| M |
Not |
Available As Spare Part - Molykote G-N, 50g |
| N |
Not |
Available As Spare Part - Multipurpose Grease BP LS3 |
| O |
Not |
Available As Spare Part - Engine Oil |
| 1 |
420854900 |
Upper Exhaust Valve |
| 2 |
420854904 |
Lower Exhaust Valve This part replaces 420854909. |
| 3 |
420854890 |
Exhaust Valve |
| 4 |
420238558 |
Spring This part replaces 420238556. |
| 6 |
420854888 |
Valve Housing |
| 10 |
420260725 |
Bellows |
| 11 |
420838255 |
Hose Spring |
| 12 |
420238557 |
Spring |
| 13 |
420854442 |
Valve Cover |
| 14 |
420939286 |
Hose Spring This part replaces 420939285. |
| 15 |
420854089 |
Position Sensor With Valve Bar This part replaces 420854088. |
| 18 |
420910821 |
Rave Cover This part replaces 420910820. |
| 20 |
414413800 |
Oil Hose |
| 21 |
420956515 |
Check Valve Ass’y This part replaces 404160200. |
| 22 |
420851508 |
Clamp |
