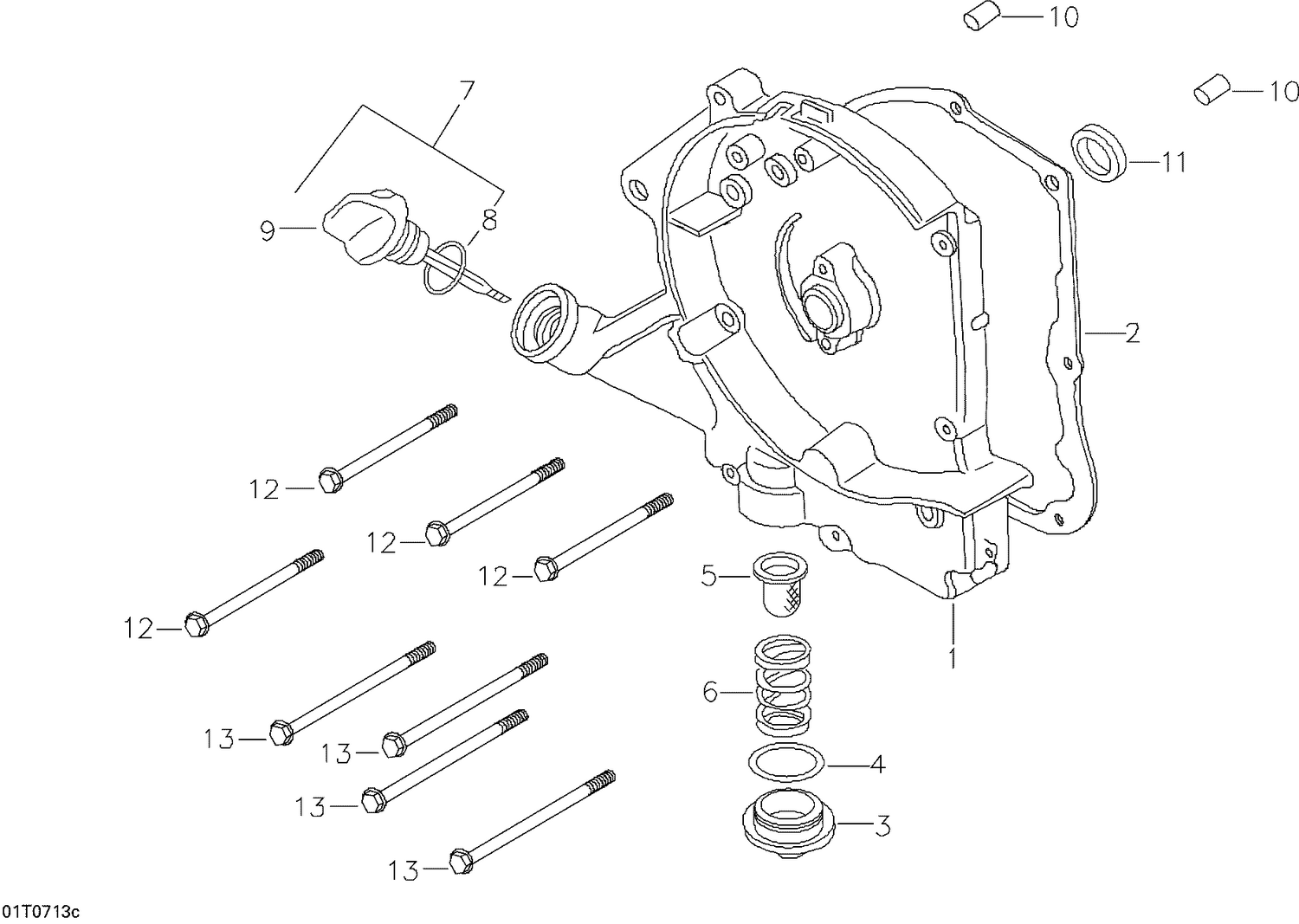

01- Crankcase Cover, Right
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A11330133000 | RH Crankcase Cover |
| 2 | A11393133000 | CRANKCASE GASKET - Call your local BRP dealership |
| 3 | A12361120000 | TAPPET ADJUSTING HOLE CAP ASS'Y - Call your local BRP dealership |
| 4 | A91330120000 | OIL RING, 30.8 MM - Call your local BRP dealership |
| 5 | A15421120000 | OIL FILTER SCREEN - Call your local BRP dealership |
| 6 | A15426120000 | OIL FILTER SPRING - Call your local BRP dealership |
| 7 | A1565A120000 | OIL LEVEL GAUGE - Call your local BRP dealership |
| 8 | A91318108000 | OIL RING - Call your local BRP dealership |
| 10 | A9430108140 | Dowel Pin |
| 11 | A9650016305 | OIL RING - Call your local BRP dealership |
| 12 | A960000608508 | Hexagonal Washer Face Bolt |
