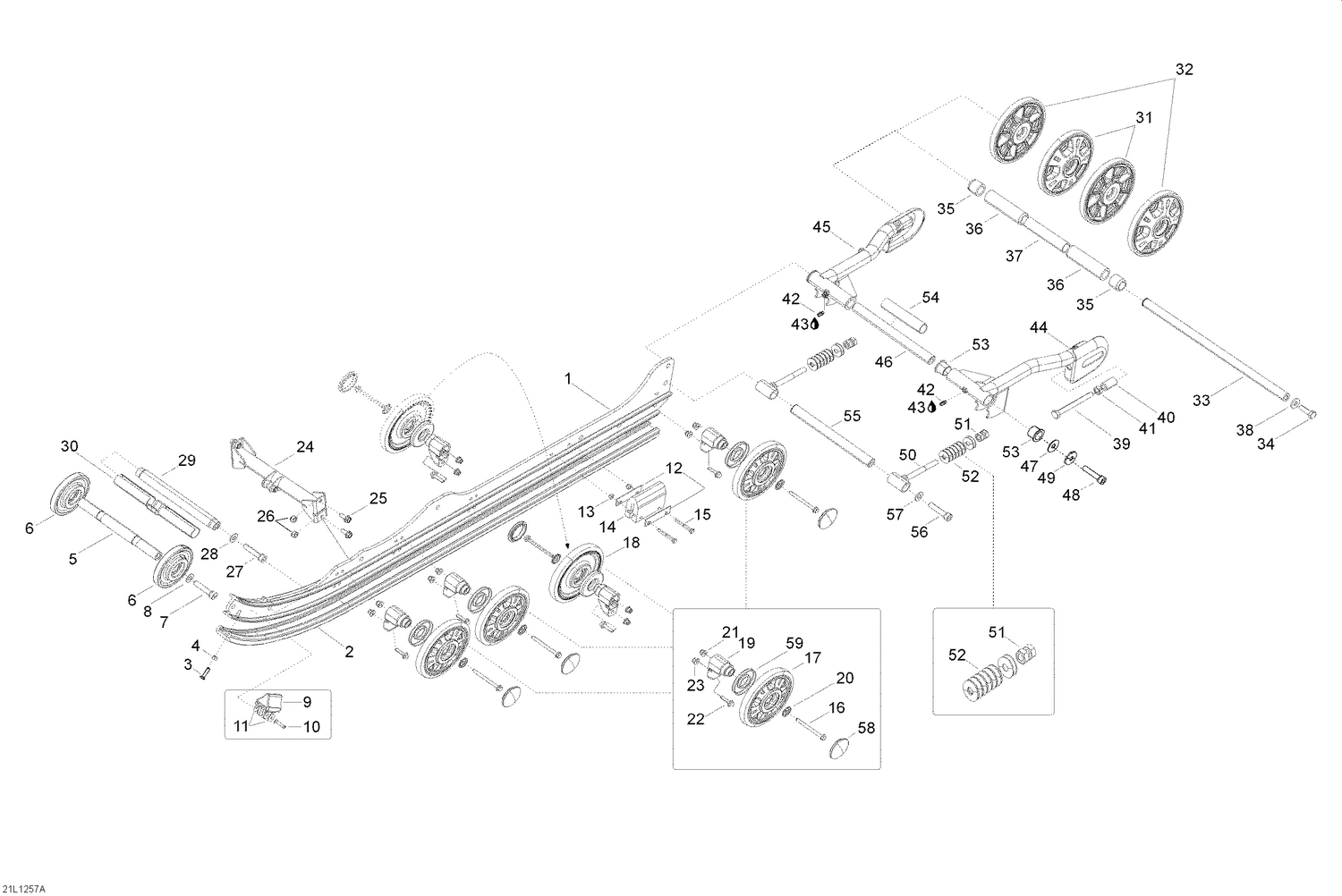

08- Rear Suspension
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192888 | Runner PPS 500 |
| 2 | 503192843 | Slider Shoe |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 33010 | Lock Nut M6 (1=10Pcs) |
| 5 | 503192889 | Front Wheel Shaft |
| 6 | 503192611 | Black, Wheel Ass'y, 100 mm |
| 7 | 205504544 | Socket Screw |
| 8 | 234001410 | Flat Washer 10 mm |
| 9 | 503192106 | Rubber Stopper |
| 10 | 293150142 | Pop Rivet 3/16" |
| 11 | 503191273 | Washer |
| 12 | 548387 | Support plate - Call your local BRP dealership |
| 13 | 33010 | Lock Nut M6 (1=10Pcs) |
| 14 | 570023100 | Rubber Stopper |
| 15 | 207064044 | Hex. Screw M6 X 40 |
| 16 | 250001027 | Hex. Flanged Screw M6 X 70 This part replaces 250000475. |
| 17 | 503191622 | Wheel 141 mm Ass'y, Full Moon |
| 18 | 503191316 | Wheel 141 Ass'y |
| 19 | 503193894 | Casted Support This part replaces 503193082. |
| 20 | 503191820 | Wheel Cup M6 |
| 21 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 22 | 250000522 | Hex Flanged Screw M6 x 25 |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 24 | 503192739 | Lower Support, Center Shock |
| 25 | 207602587 | Screw M10 x 25 |
| 26 | 232500416 | Elastic Stop Nut M10 |
| 27 | 205504544 | Socket Screw |
| 28 | 234001410 | Flat Washer 10 mm |
| 29 | 503192927 | Shaft |
| 30 | 605355263 | Retainer Strap |
| 31 | 503192140 | Wheel 165, Black |
| 32 | 503192130 | Wheel 165 White |
| 33 | 503191408 | Rear Axle |
| 34 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 35 | 503192048 | Spacer |
| 36 | 503192671 | Spacer |
| 37 | 605448429 | Sleeve |
| 38 | 503190439 | Washer |
| 39 | 40239 | Screw Hex M10 X 100 |
| 40 | 503192696 | Spacer |
| 41 | 232006414 | Hex. Nut M10 |
| 42 | 408200700 | Grease Fitting |
| 43 | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 44 | 503192053 | Extension Swing LH |
| 45 | 503192054 | Extension Swing RH |
| 46 | 5347713 | Shaft |
| 47 | 20116 | Shim 10,5/30X1,5 ZNE |
| 48 | 205504547 | Screw M10 X 45 |
| 49 | 512056700 | Lock Washer |
| 50 | 503192695 | Adjustment Screw |
| 51 | 232006414 | Hex. Nut M10 |
| 52 | 25004 | Cup Spring |
| 53 | 31024 | Cushion |
| 54 | 605448429 | Sleeve |
| 55 | 5347717 | Shaft |
| 56 | 205504547 | Screw Socket M10 X 45 |
| 57 | 234001410 | Flat Washer 10 mm |
